Description

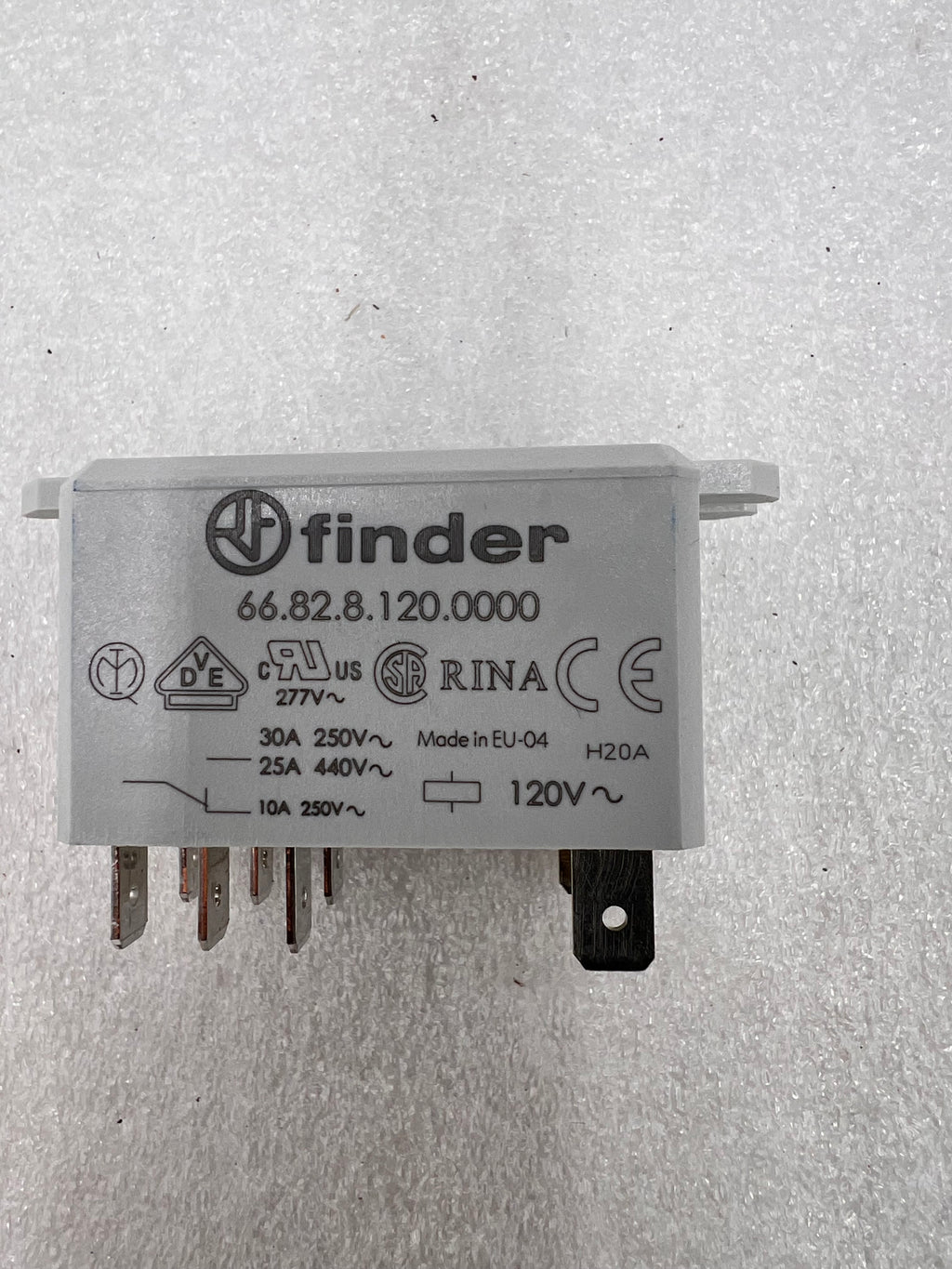

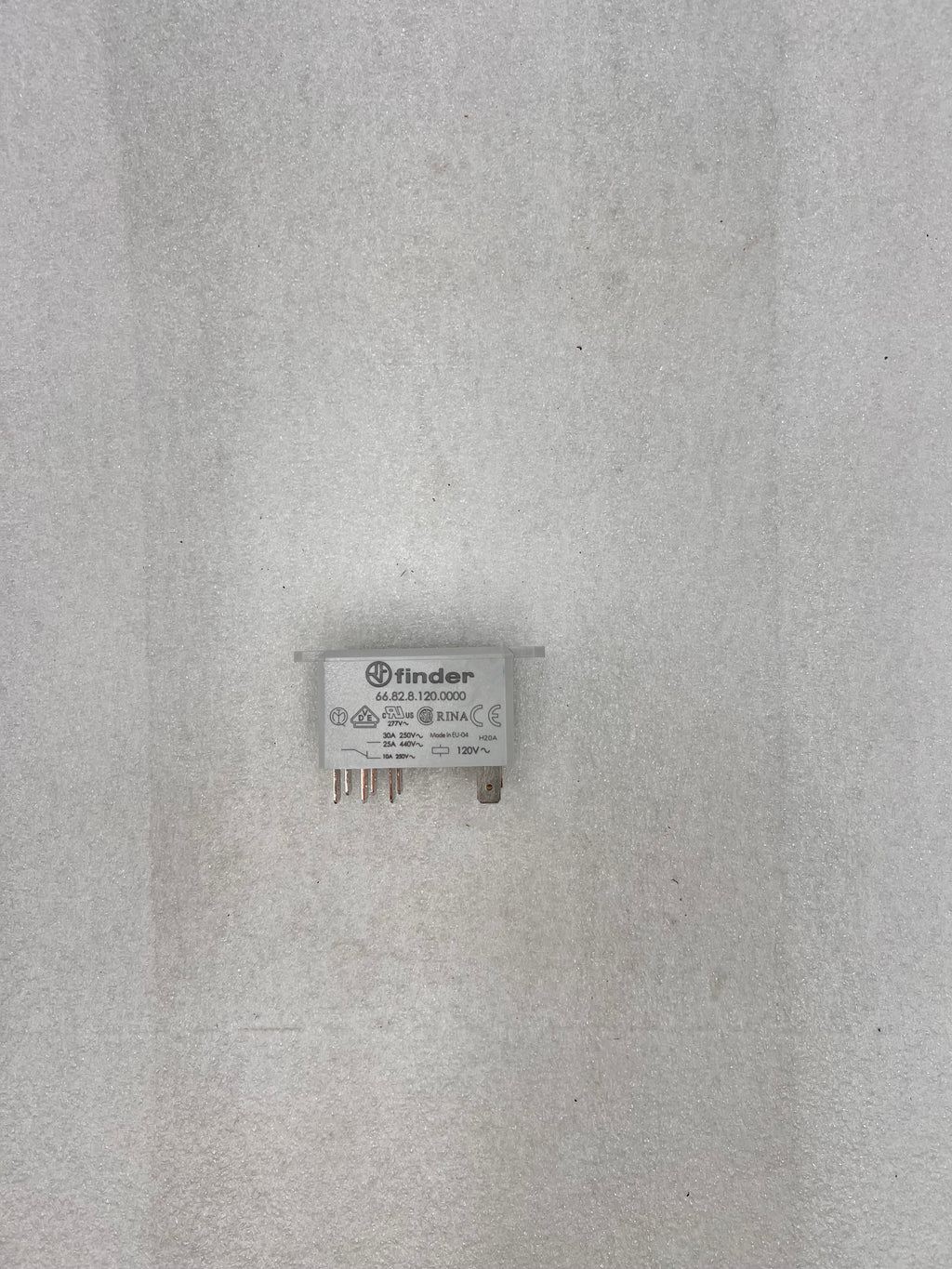

The 66.82.8.120.0000 is a General Purpose Relay manufactured by Finder Relays, Inc. It features a DPDT (2 Form C) contact configuration, with a 120VAC coil and a 30A contact rating. Here are some key specifications:
- Mounting Type: Chassis Mount
- Switching Voltage: Up to 440VAC
- Max Switching Load: 13200VA
- Coil Current: 30 mA
- Termination Style: Quick Connect (0.250" / 6.3mm)
- Operating Temperature: -40°C to 70°C
- Contact Material: Silver Cadmium Oxide (AgCdO)
- Certifications: CE, CSA, cURus, EAC, RINA, UKCA, VDE
