Description

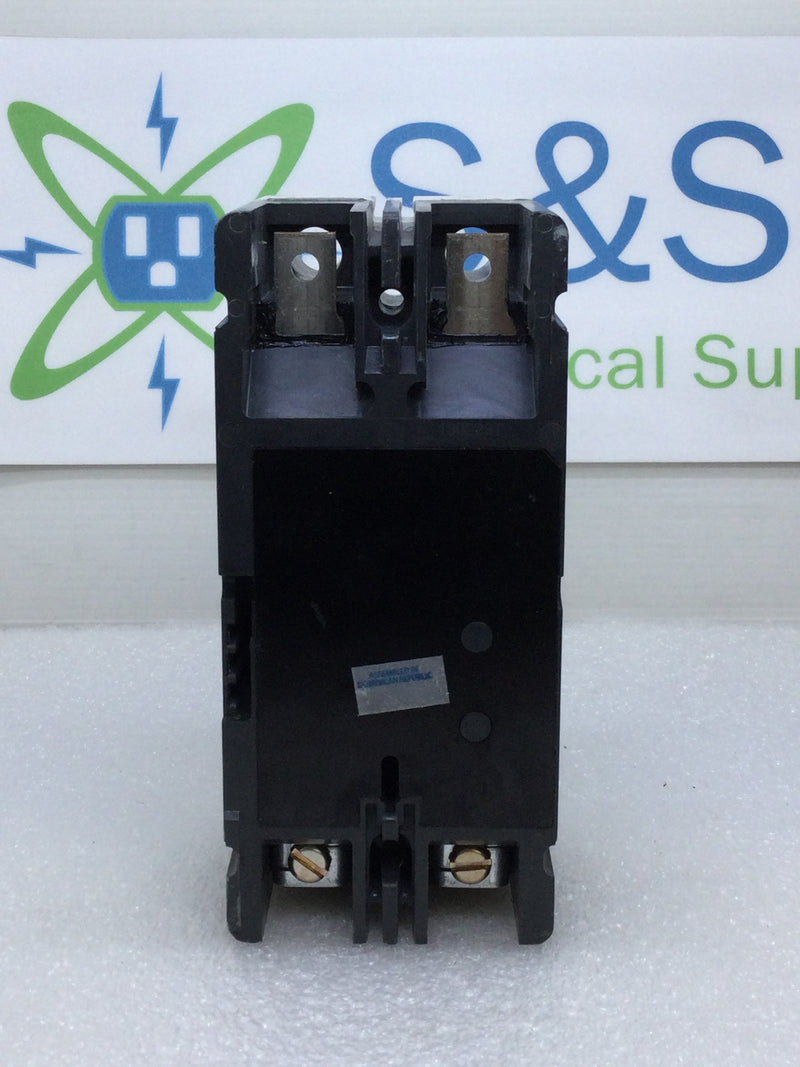

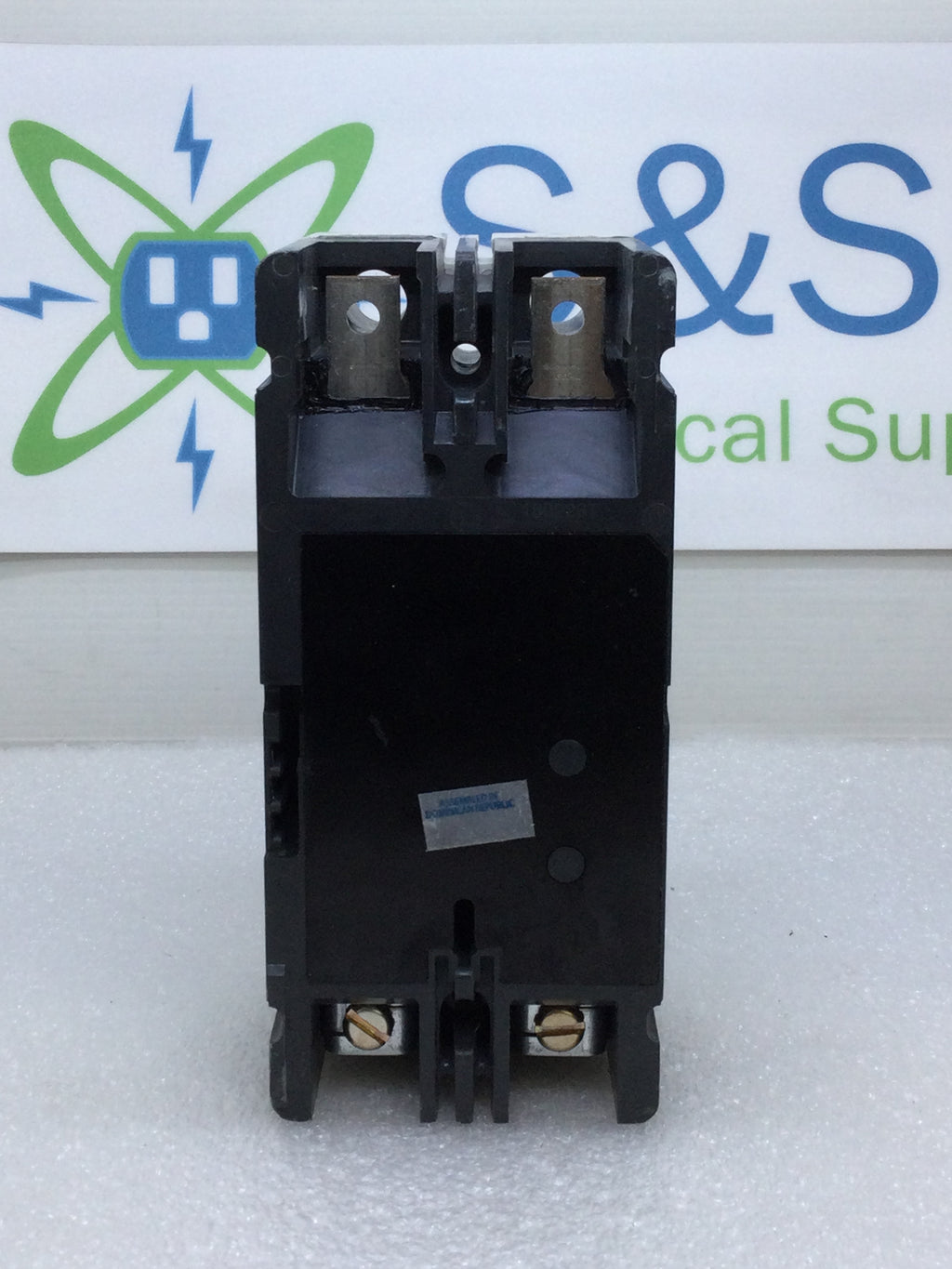

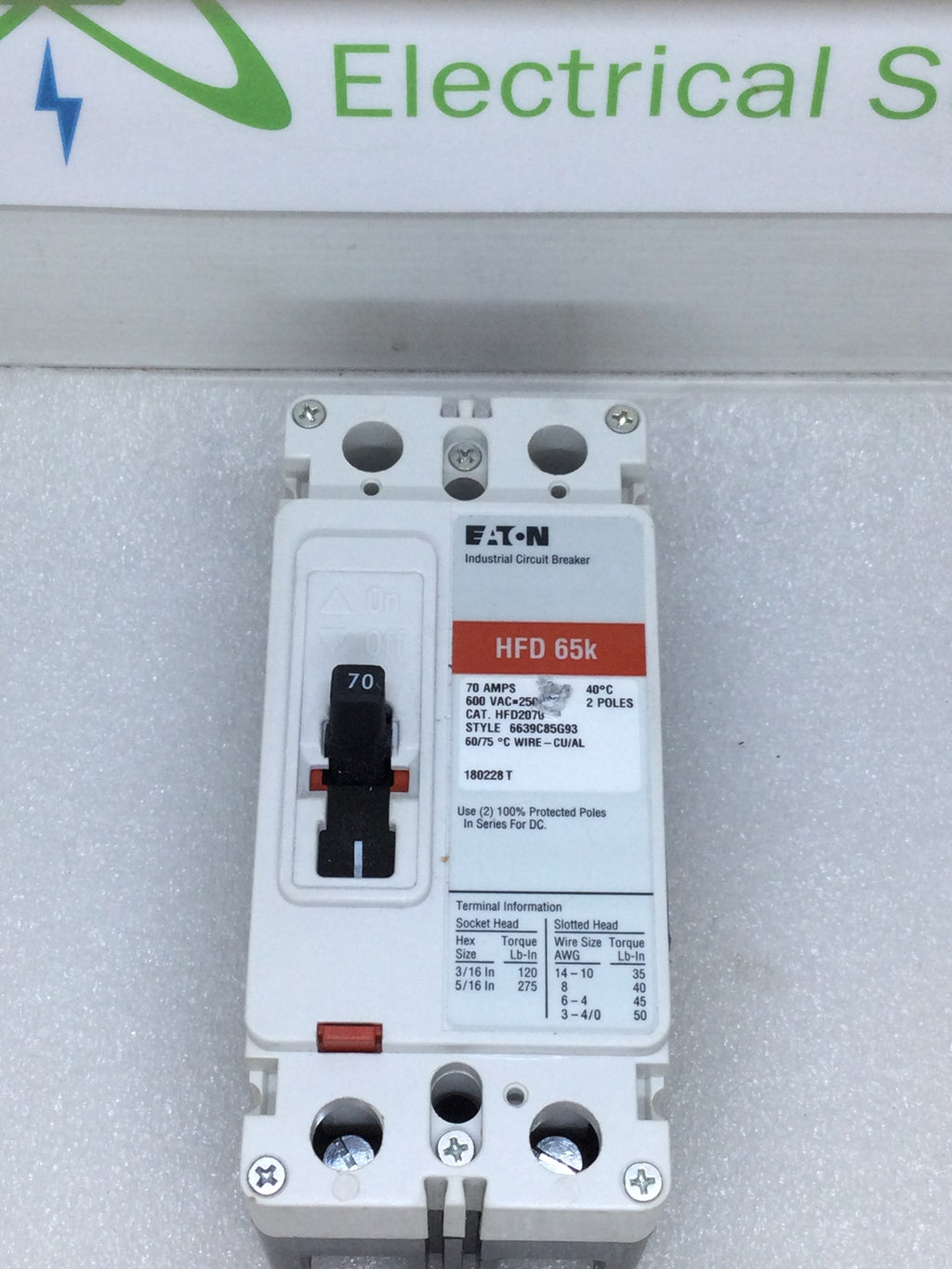

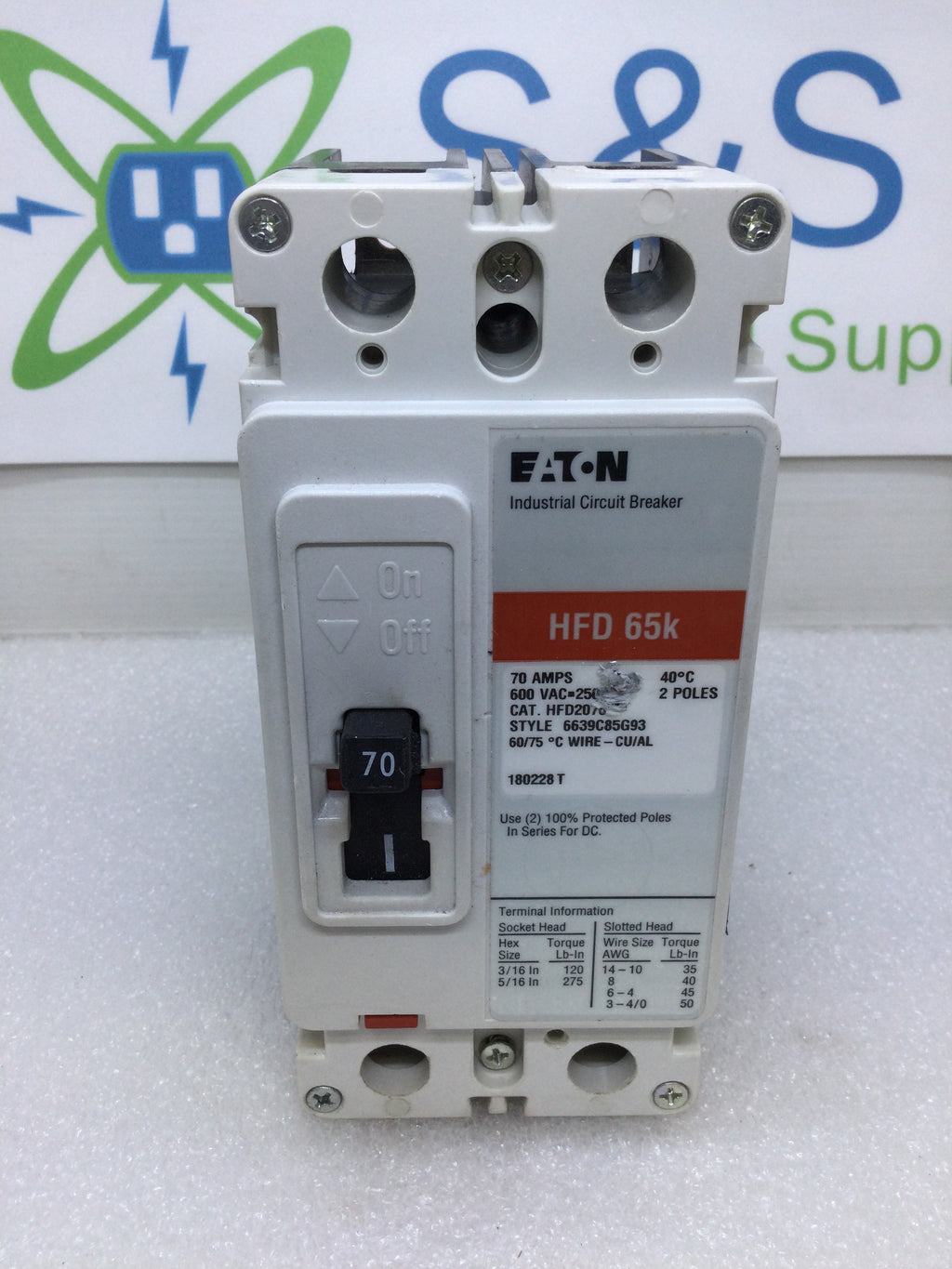

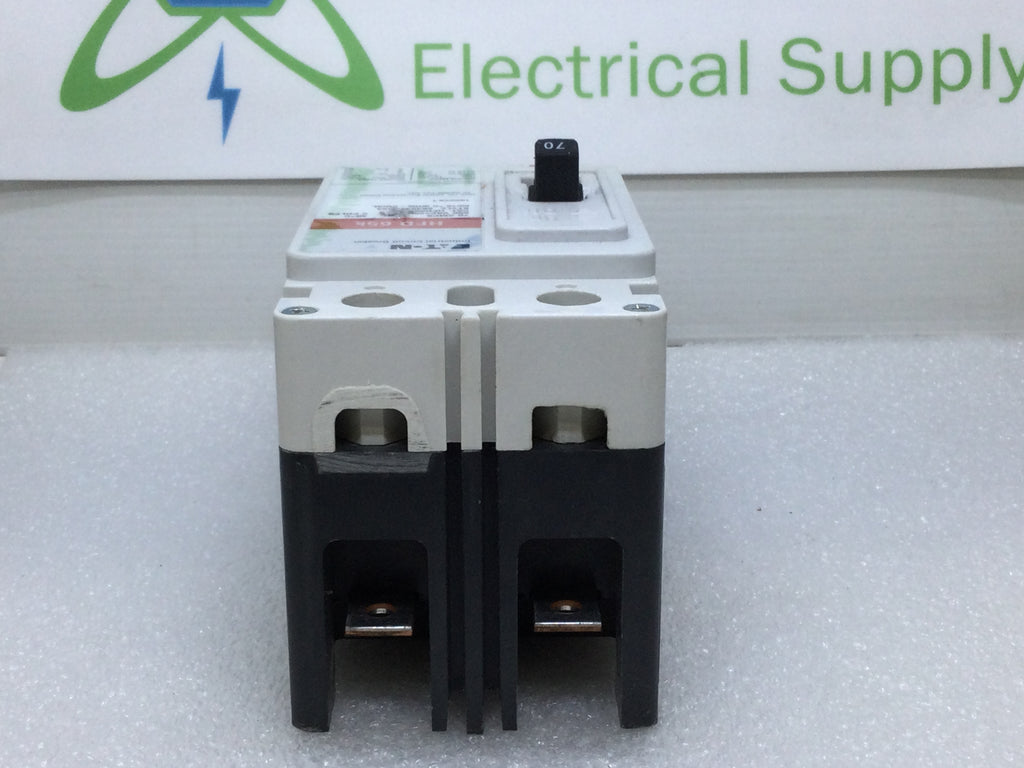

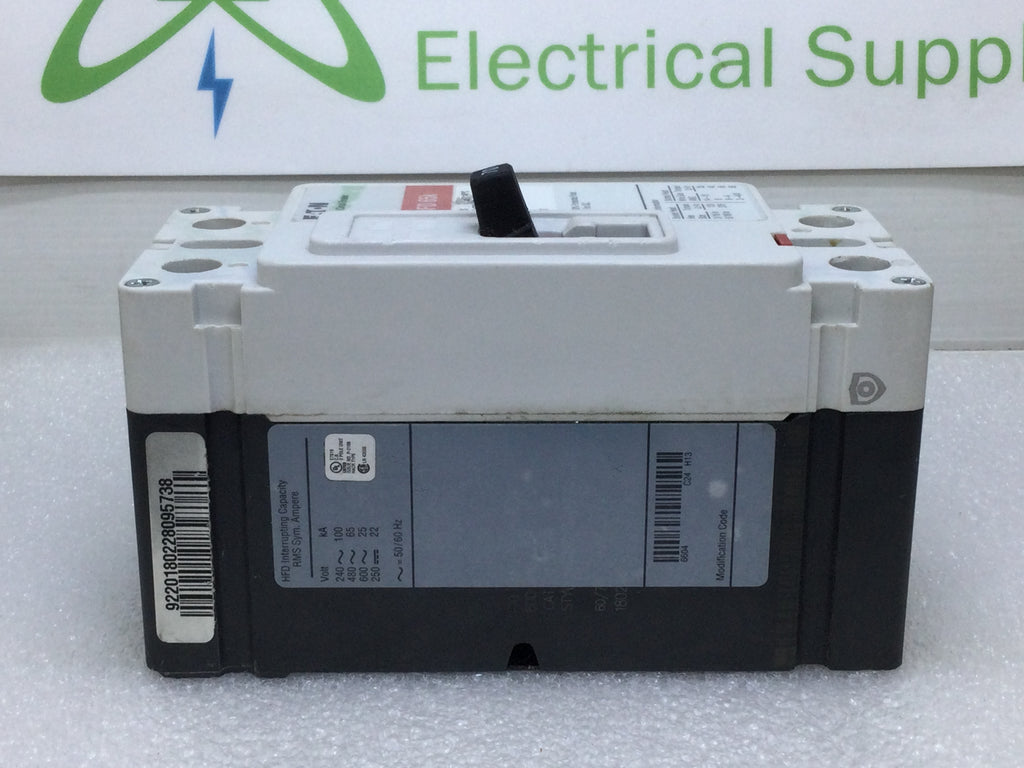

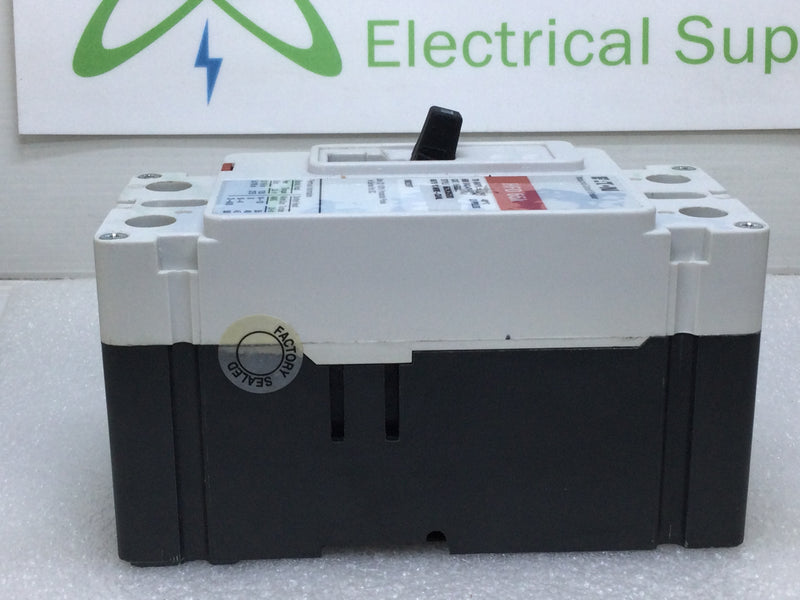

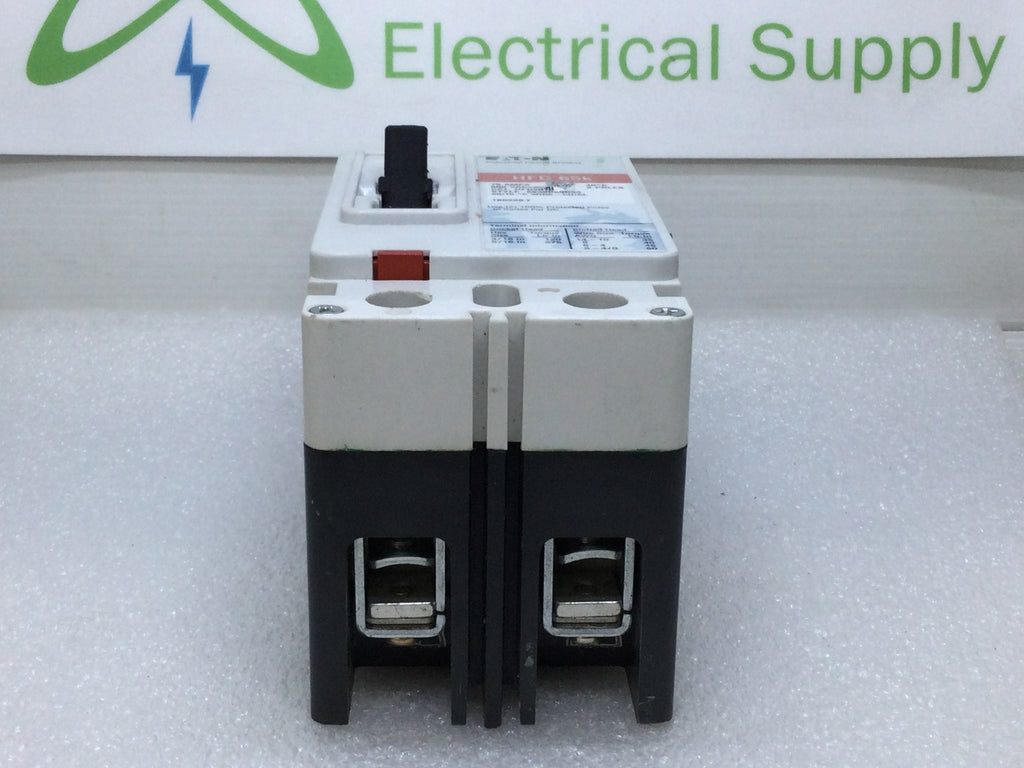

Eaton HFD2070 2 Pole 70 Amp Circuit Breaker
Specifications :
• Manufacturer : Culter Hammer
• Cat. No. : HFD2070
• Altarnate part No. : HFD-2070
• UPC : 786679175446
• Type : Molded Case Thermal Magnetic
• Frame Type : F Frame
• Type : HFD
• Phase : 1
• Pole : 2
• Voltage : 600
• Amperage : 70
• Connection : Bolt-On
• Protection : Thermal Magnetic
• Functions : (LI) Long-Time and Instantaneous
• Interrupting Rating : 100 Kiloampere At 240 Vac 65 Kiloampere At 480 Vac 25 Kiloampere At 600 Vac 22 Kiloampere At 250 Vdc (Ul)
• 100 Kiloampere At 220/240 Vac 65 Kiloampere At 380/415/440 Vac 25 Kiloampere At 500 Vac 22 Kiloampere At 250 Vdc (Iec)
• Terminal Standard Pressure Load Terminal
• Size : 2.75 Inch W X 3.375 Inch D X 6 Inch H
• Hfd Model
• Applicable Standard Iec 157-1
• Authentic Cutler-Hammer / Westinghouse Product
• Approvals : UL Listed
