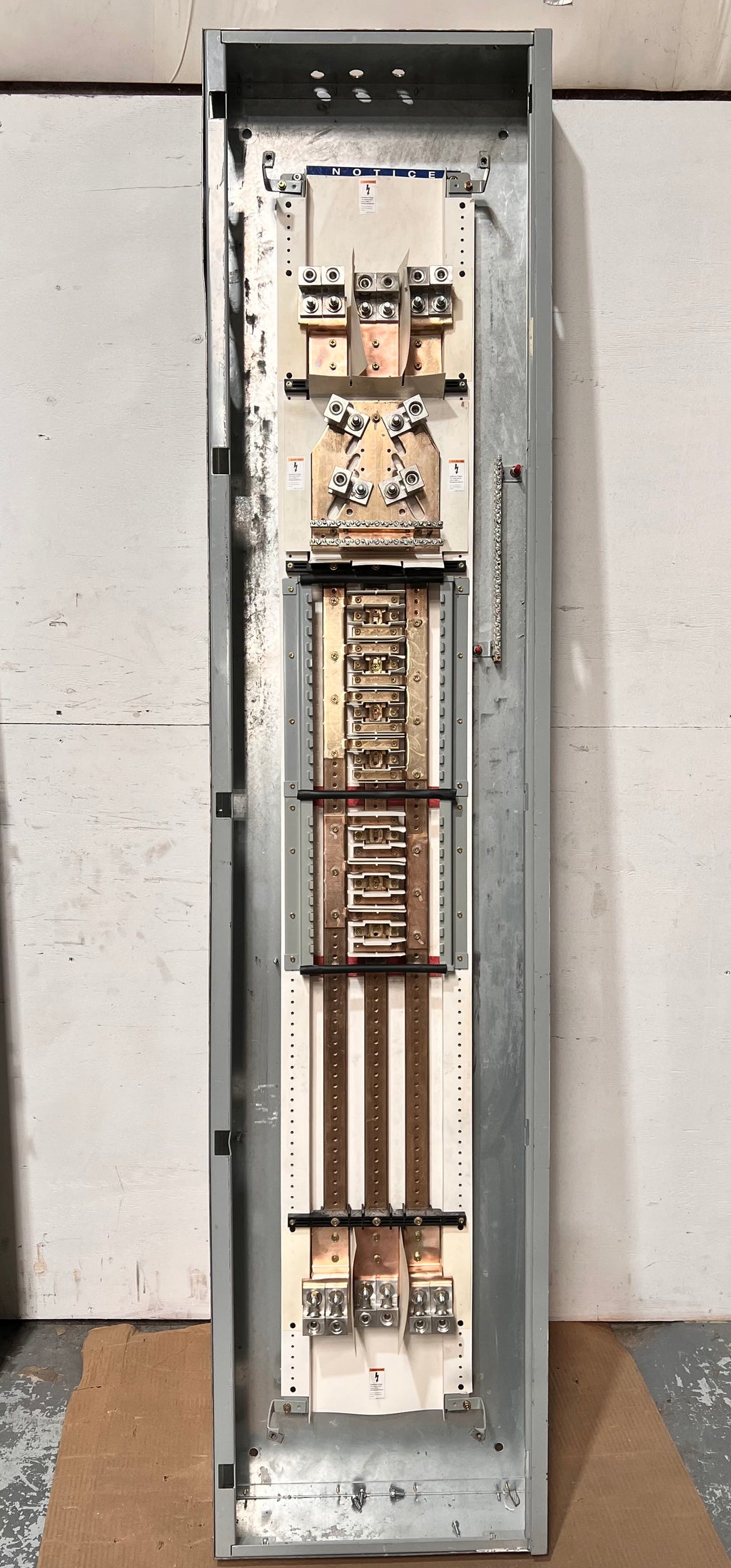

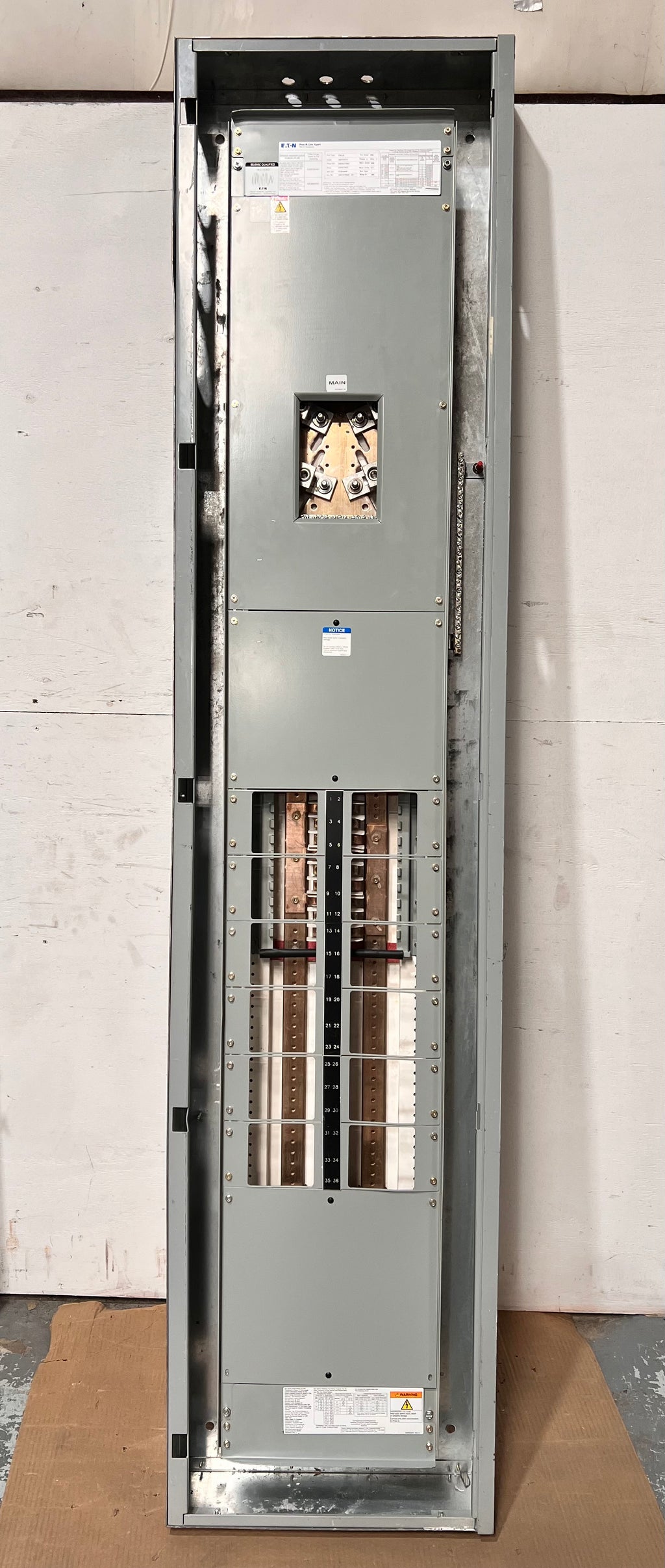

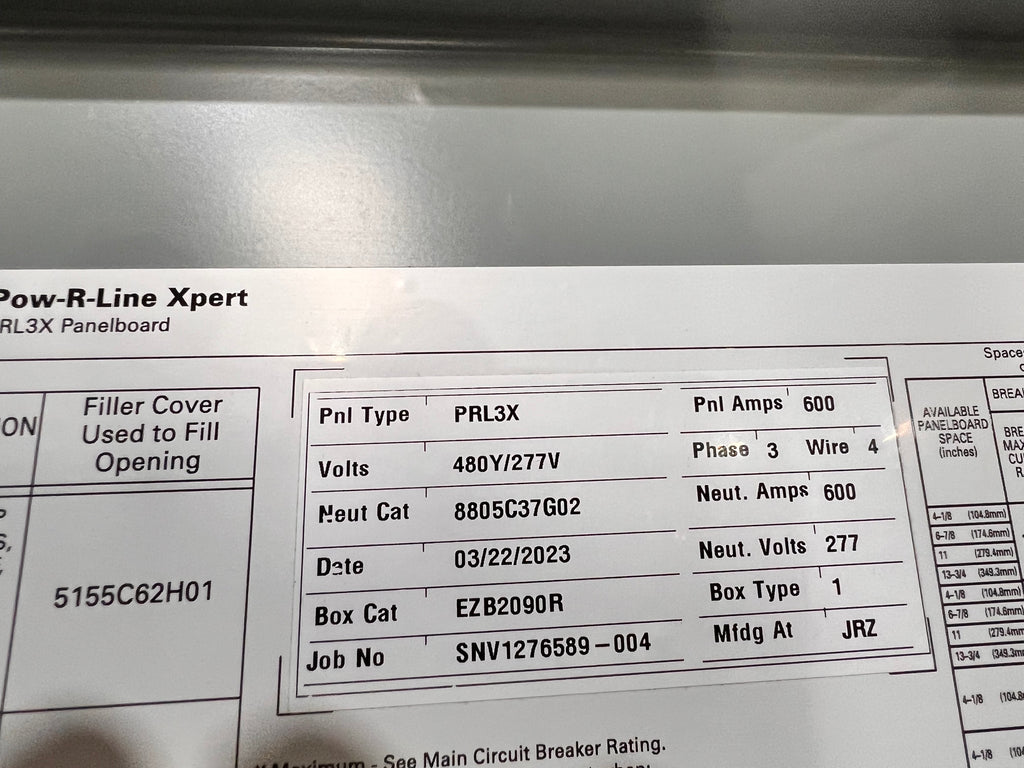

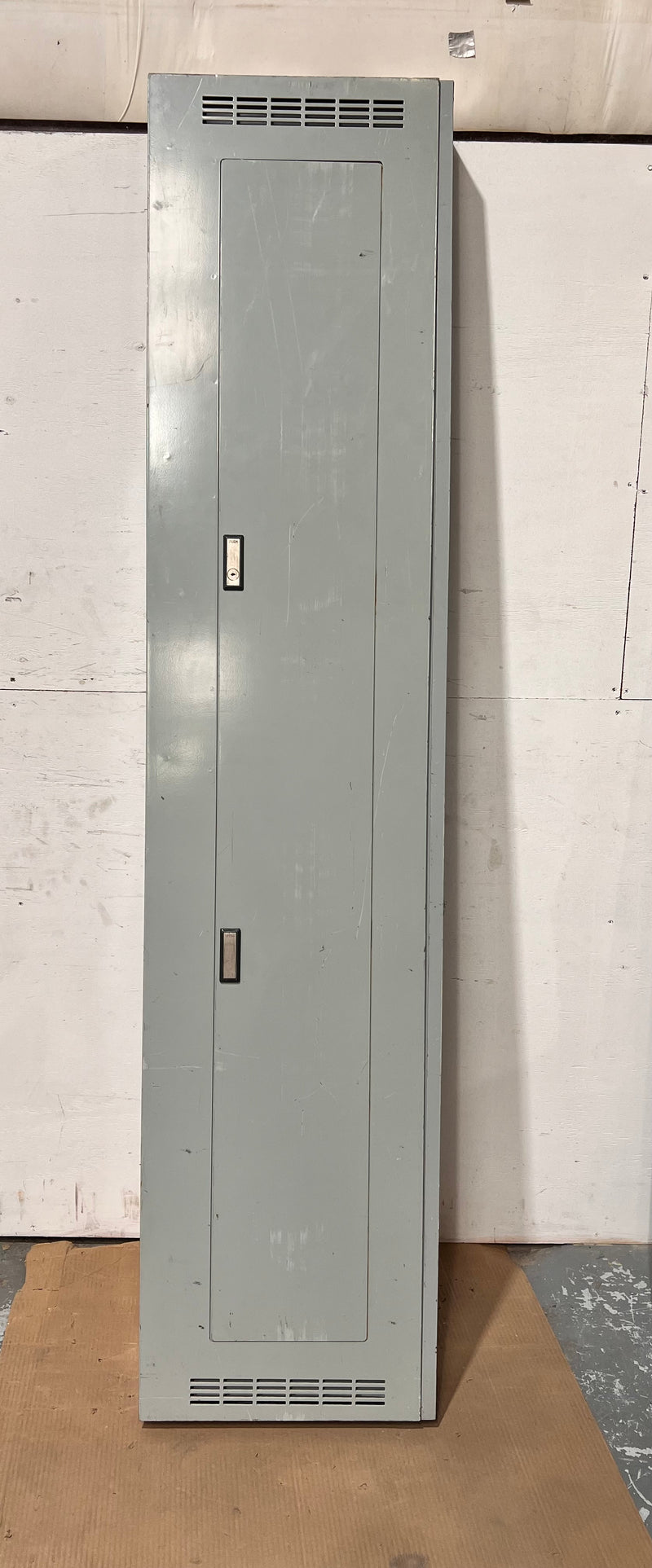

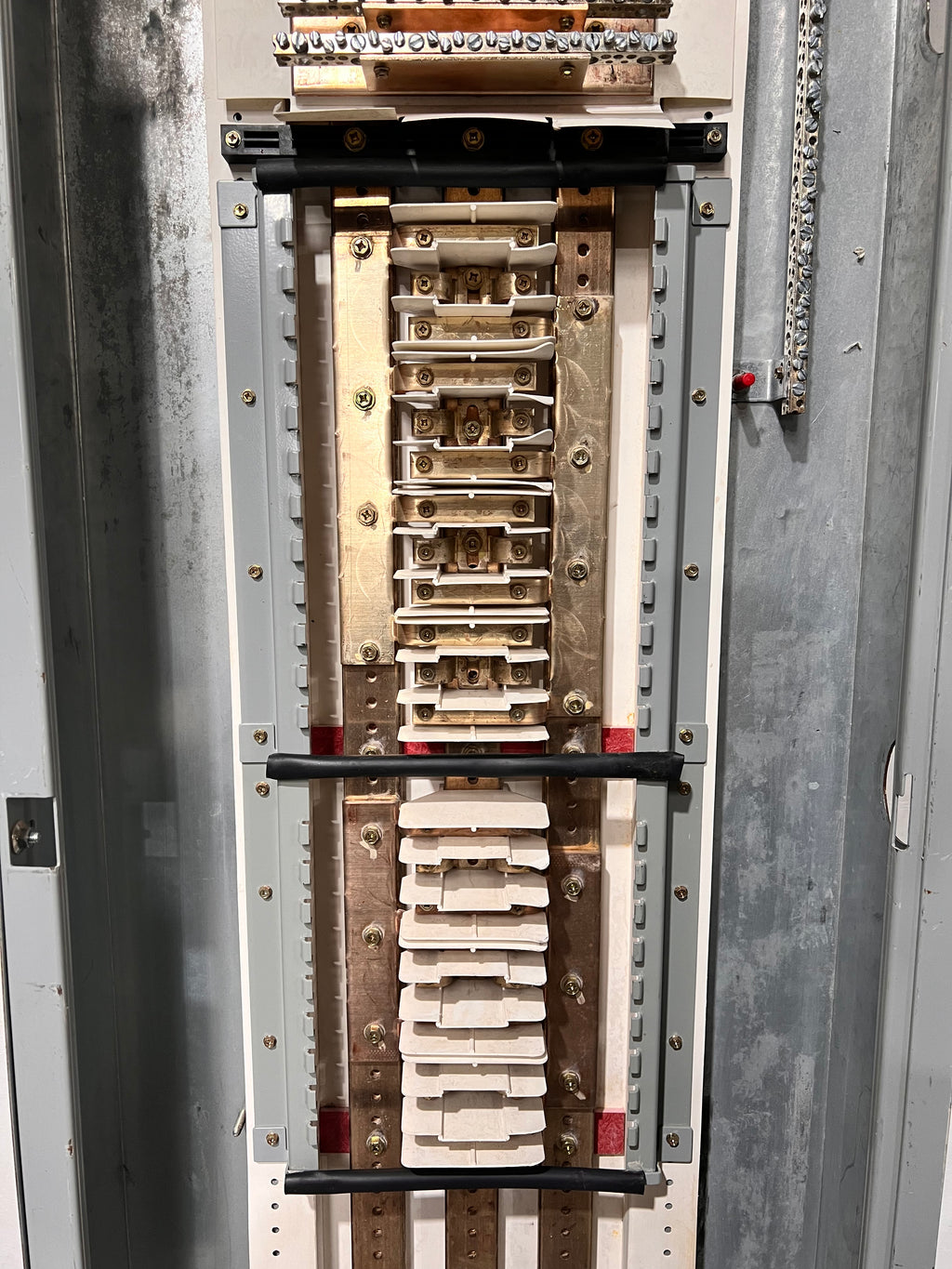

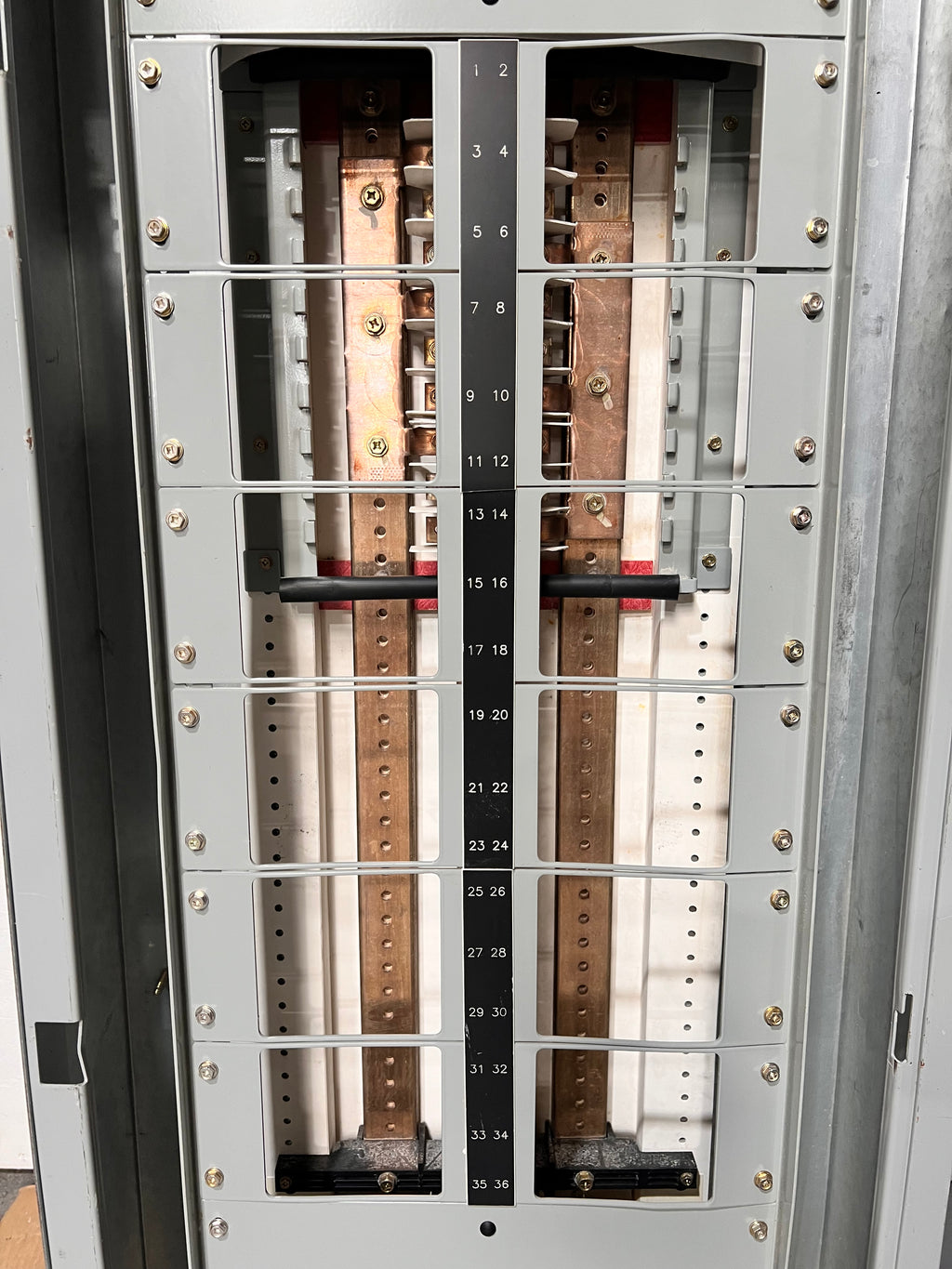

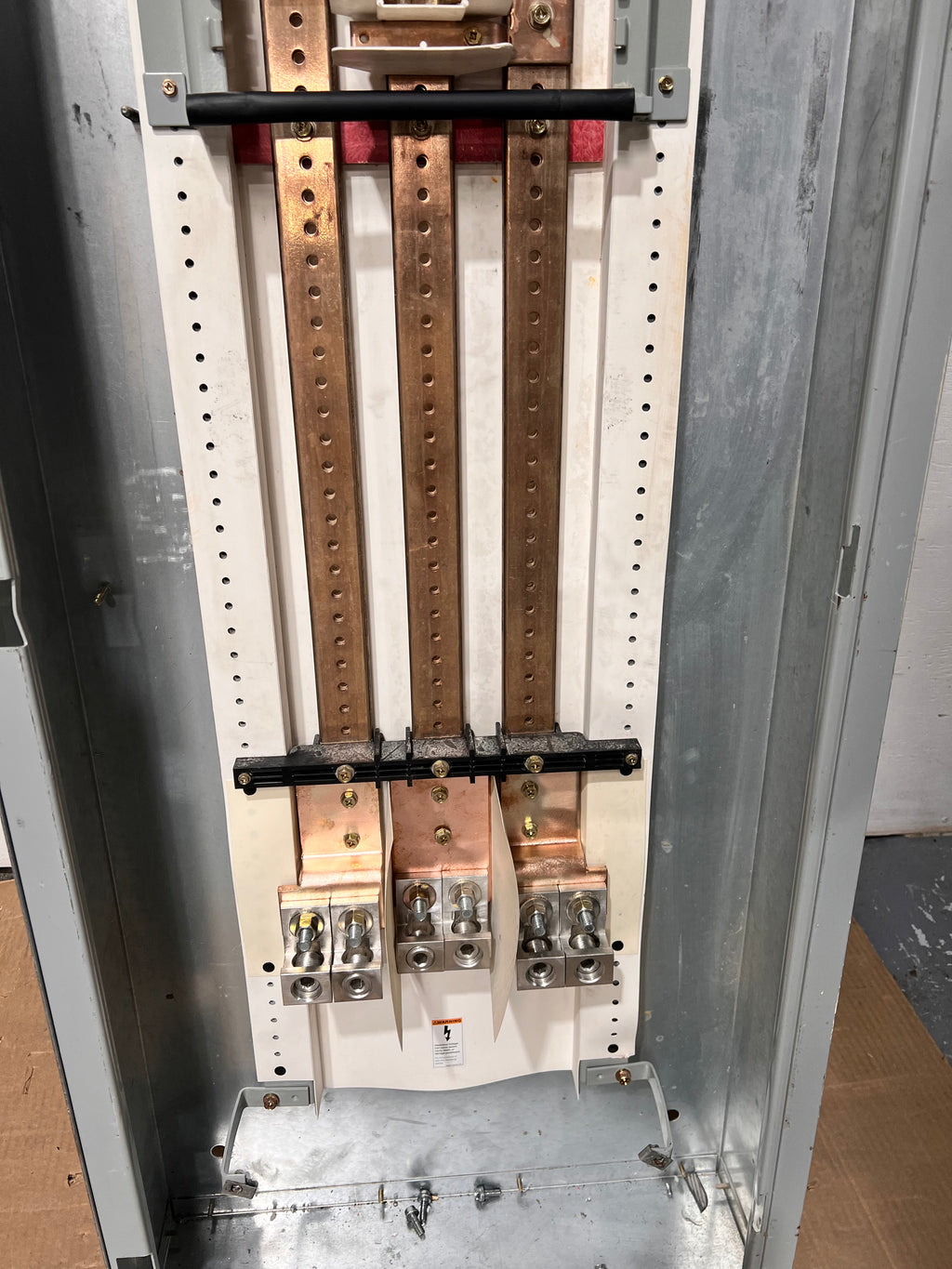

Cutler Hammer PRL3X 600 Amp 480y/277v 3 Ph 4 Wire 36 Space Full Enclosed Panelboard

The Pow-R-Line Xpert (PRLX) series by Eaton offers intelligent circuit protection for panelboards and switchboards. Let’s break down the details of the PRL3X 600 Amp 480Y/277V configuration:

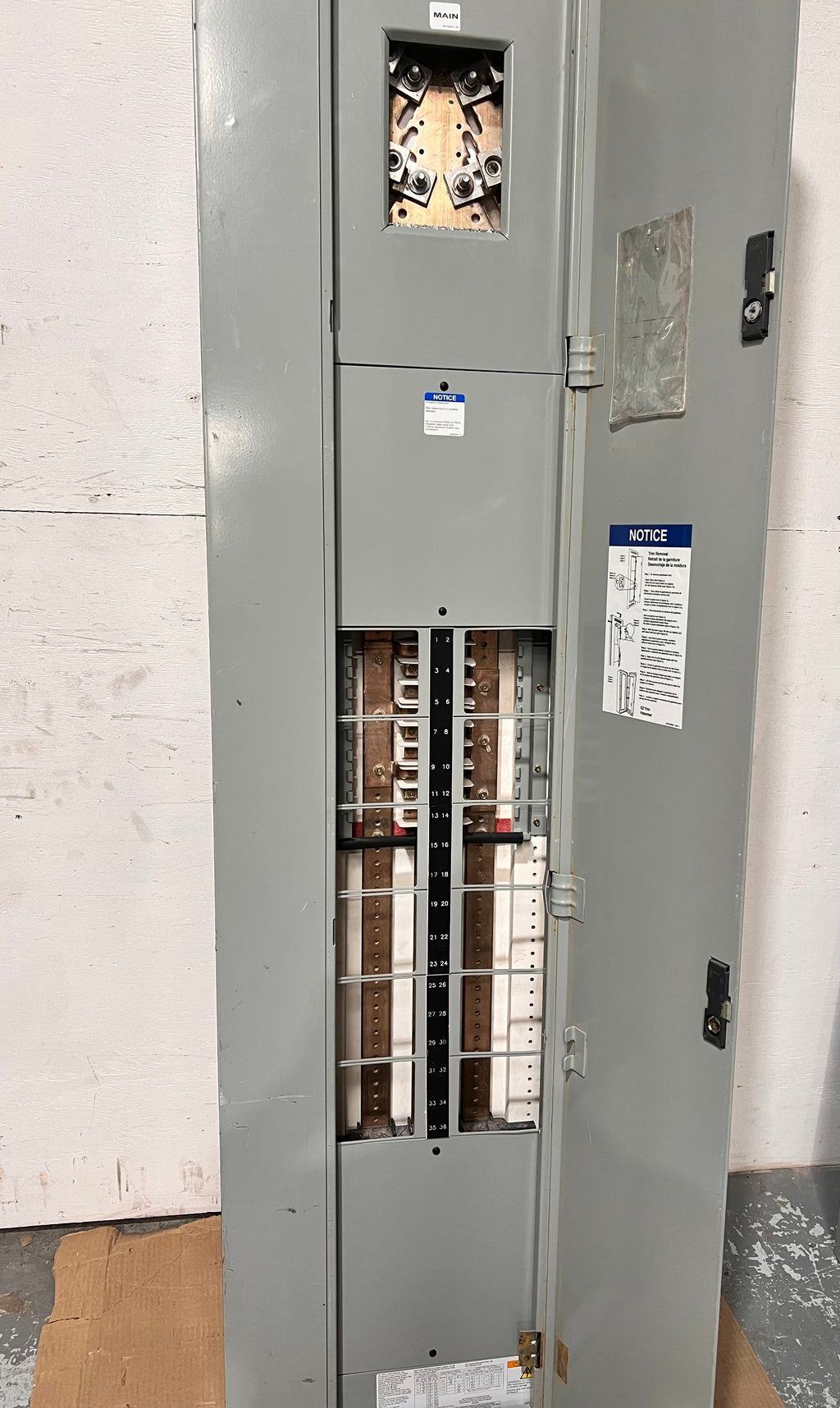

1. Main Breaker Panelboard:

   • Maximum Amperage: 600 A main
   • Voltage: 480Y/277 Vac, 125/250 Vdc

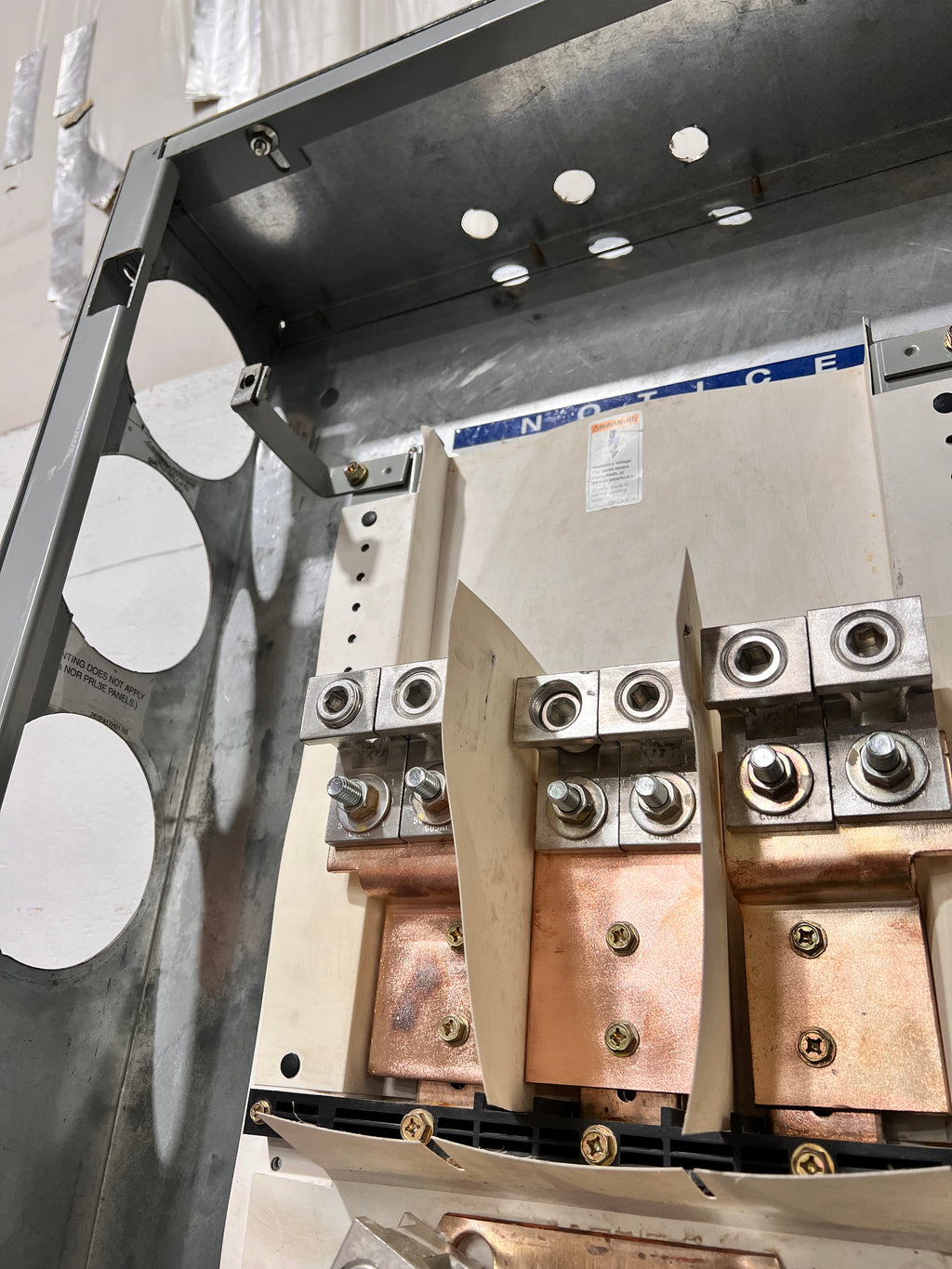

   • Bus Configuration: PRL4 Bus

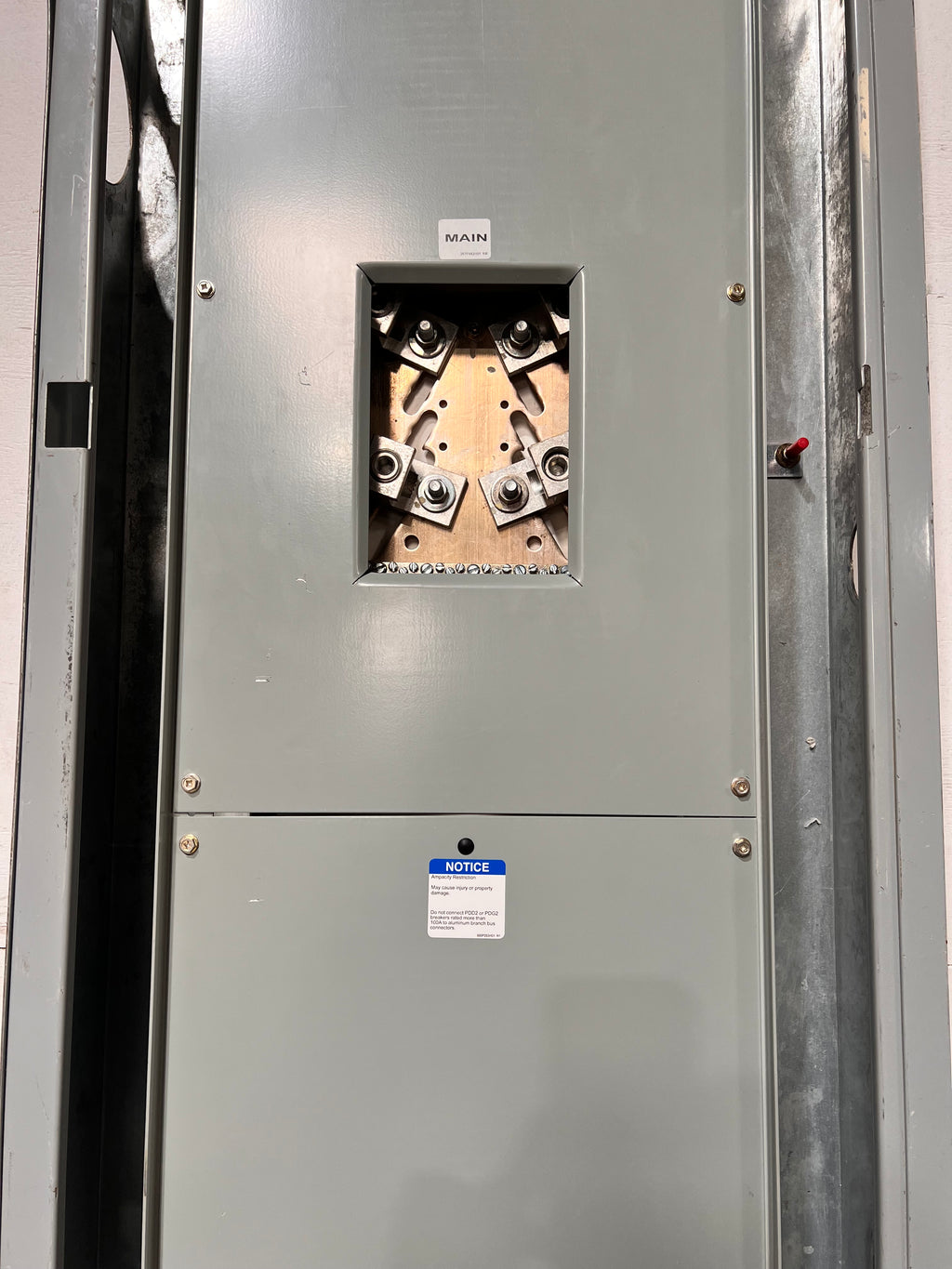

   • Main Breaker: New LGH3600FAG Main Breaker
   • Enclosure Type: NEMA 1
   • Phase: 3-phase

2. Features:

   • Power Defense Molded Case Circuit Breakers: These provide reliable circuit    protection.
   • EZ Box and EZ Trim: Standard features for ease of installation.
   • Surge Options: Available for up to 200 kA.
   • Chassis Accepts Miniature Circuit Breakers: Allows flexibility in customization.

3. Additional Information:

   • Applications: These panelboards are commonly used in data centers, healthcare facilities, commercial buildings, and institutions.
   • Energy Metering: Integrated metering capabilities simplify installation.
   • Predictive Maintenance: Breaker health diagnostics monitor and communicate breaker status, enabling predictive maintenance to avoid costly downtime.
   • Arc Flash Reduction: Standardizing Arcflash Reduction Maintenance System (ARMS) functionality reduces arc flash energy during maintenance operations.
