Description

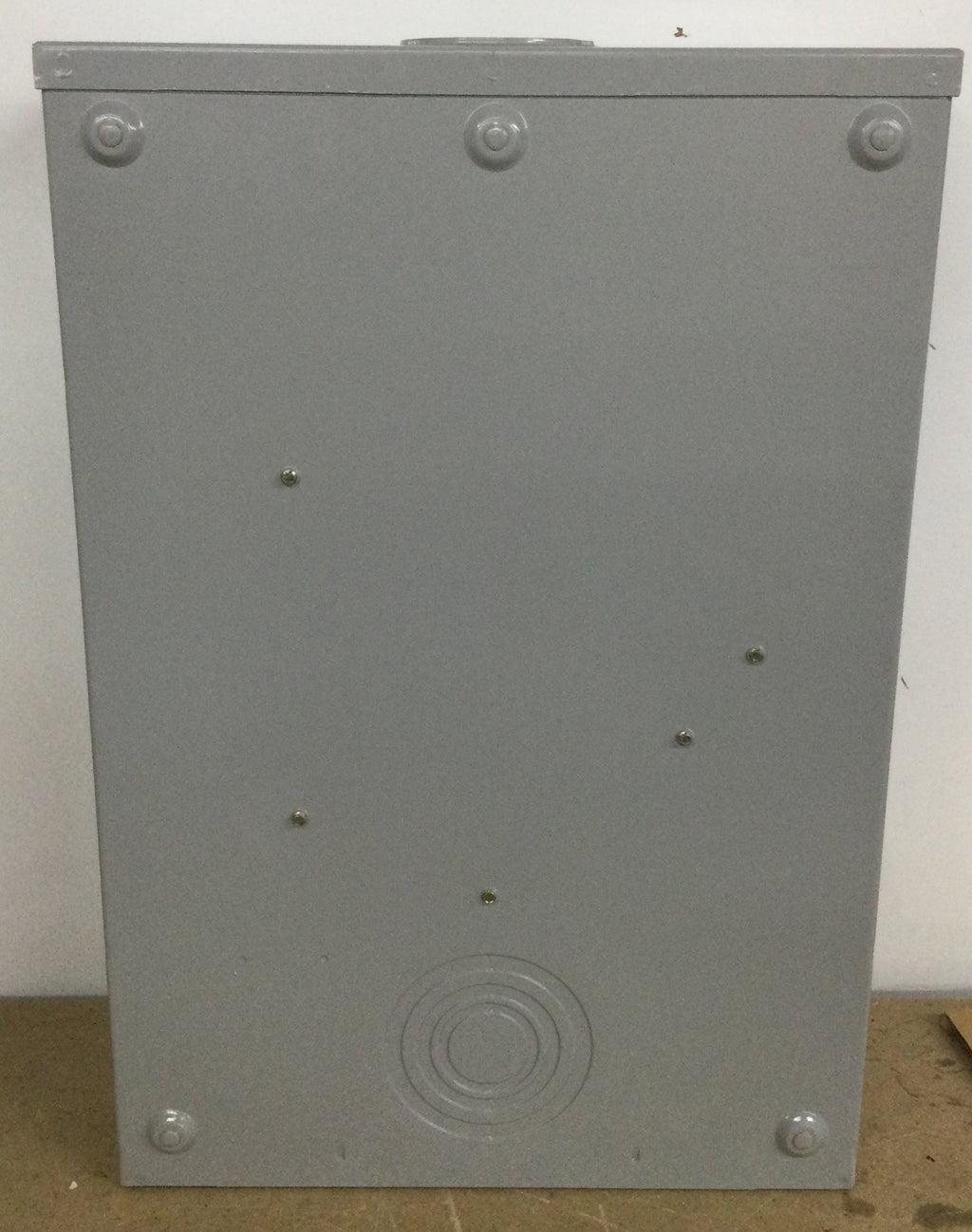

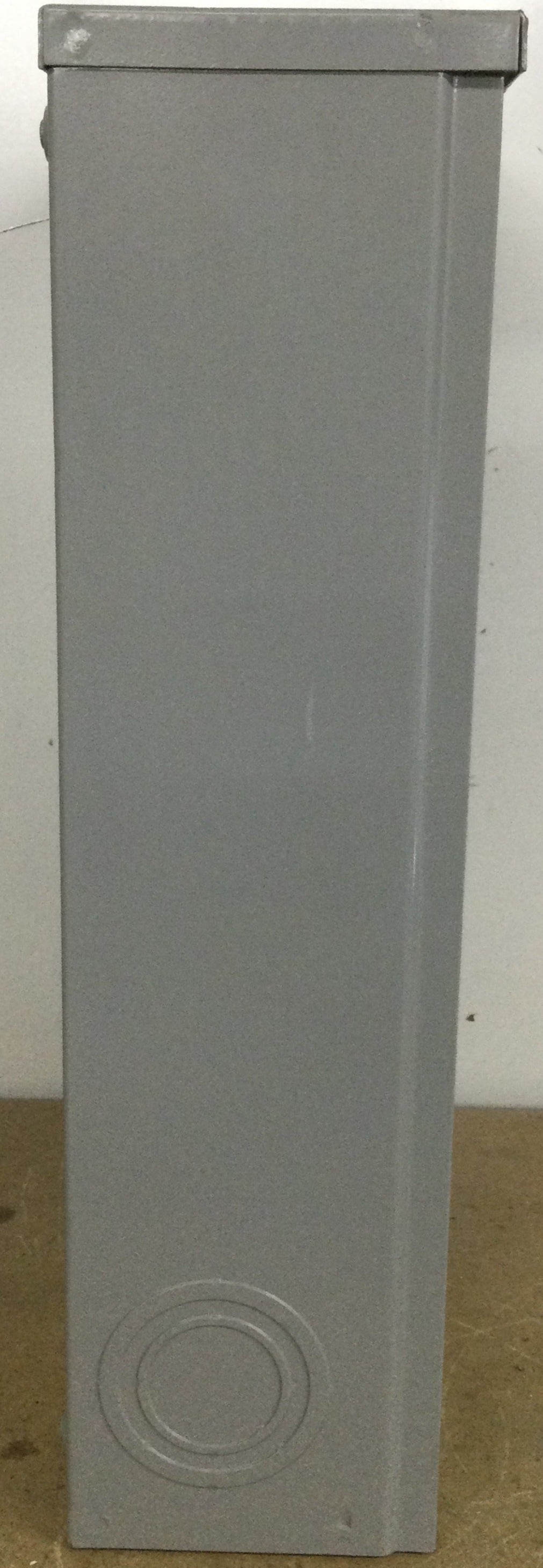

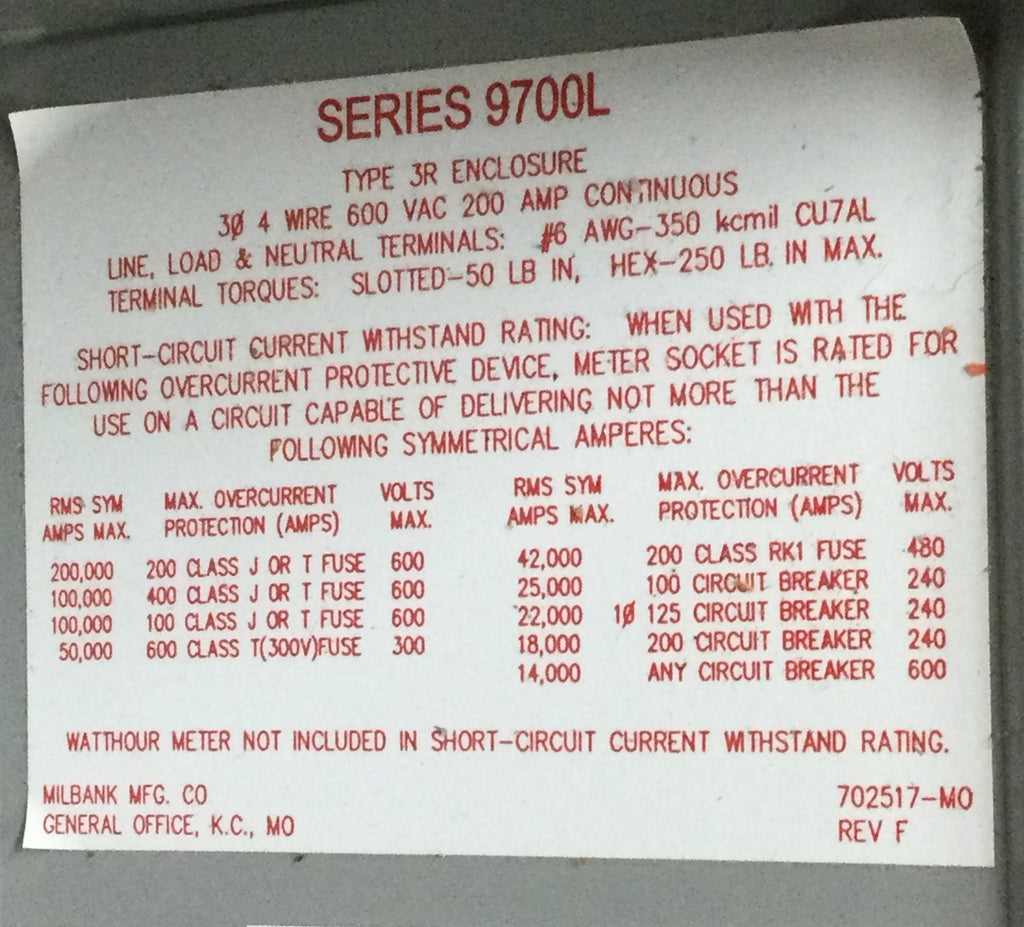

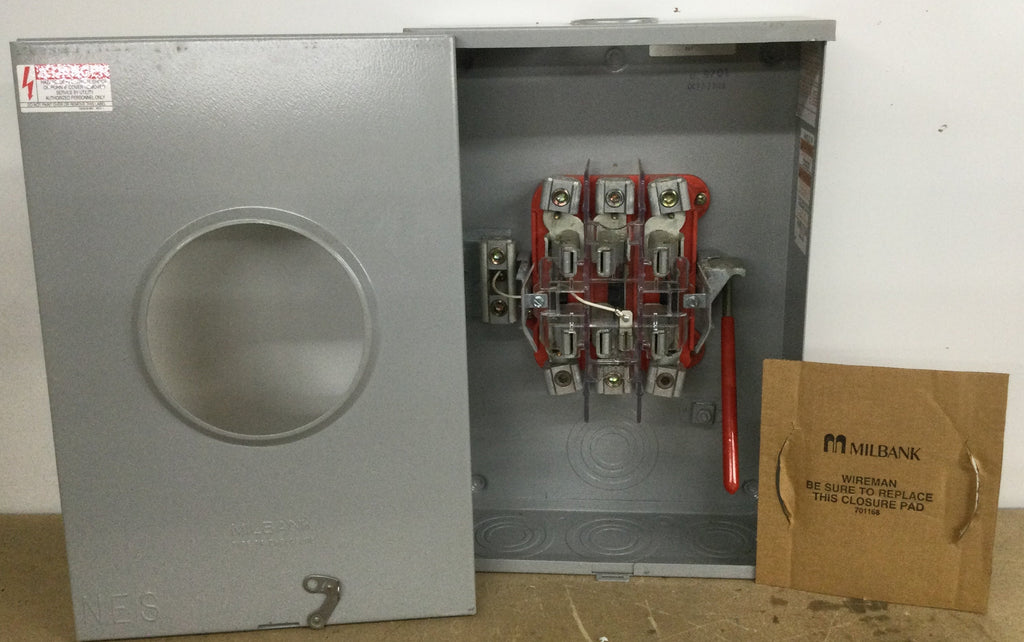

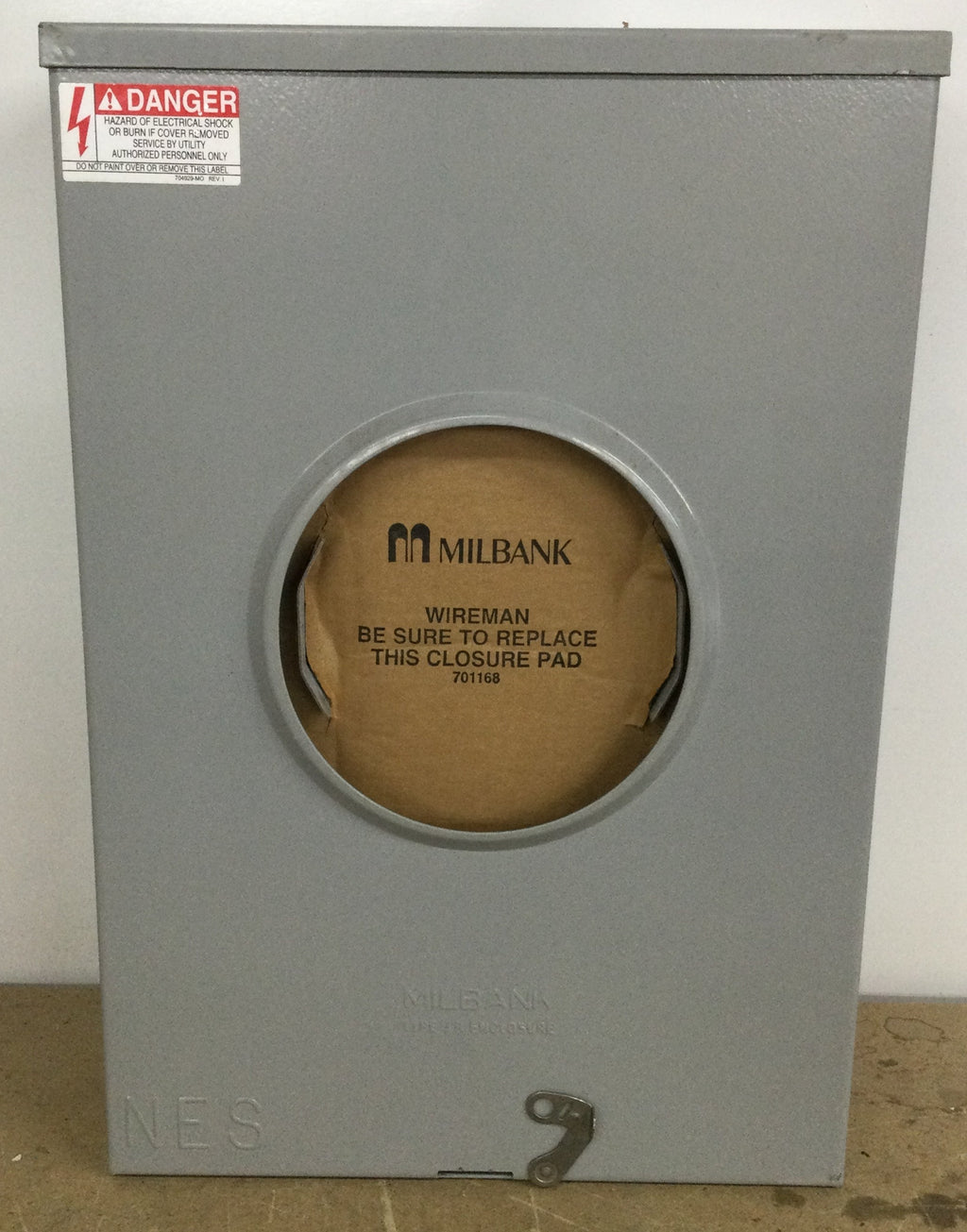

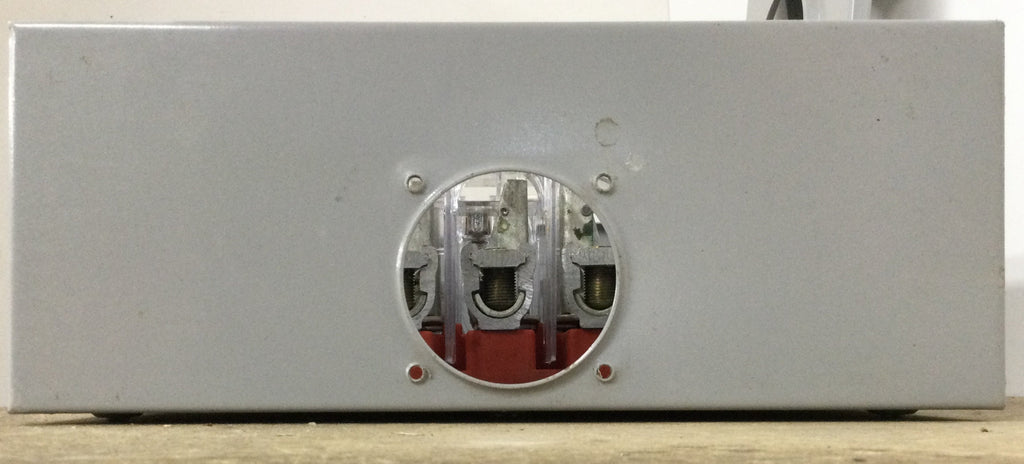

Milbank Series 9700L 7 Terminal Ringless Large Hub Open Adapt To Small Hub Open Lever Bypass Overhead
| Brand Name | Milbank |
| Type | Ringless Meter Socket |
| Application | Meter Socket |

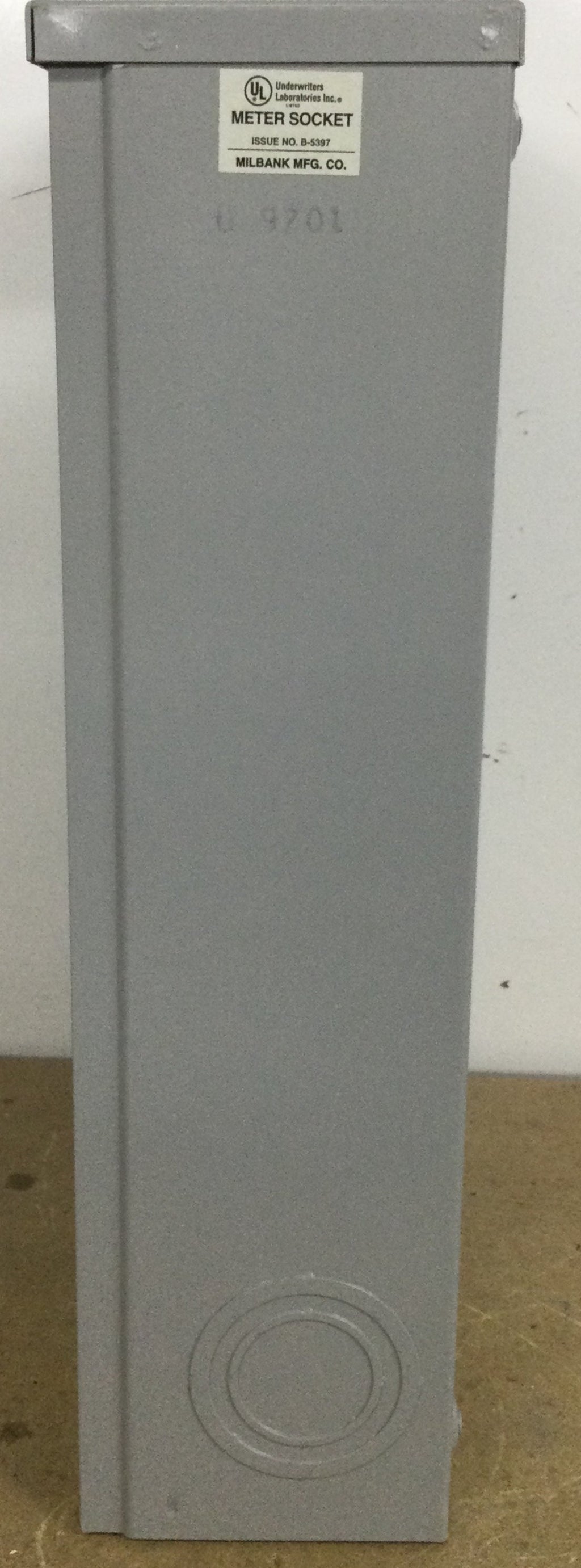

| Standard | UL Listed;Type 3R |
| Voltage Rating | 600 Volts Alternating Current |
| Amperage Rating | 200 Continuous Ampere |
| Phase | 3 Phase |
| Frequency Rating | 60 Hertz |
| Size | 4.844L x 10W x 18.5H |
| Number of Main Breakers | 0 |
| Main Breaker Size | No Main Breaker |
| Cable Entry | Overhead |
| Terminal | Lay in |
| Insulation | Glass Polyester |
| Mounting | Surface Mount |
| Material | G90 Galvanized Steel with Powder Coat Finish |

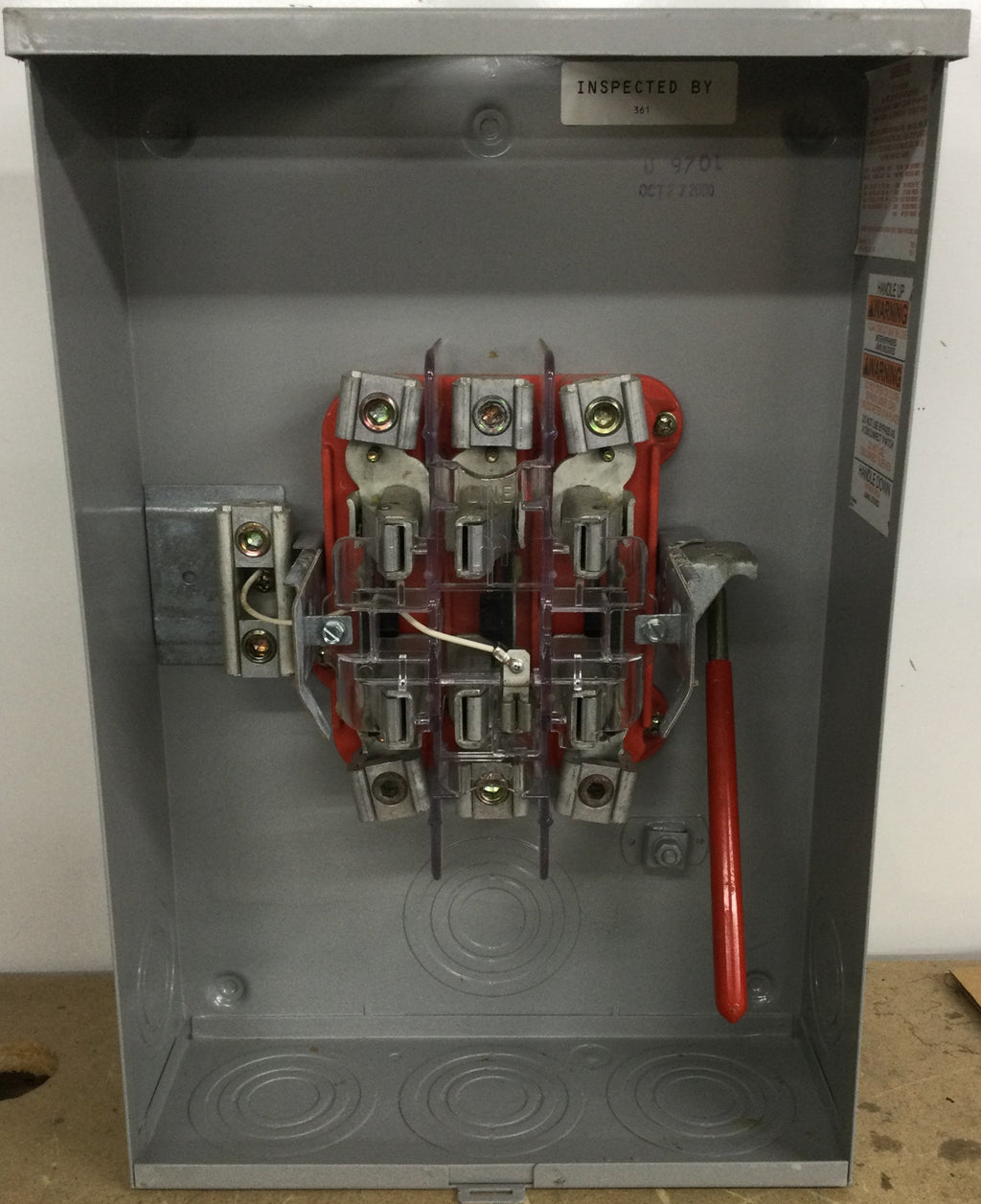

| Number of Jaws | 7 Terminal |
| Bypass Provision | Lever Bypass |
| Number of Meter Positions | 1 Position |
| Equipment Ground | Grounding Stud |

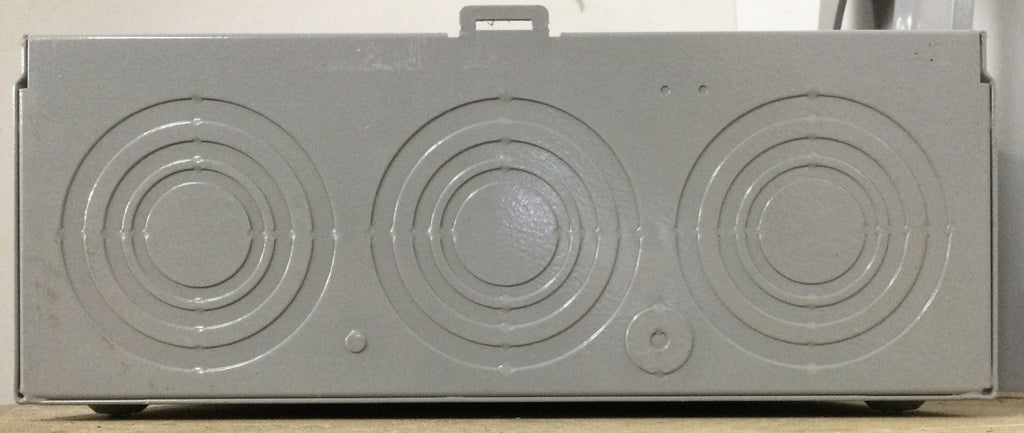

| Hub/Closing Plate | Large Hub Opening Adapted to Small Hub Opening |
| Line Side Wire Range | 6 AWG - 350 kcmil |
| Load Side Wire Range | 6 AWG - 350 kcmil |
| Number Of Receptacles | 0 |
| Height | 18.5 IN |
| Length | 4.844 IN |
| Width | 10 IN |
