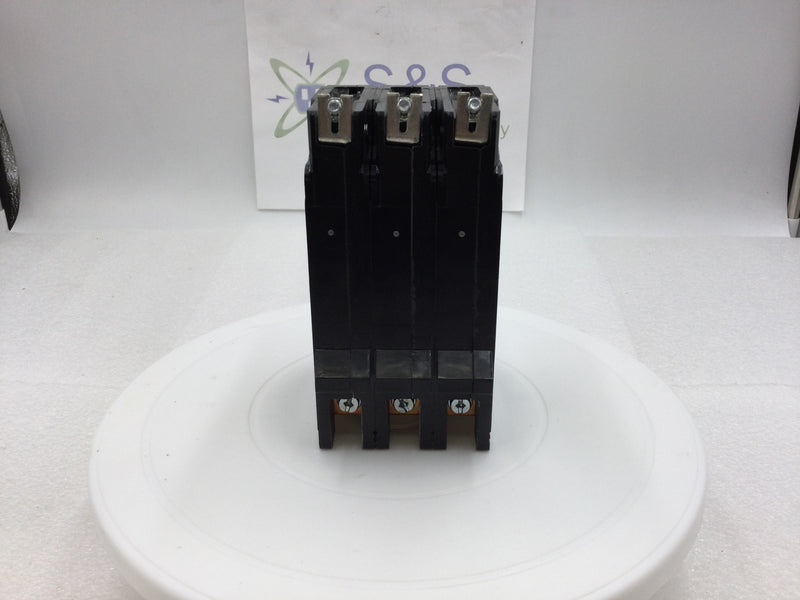

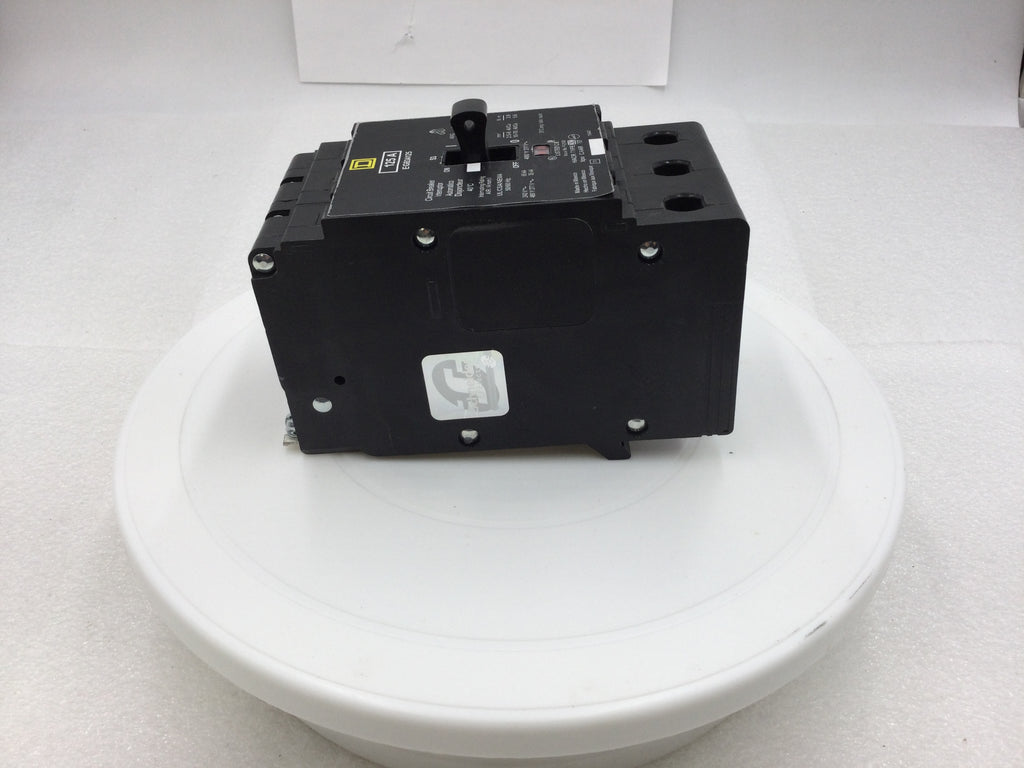

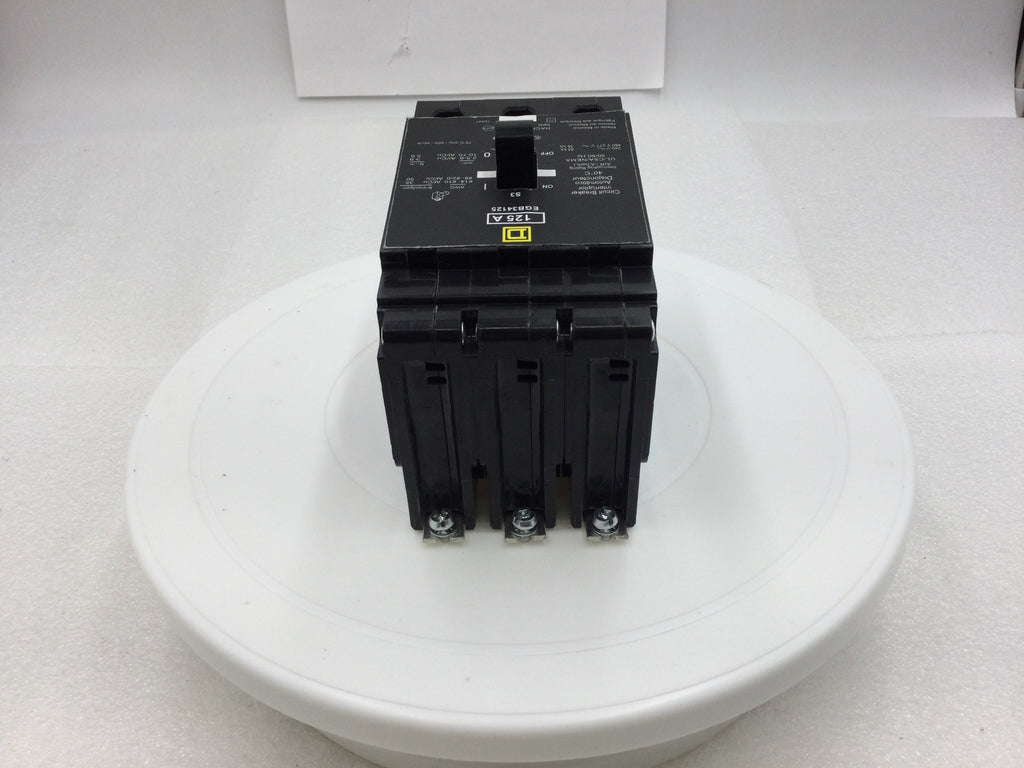

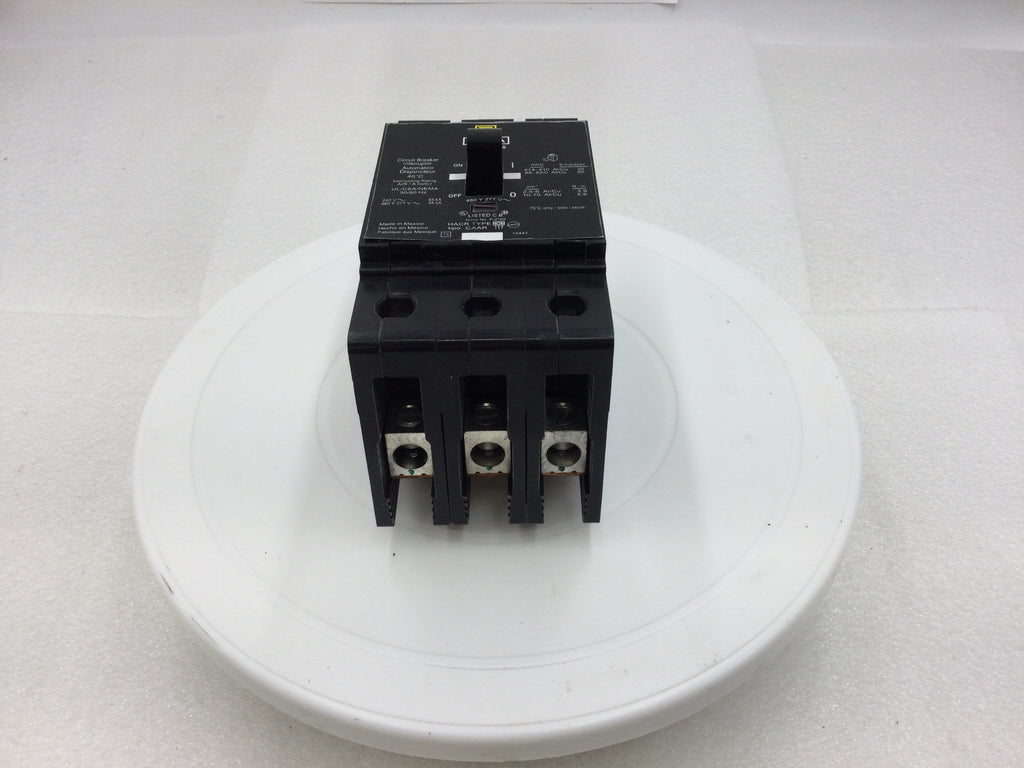

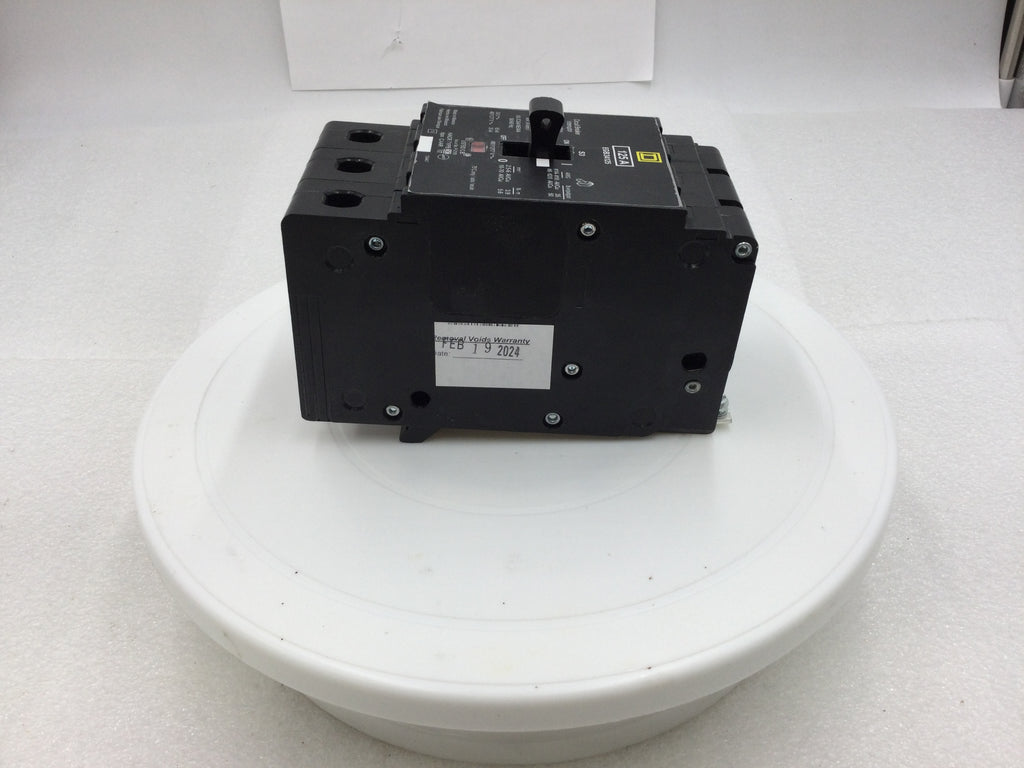

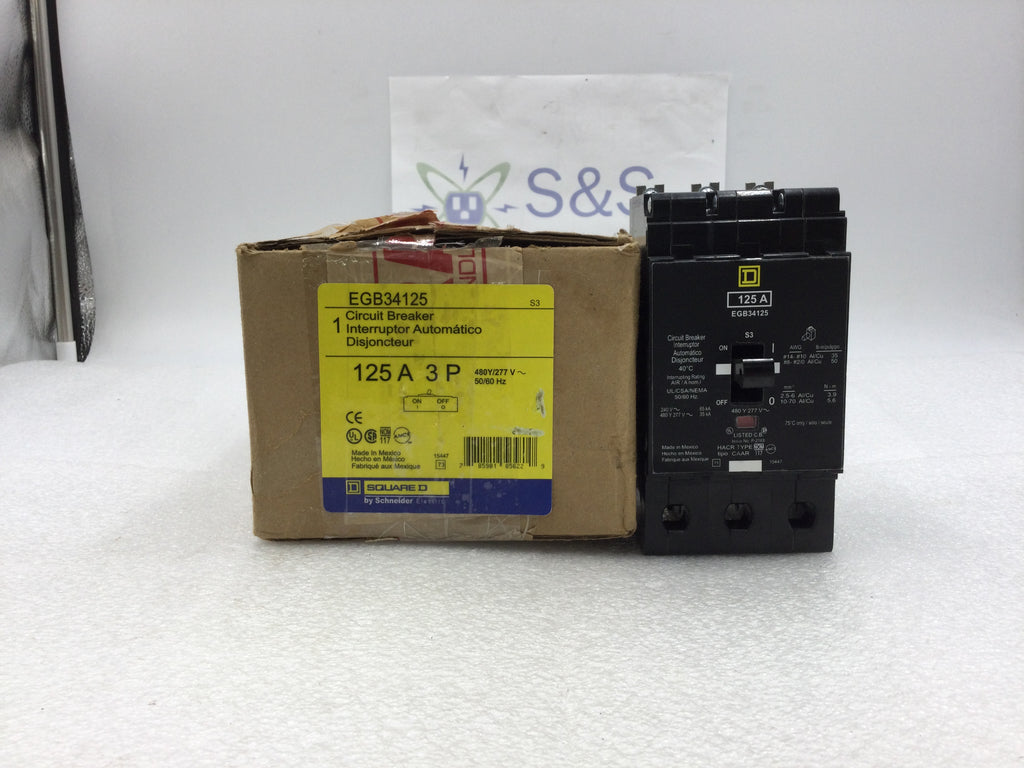

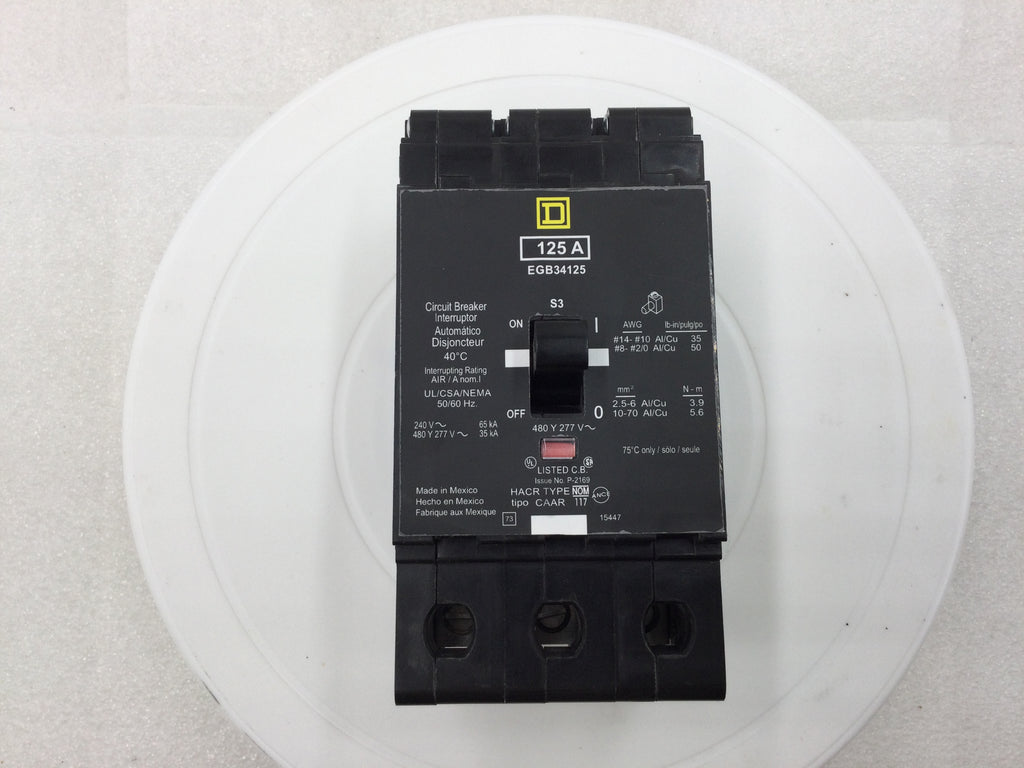

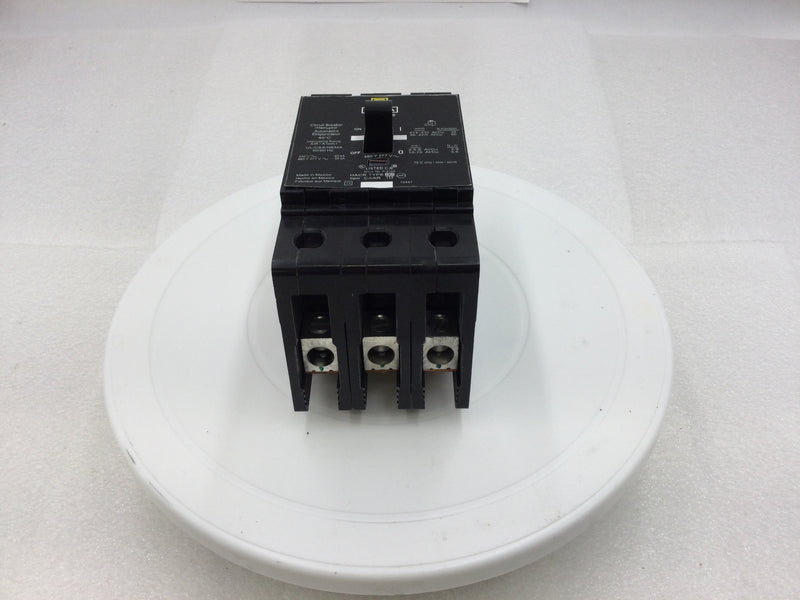

Square D EGB34125 125 Amp 3 Pole 480v Circuit Breaker

Square D EGB34125 125 Amp 3 Pole 480v Circuit Breaker-NIB

Introducing the Square D EGB34125 3 Pole 125 Amp 480v Circuit Breaker-NIB. Designed for high performance, this circuit breaker provides reliable protection for your electrical systems. With a 3 pole design and 125 amp capacity, it offers maximum efficiency for your 480v circuit. Upgrade your equipment with confidence and trust in the industry expertise of Square D.

Specification:

• Line Rated Current: 125 A

• maximum operating voltage: 480Y/277 V AC

• AWG gauge: AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper

• Breaking capacity:
  • 35 kA 277 V AC
  • 65 kA 240 V AC

  • 35 kA 480Y/277 V AC

  • 65 kA 120 V AC

  • 65 kA 120/240 V AC
• Circuit breaker application: HACR rated

• Electrical connection Lugs: aluminium

• Holding Current: 1000 A

• local signaling: Trip indicator

• Mounting Mode: Bolt-on

• Number of poles: 3

• Number of spaces: 3

• Number of spaces required: 3

• Product destination: NF panelboard

• Protection Type: Short-circuit Overload

• Trip unit technology: Thermal-magnetic

• Breaking capacity: code G

• Tightening torque: 34.5 lbf.in (3.9 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.6 lbf.in (5.6 N.m) 0.02…0.1 in² (10…70 mm²) (AWG 8...AWG 2/0)

• Height: 5.66 in (143.76 mm)

• Width: 2.94 in (74.68 mm)

• Depth 4.05 in (102.87 mm)

• Net Weight 4 lb (US) (1.8 kg)
