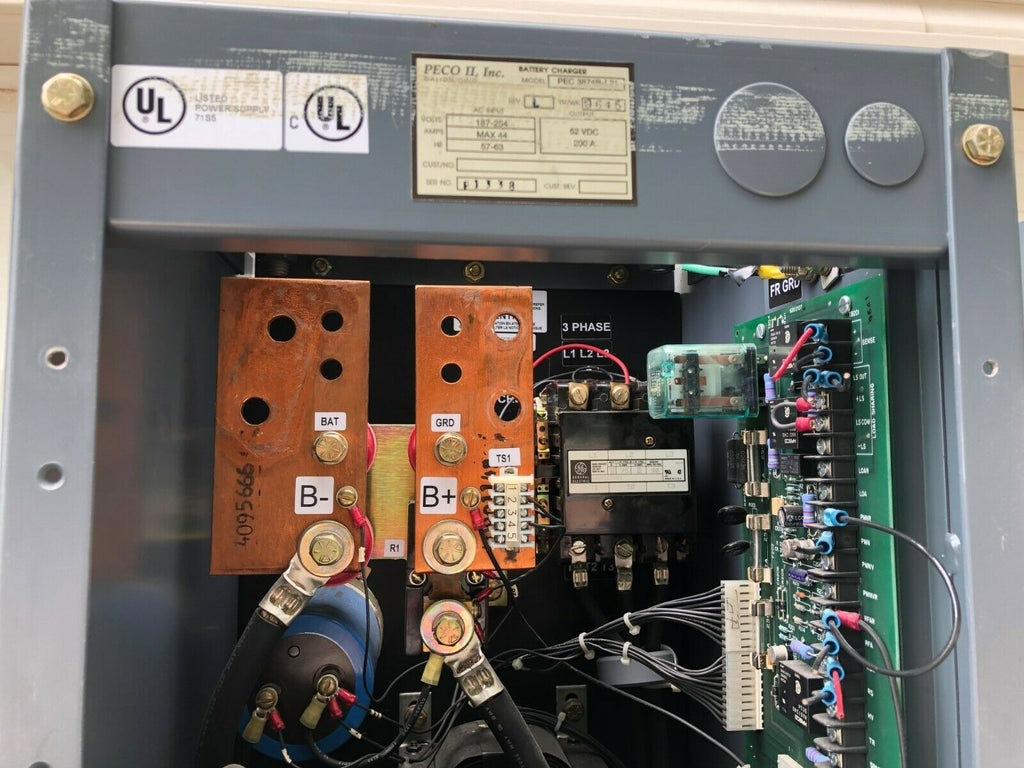

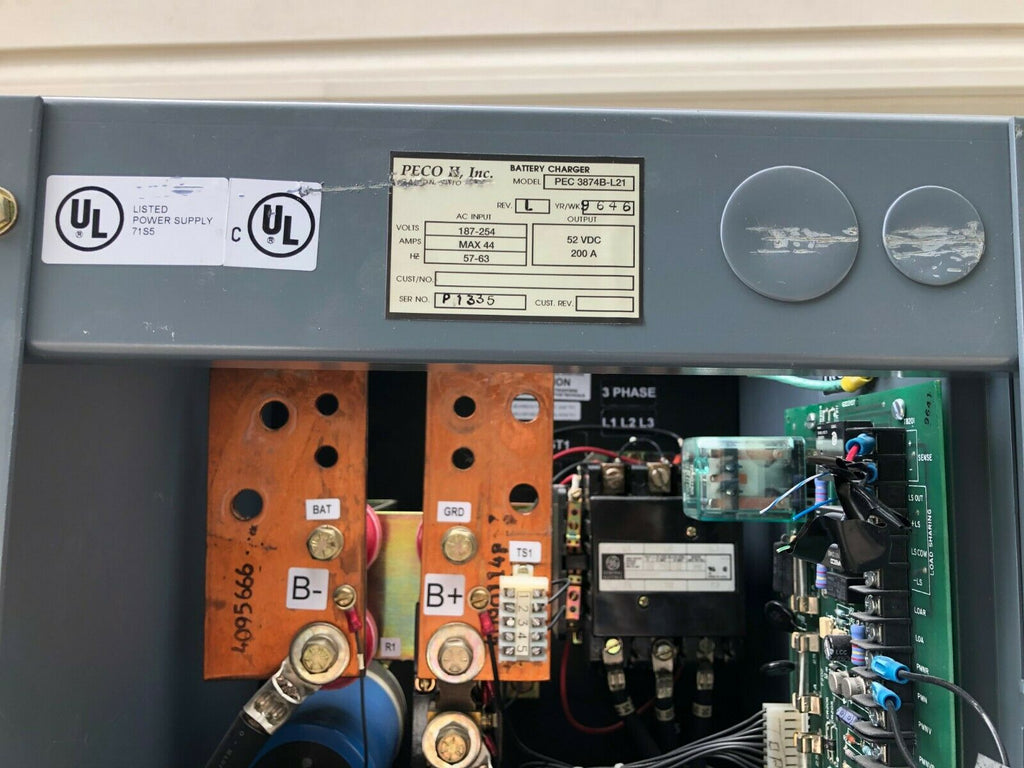

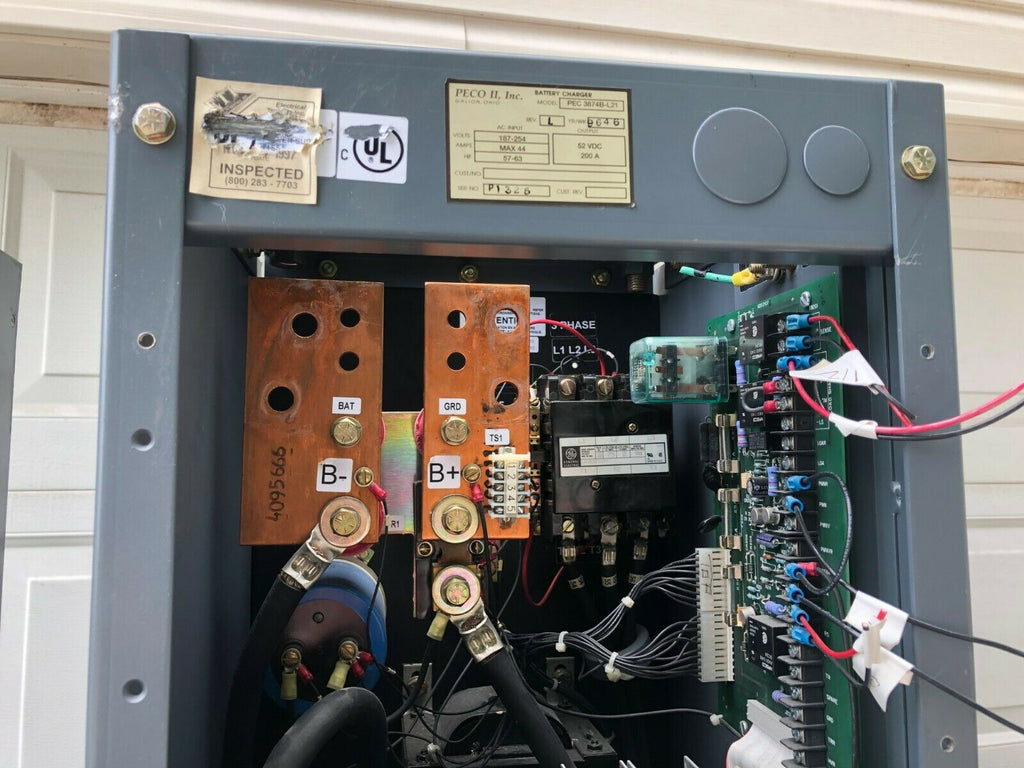

PEC3874B-L21 Peco II Inc Battery Charger 187-254v Ac Input 52VDC 200A Output
THESE WHERE REMOVED BY PROFESSIONAL ELECTRICIAN FROM A WORKING SYSTEM

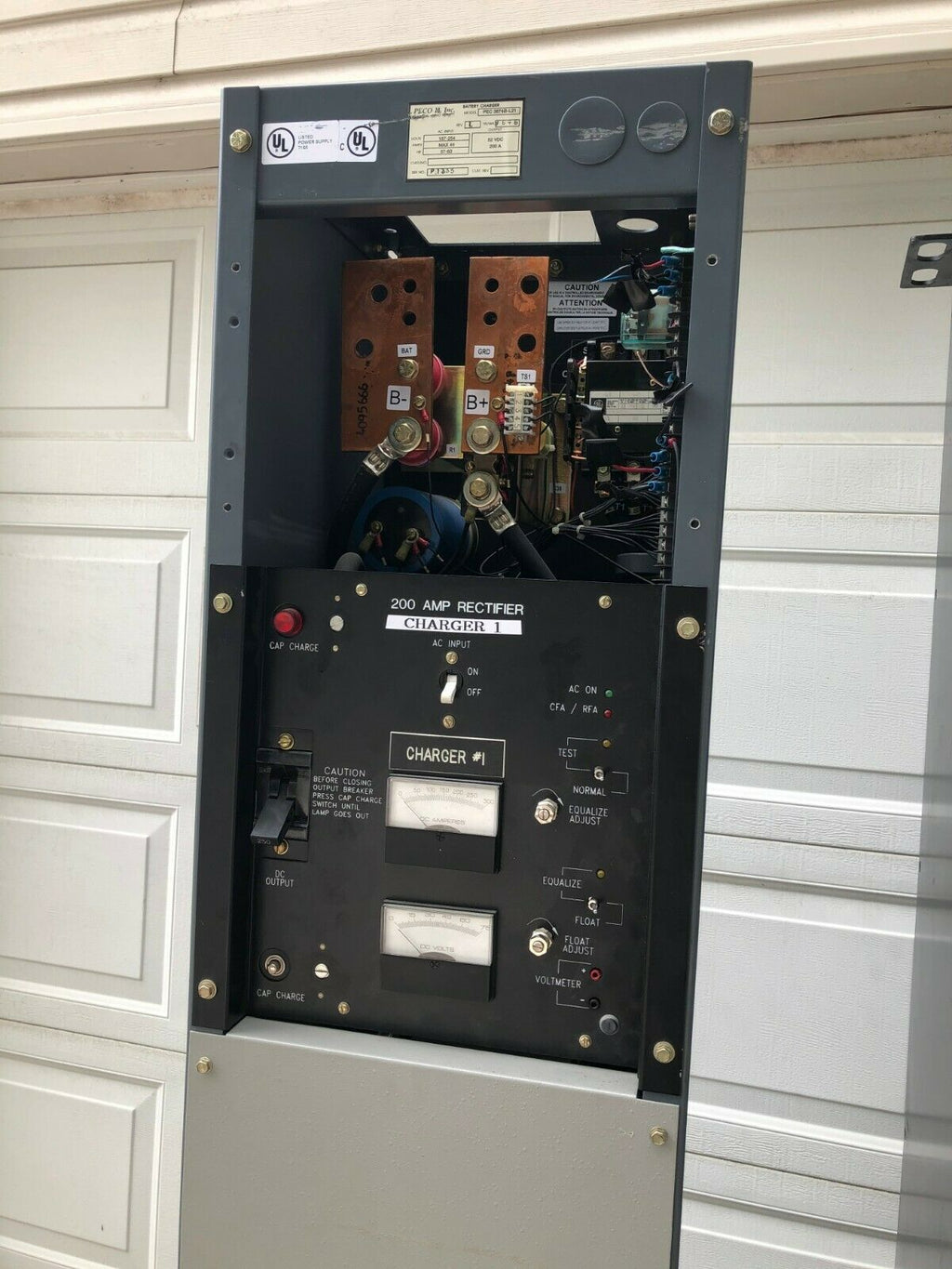

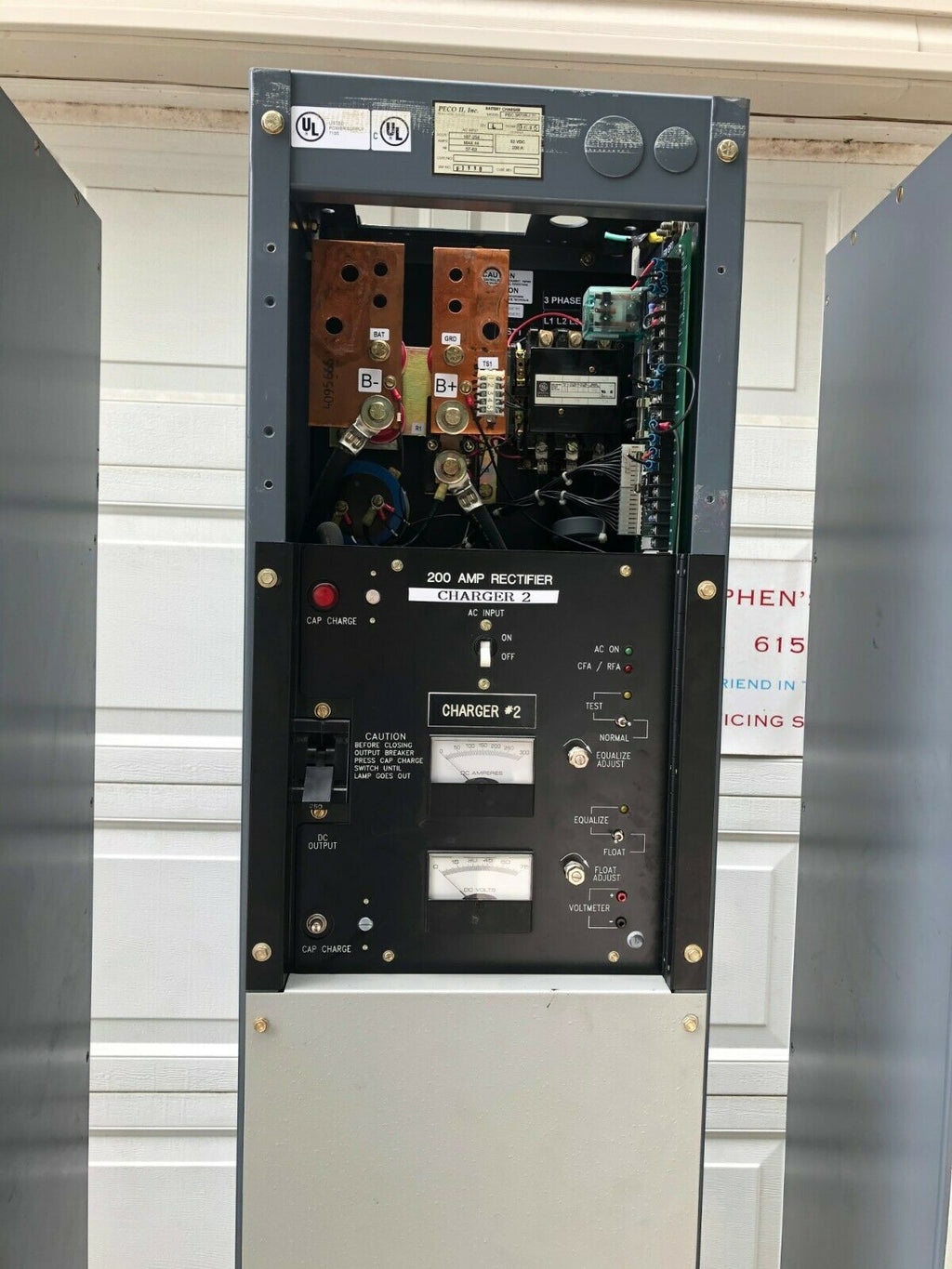

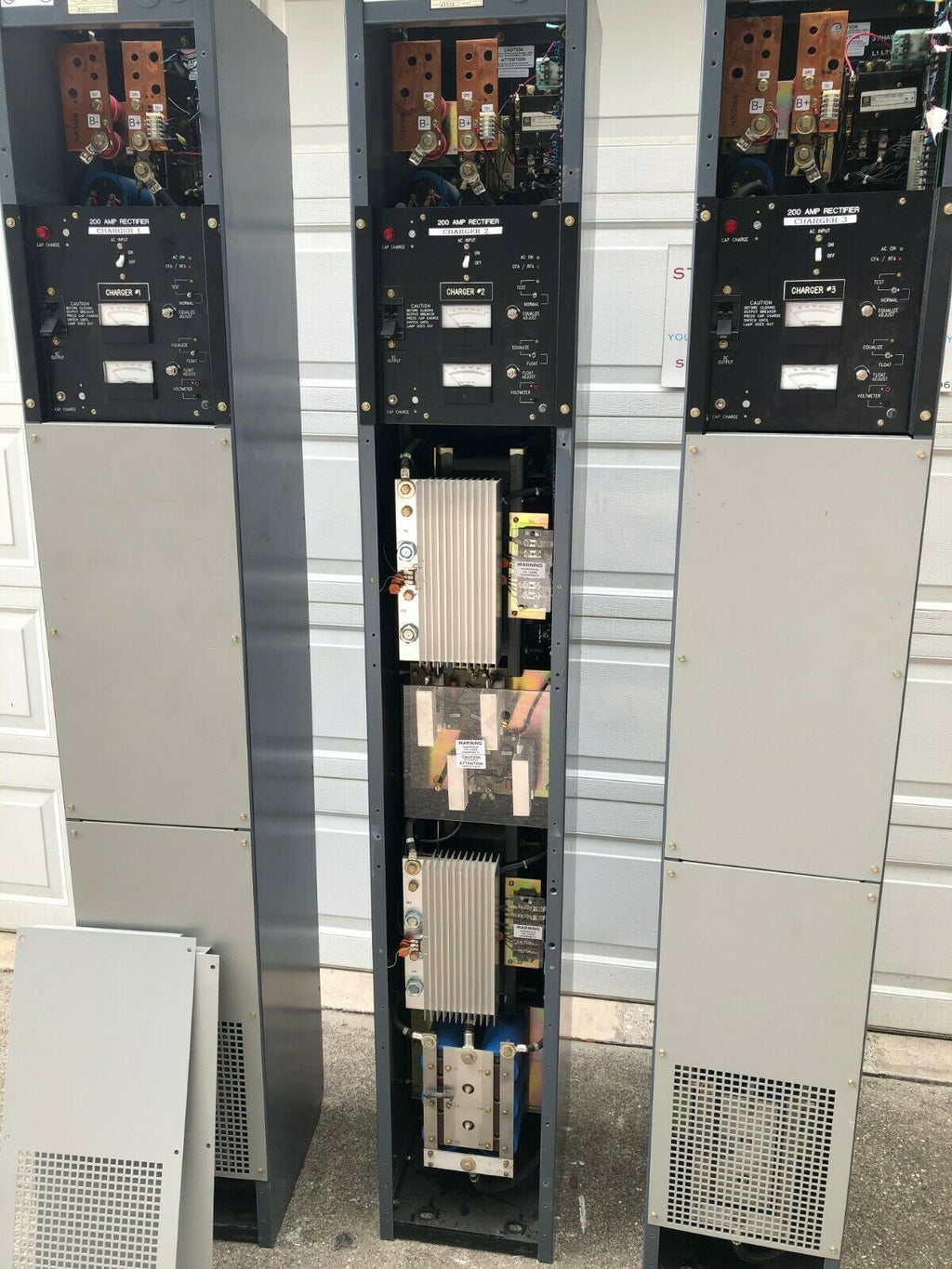

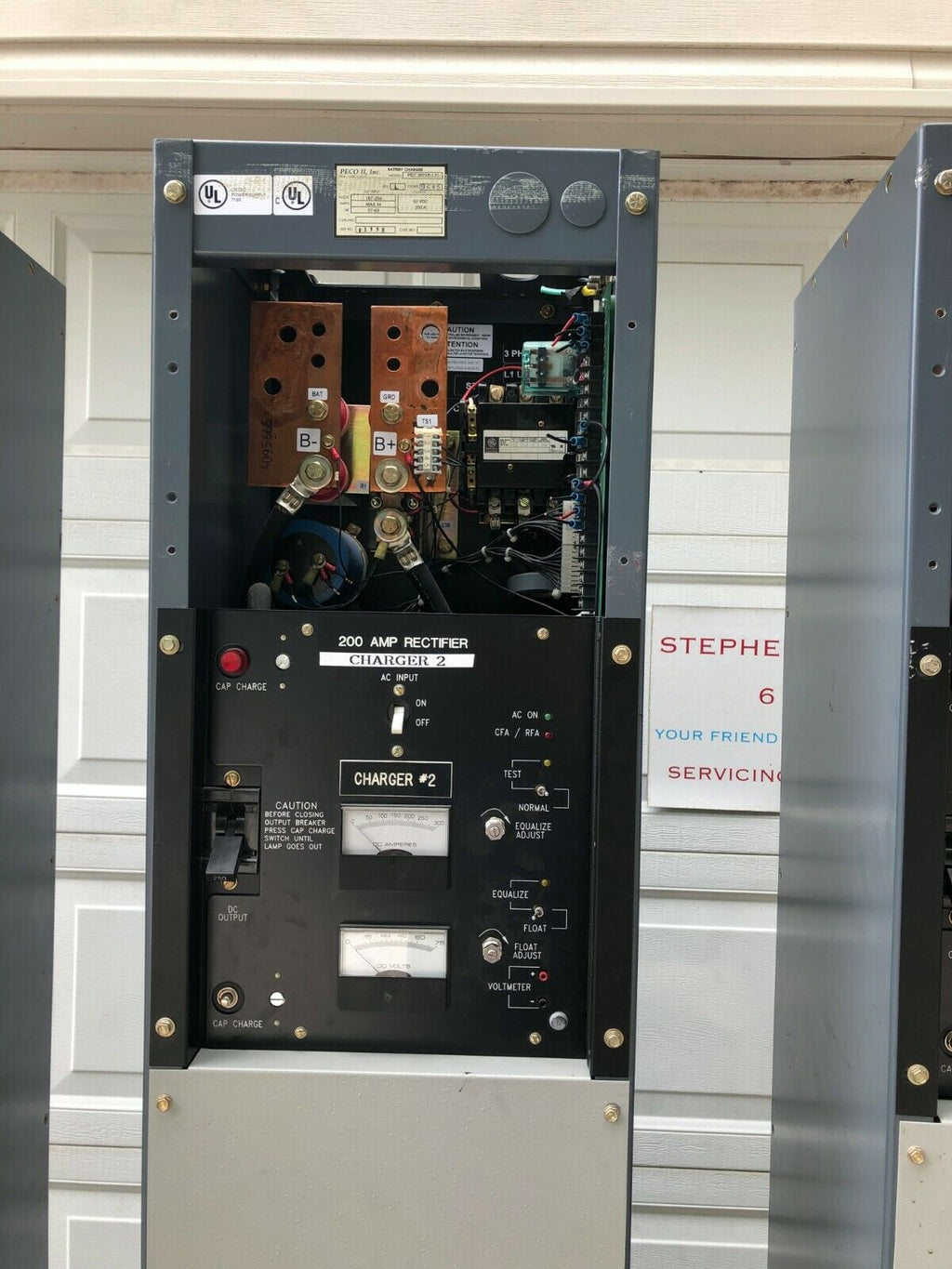

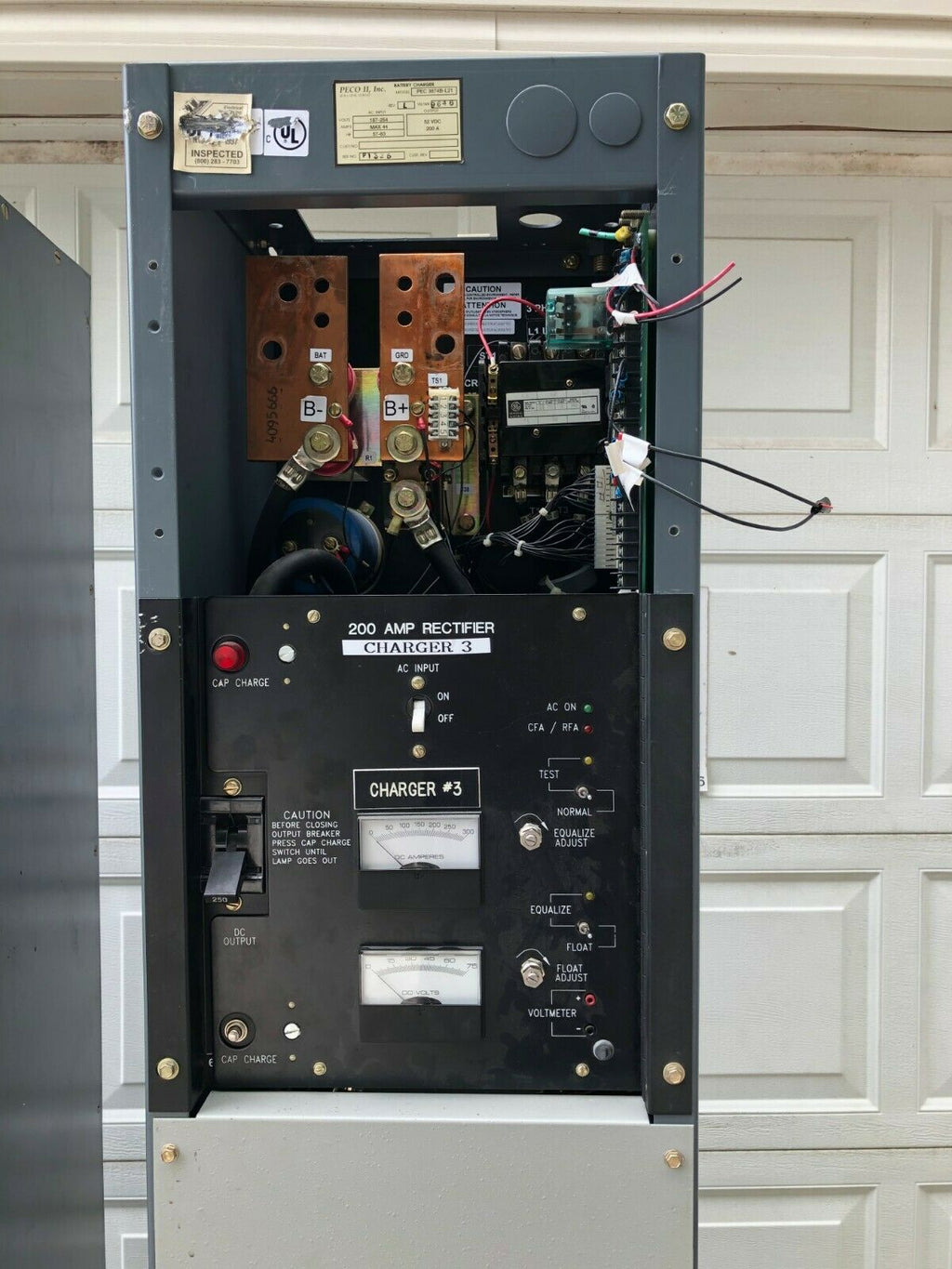

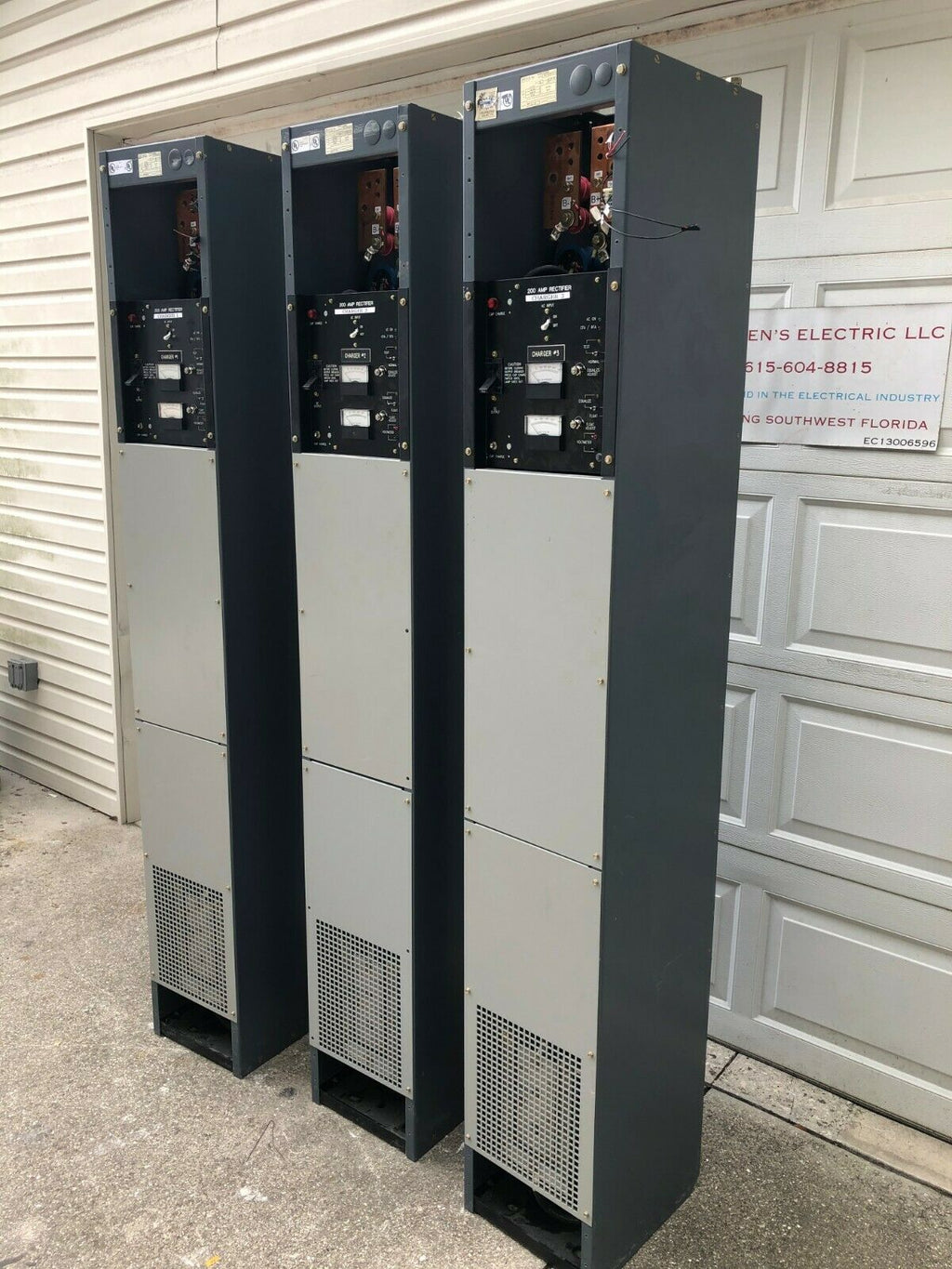

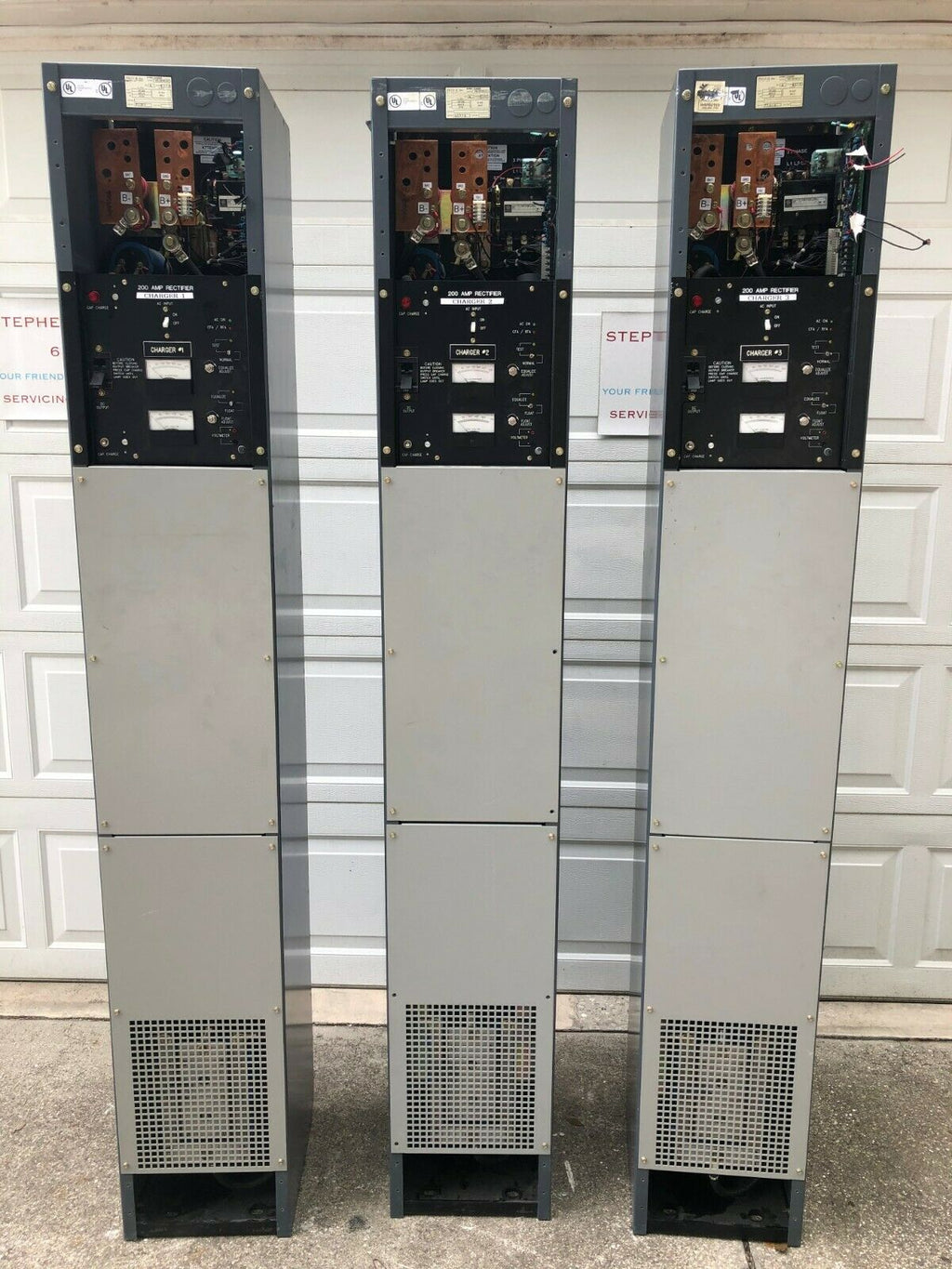

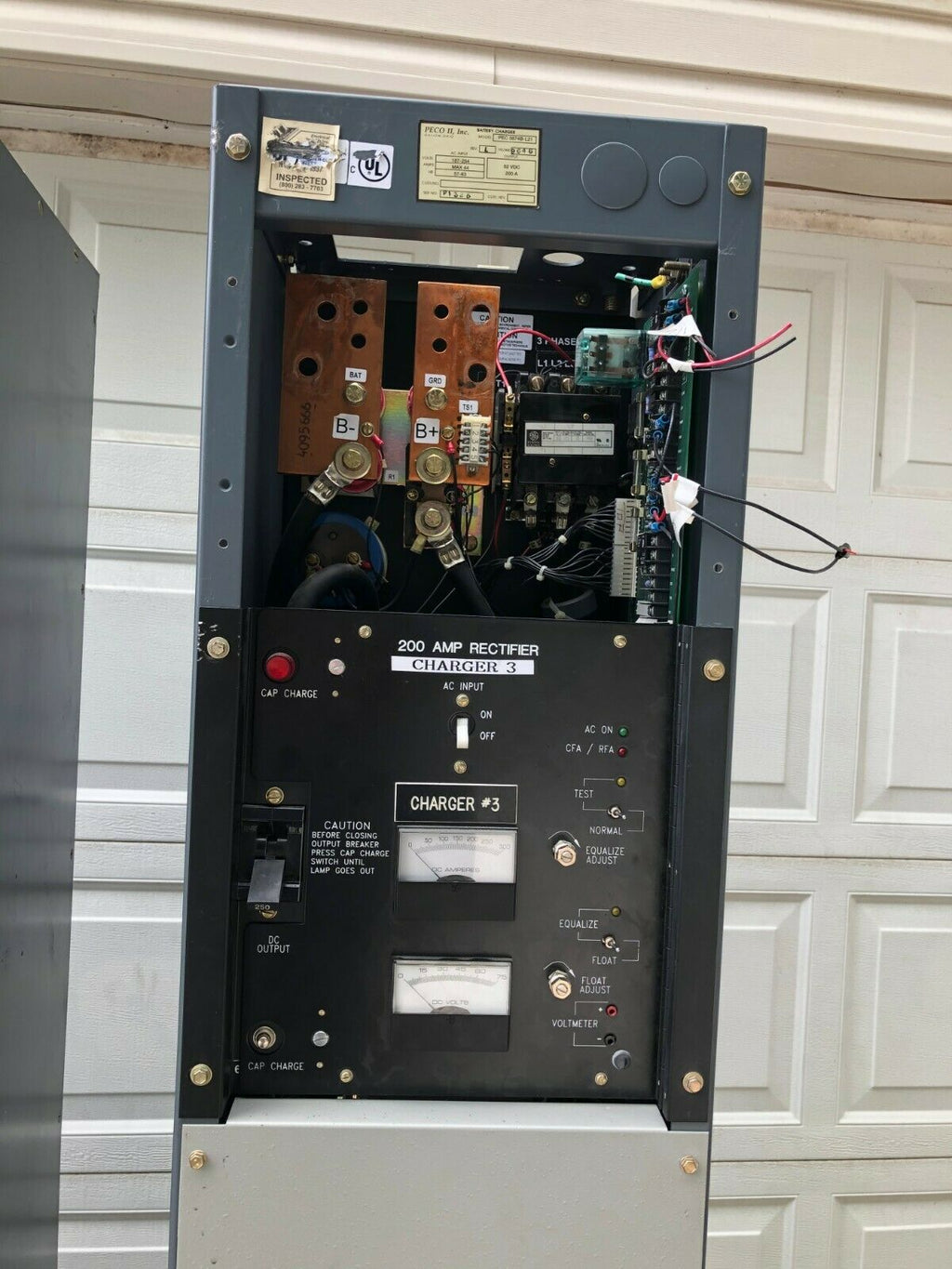

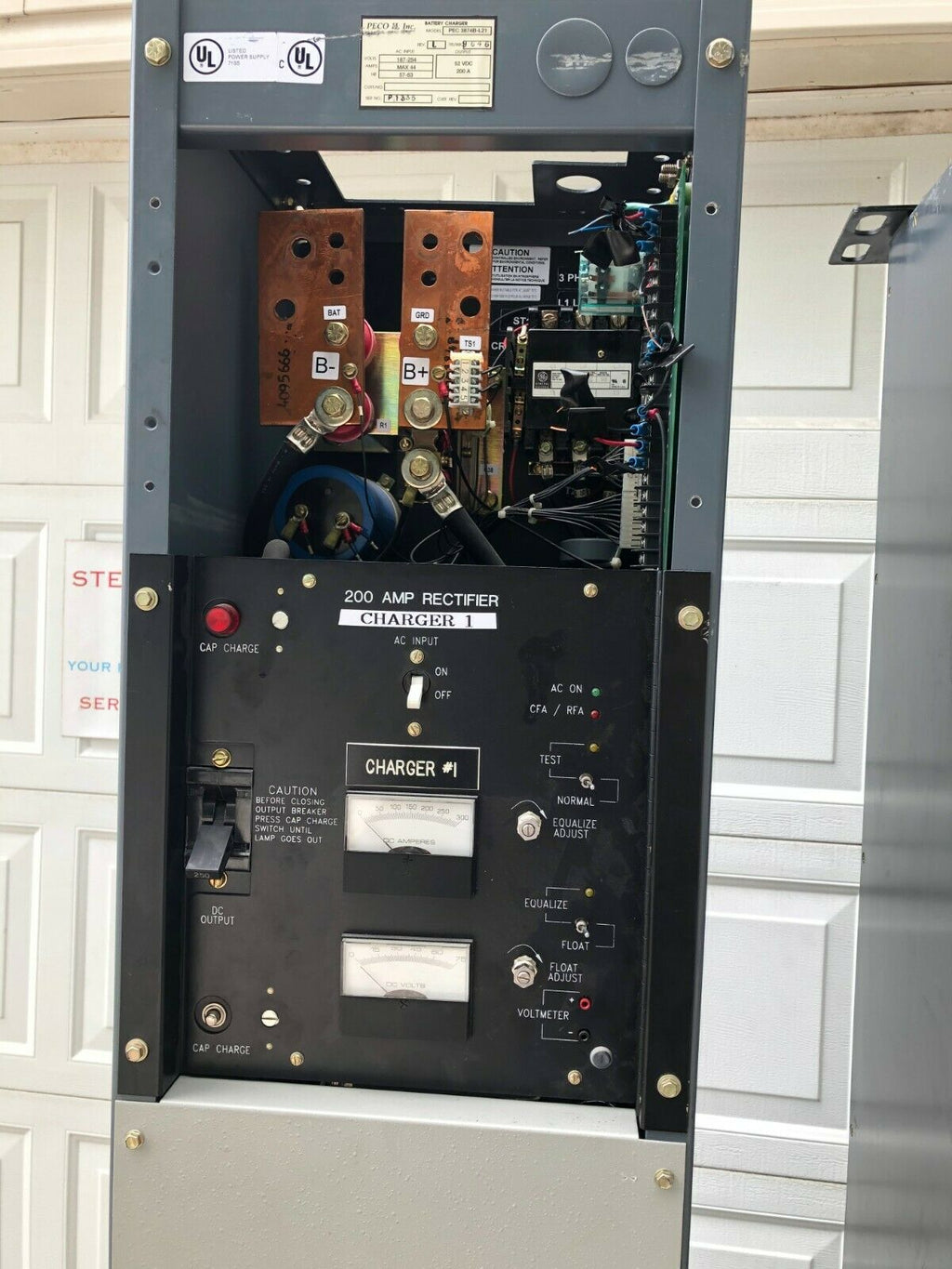

CHARGER# 1,2,3 WE HAVE 3 IN THIS STYLE
SHIPPING= FREIGHT WILL BE ARRAIGNED AFTER PURCHASE THESE WEIGH 800 IBS+/- EACH
This Rectifier is designed to float or equalize lead-acid battery strings of 23 or 24 cells of either the wet cell or sealed cell design. The reduced overall size of the unit allows more rectifiers to be installed in a given space. The controlled ferroresonant design of this unit provides an efficient and cost effective approach to power conversion with the benefits of enhanced reliability, reduced TIF and RFI, improved power factor, and high immunity to transients.
• COMPLIES WITH BELL STANDARDS
• COMPLIES WITH GTE STANDARDS
• UL LISTED AND CSA CERTIFIED
• STAND ALONE OR PLANT CONTROLS
• ANALOG VOLT/AMP METERING
• 220 OR 480 VAC INPUT VOLTAGE
• POSITIVE/NEGATIVE LOAD SHARING
• REMOTE/LOCAL CONTROL
• FRONT ACCESS DESIGN
• SLIM LINE FREE STANDING
Remote Sense Voltage Control: yes
Output Capacitor Precharge Switch: yes
Test Mode Switch: yes
Float Adjust Range: 48–56
VDC Setting: 52.08
VDC Equalize Adjust Range: 50–57
VDC Setting: 54.00
VDC Load Sharing: 0.25
VDC @ no load,8
VDC @ full load (neg.), or 10 VDC @ no l
Internal High Voltage Shutdown: yes
Setting: 55.00 VDC Lockout: yes
External High Voltage Shutdown: yes, (when above low current level
