Description

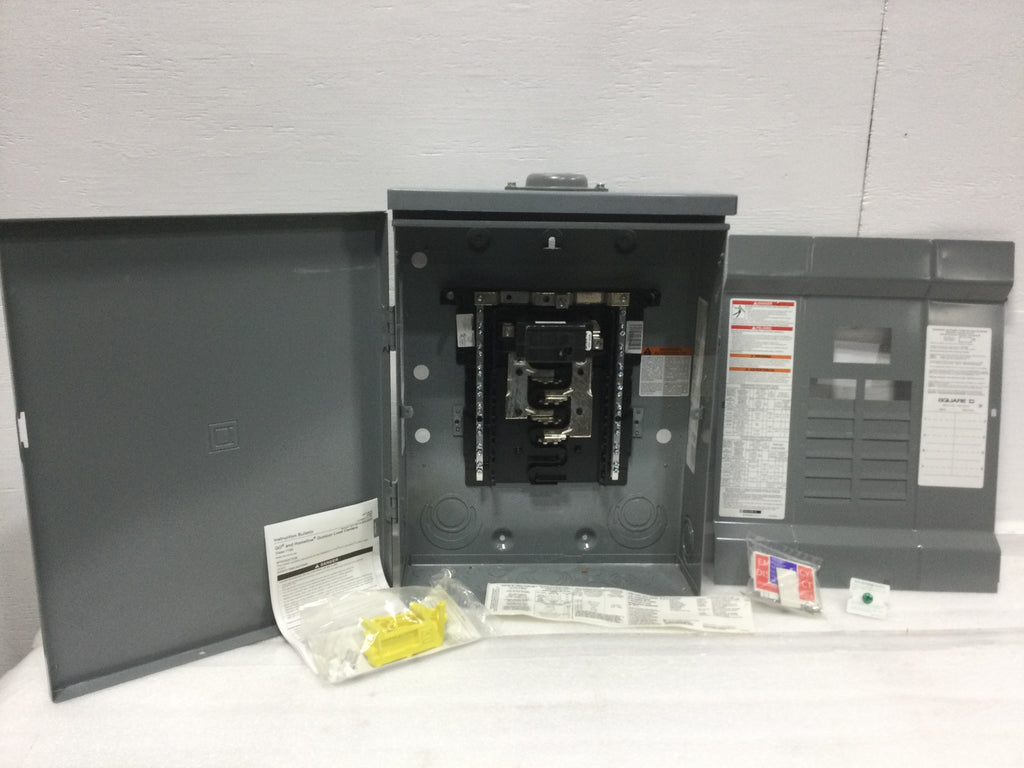

The Square D Homeline HOM816M100PRB is a load center designed for residential and industrial use to protect electrical systems, equipment, and people. Here are the key specifications:
- Load Center Type: Main Breaker
- Rated Current: 100A
- Number of Spaces: 8
- Maximum Number of Single Pole Circuits: 16

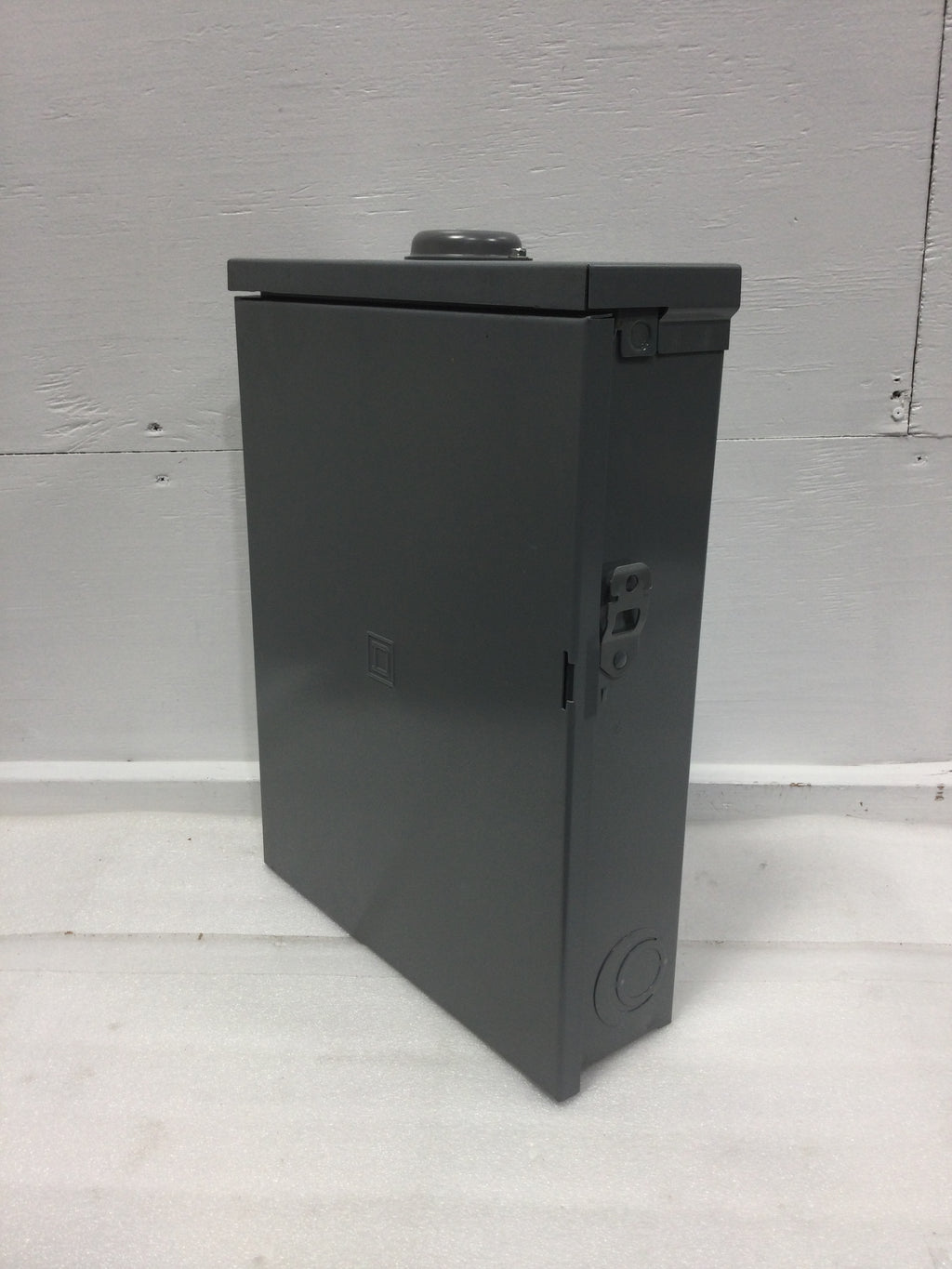

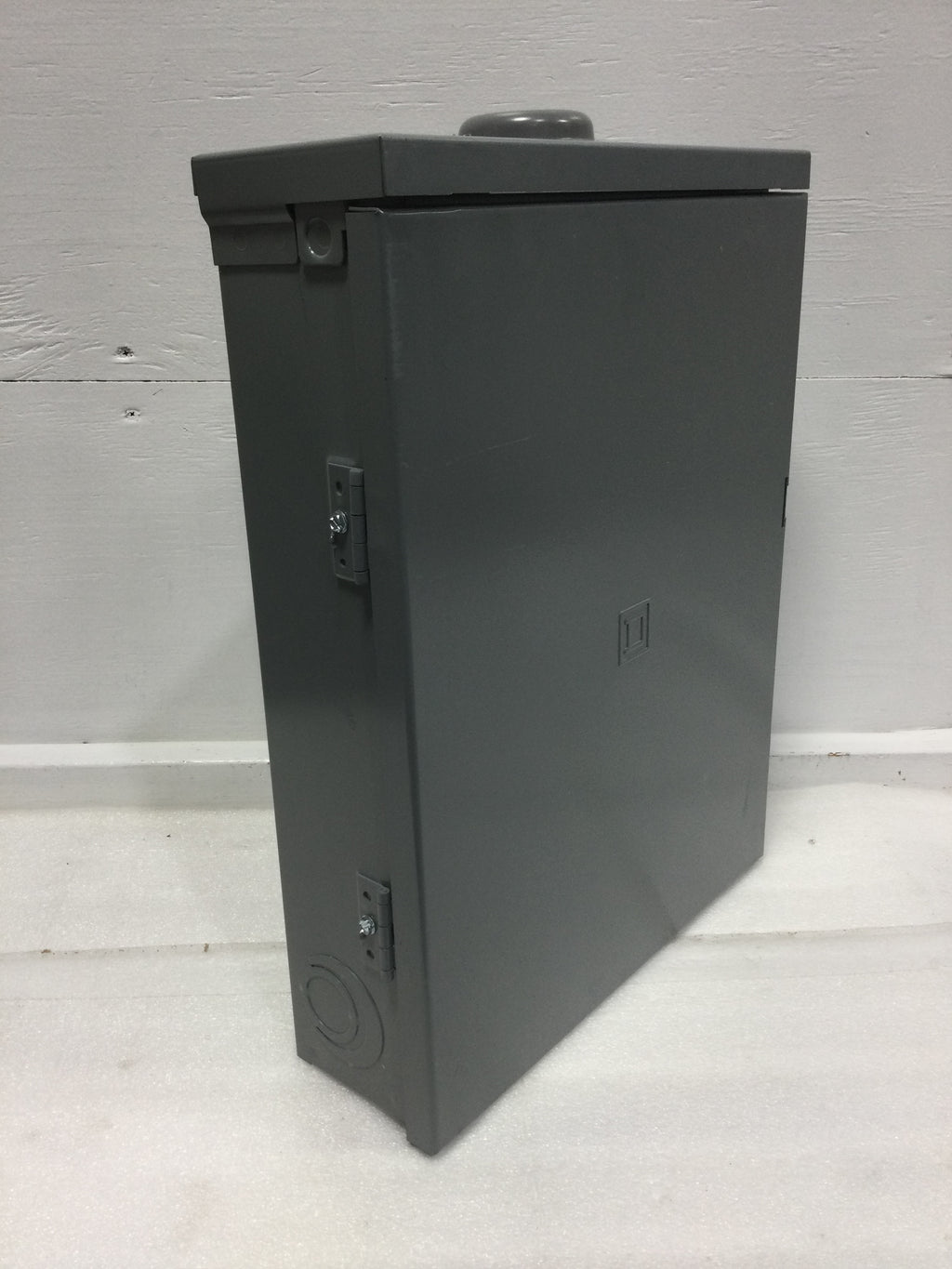

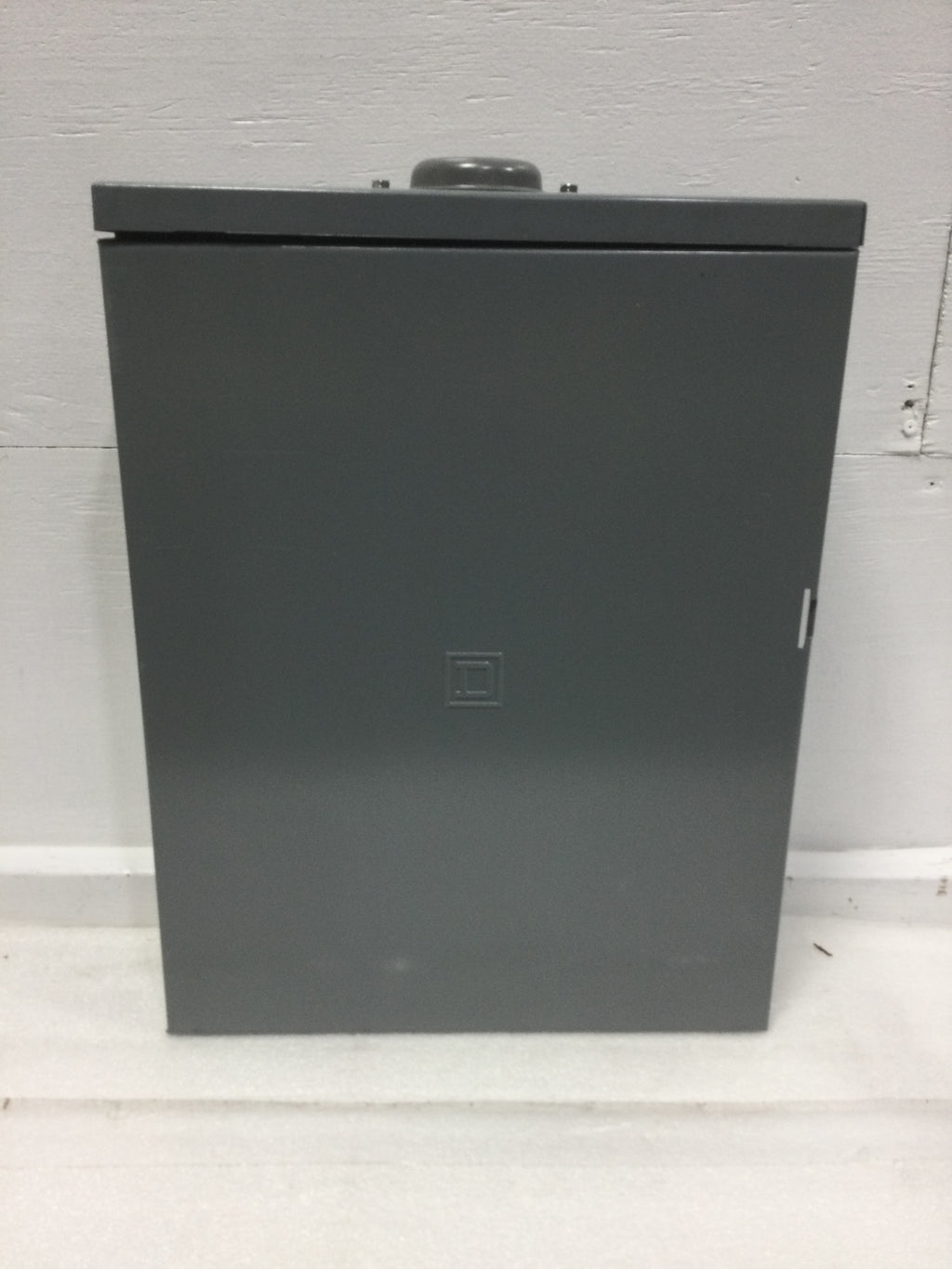

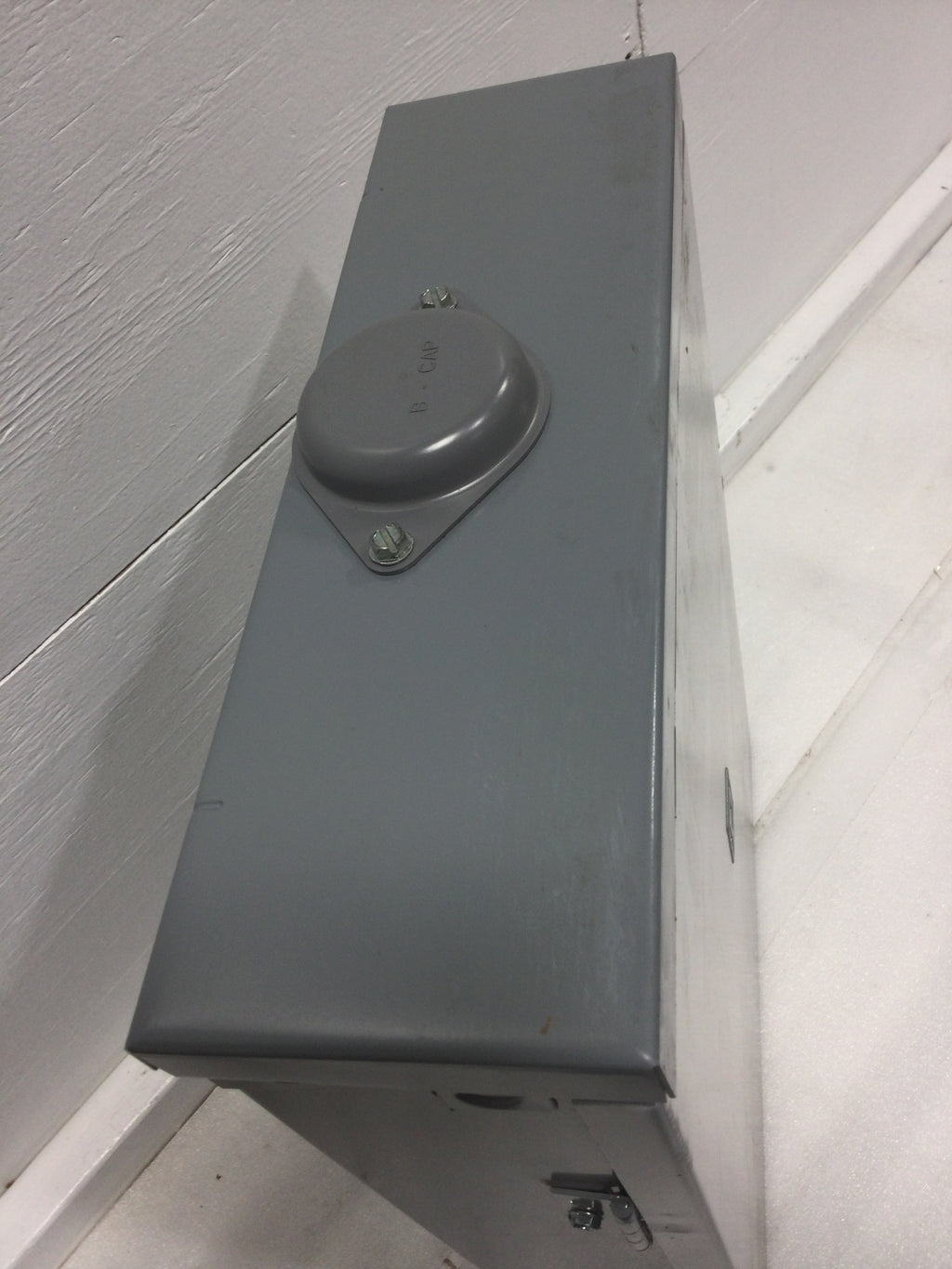

- Enclosure Rating: NEMA 3R (Outdoor)
- Cover Type: Surface cover
- Electrical Connection: Lugs
- Max Short Circuit Current Rating: 22 kA
- Number of Phases: 1 phase
- Voltage Rating: 120/240 VAC
- Wire Size: AWG 6…AWG 2/0 aluminum, AWG 6…AWG 1 copper
- Wiring Configuration: 3-wire
- Busbar Material: Tin-plated aluminum

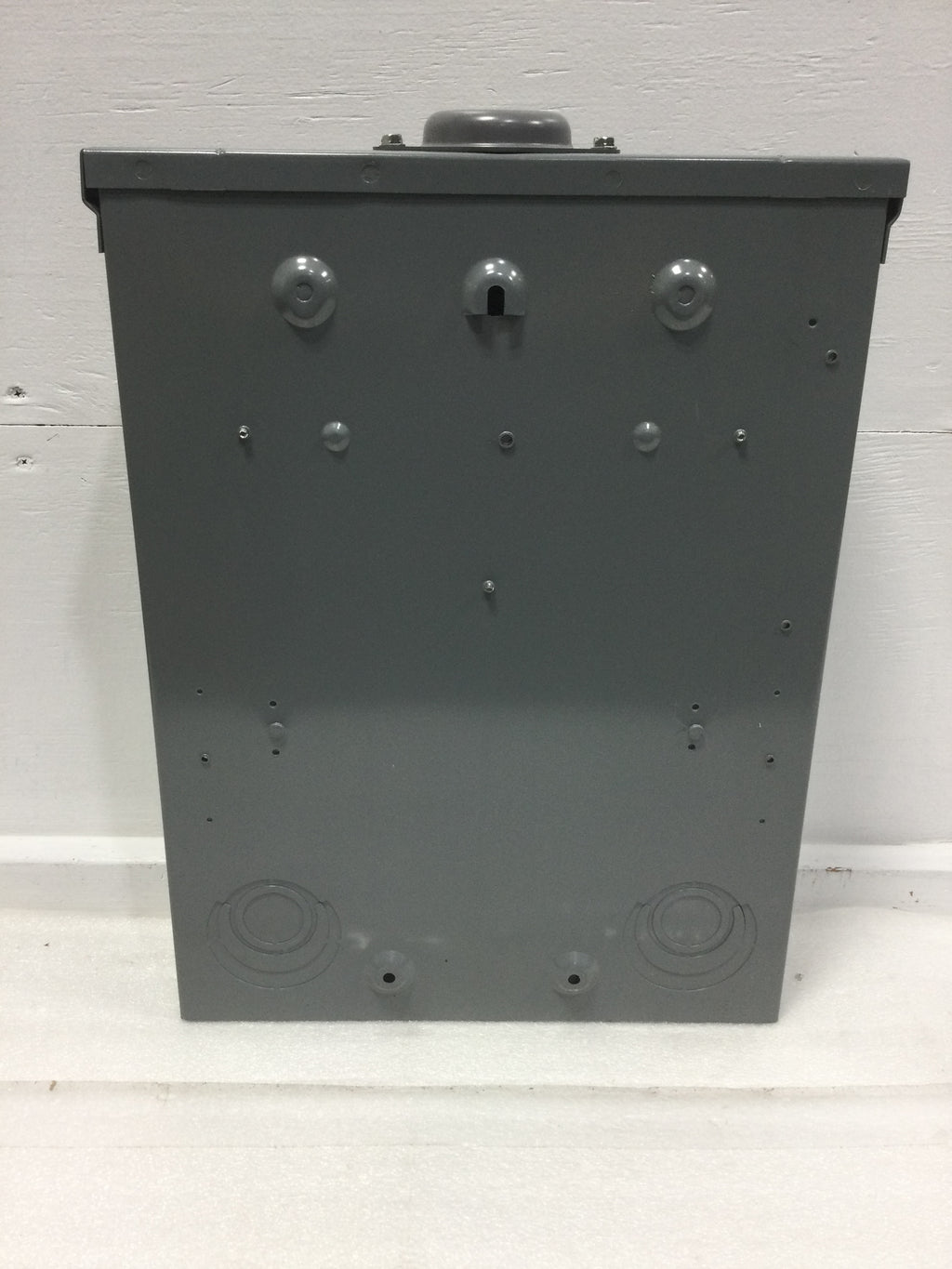

- Enclosure Material: Welded galvannealed steel
- Surface Finish: Baked enamel Gray
- Box Number: 3R

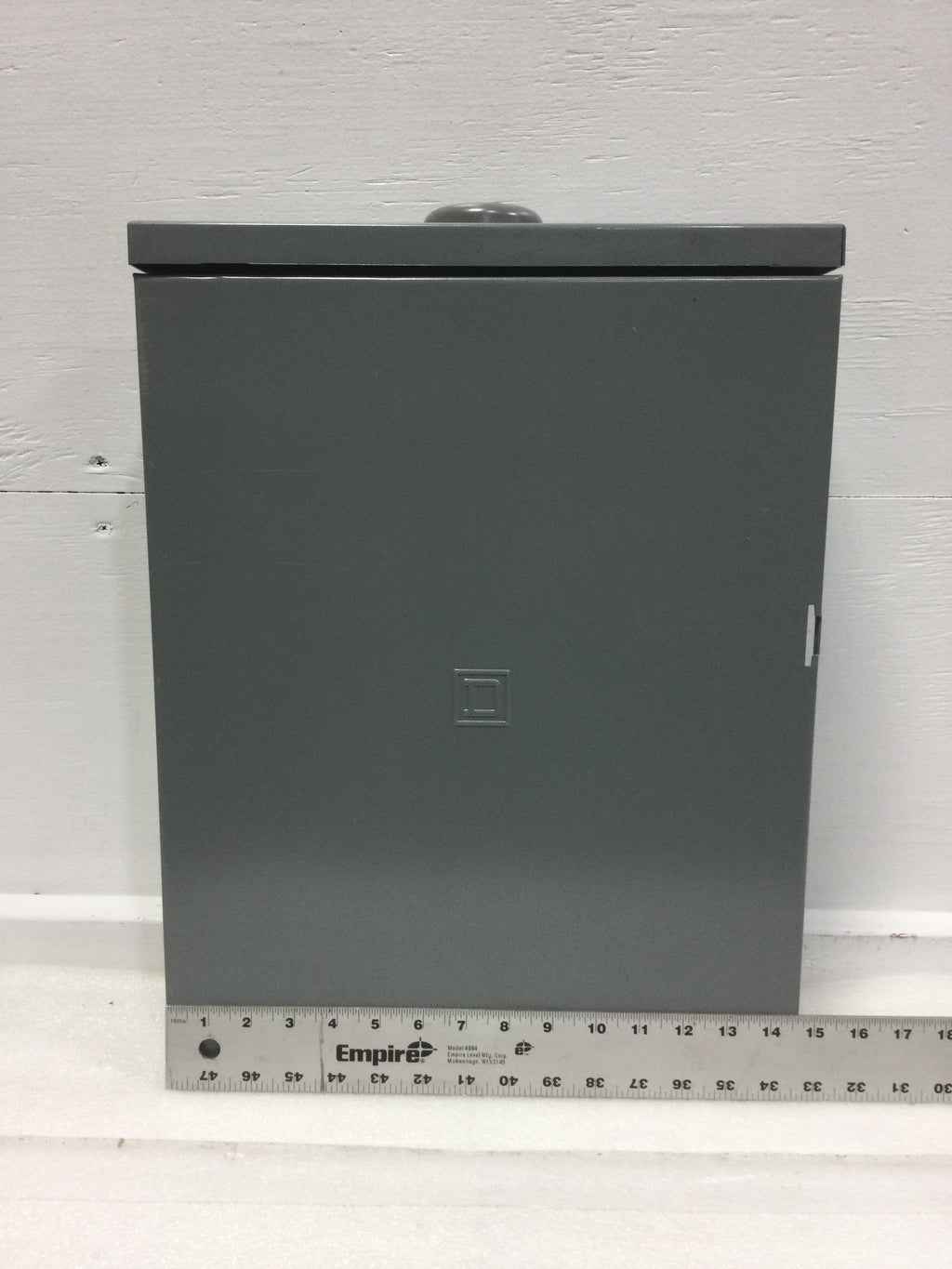

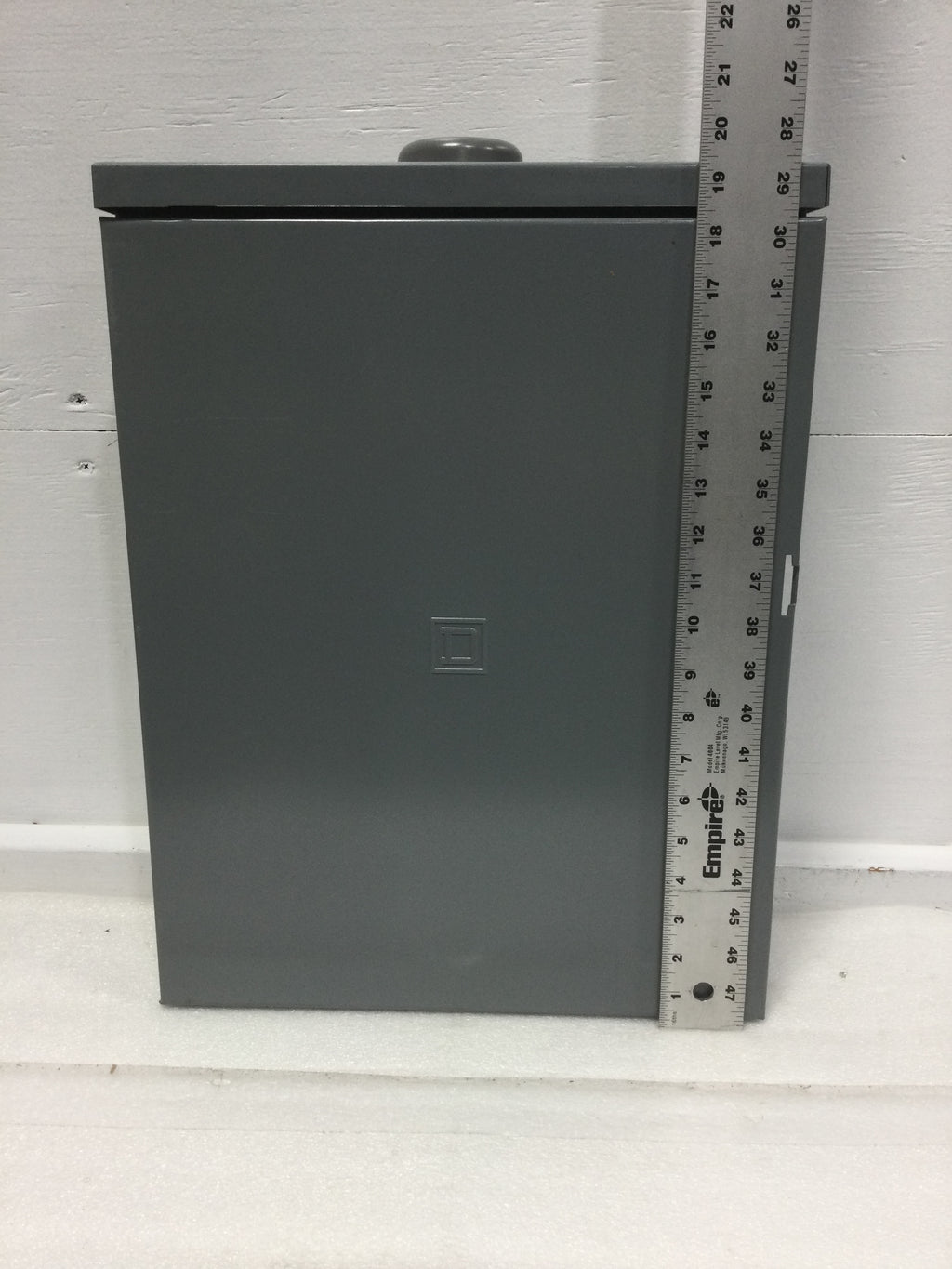

- Height: 18.92 inches
- Width: 14.75 inches
- Depth: 4.52 inches

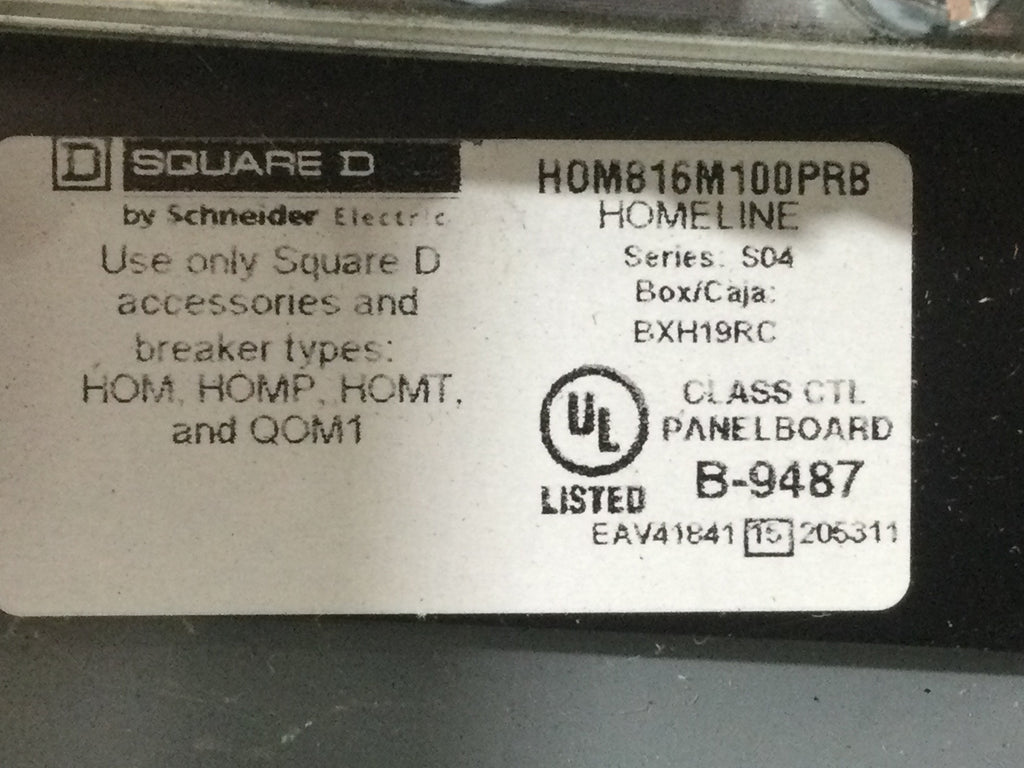

- UL Listed: Yes

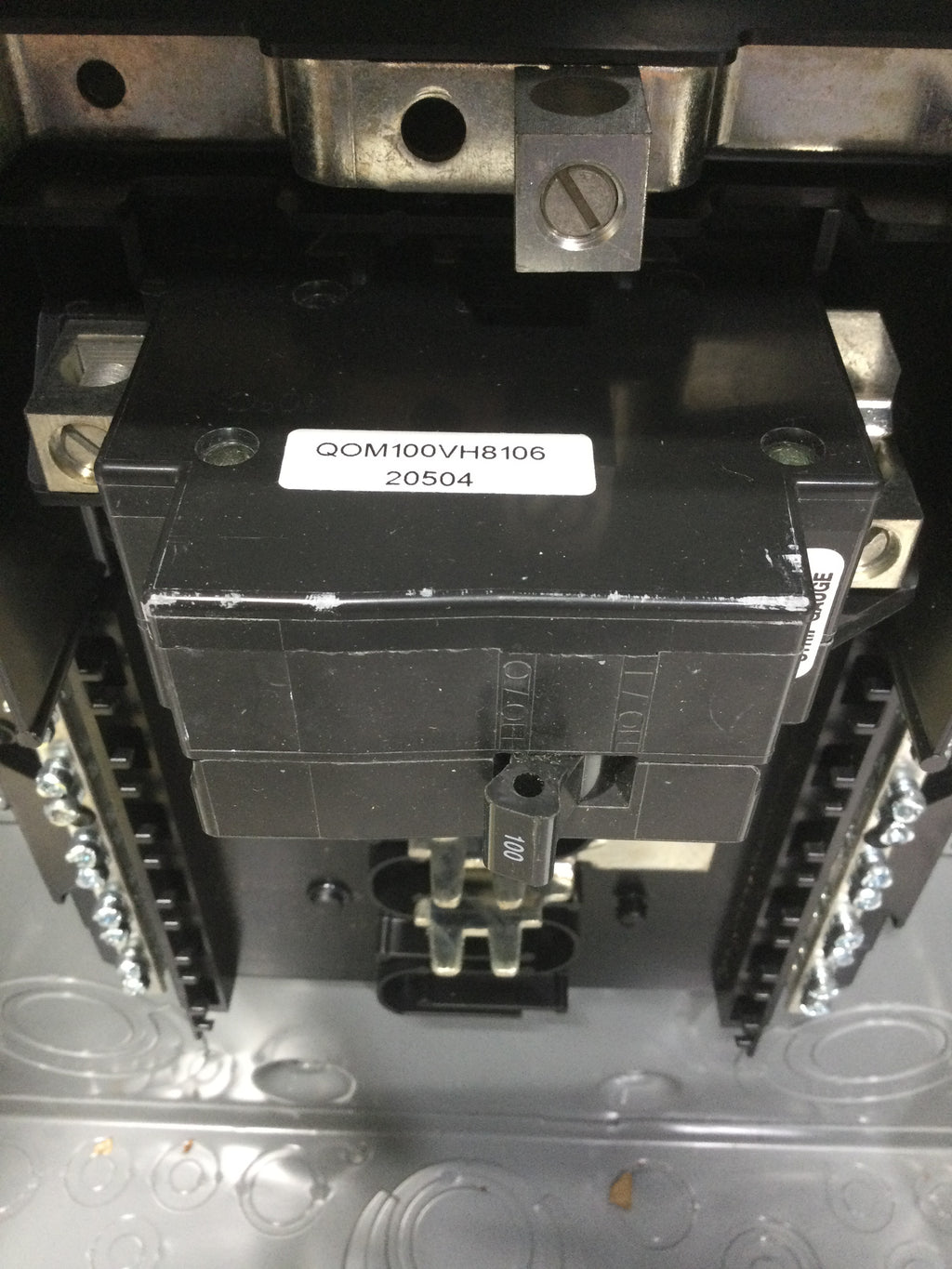

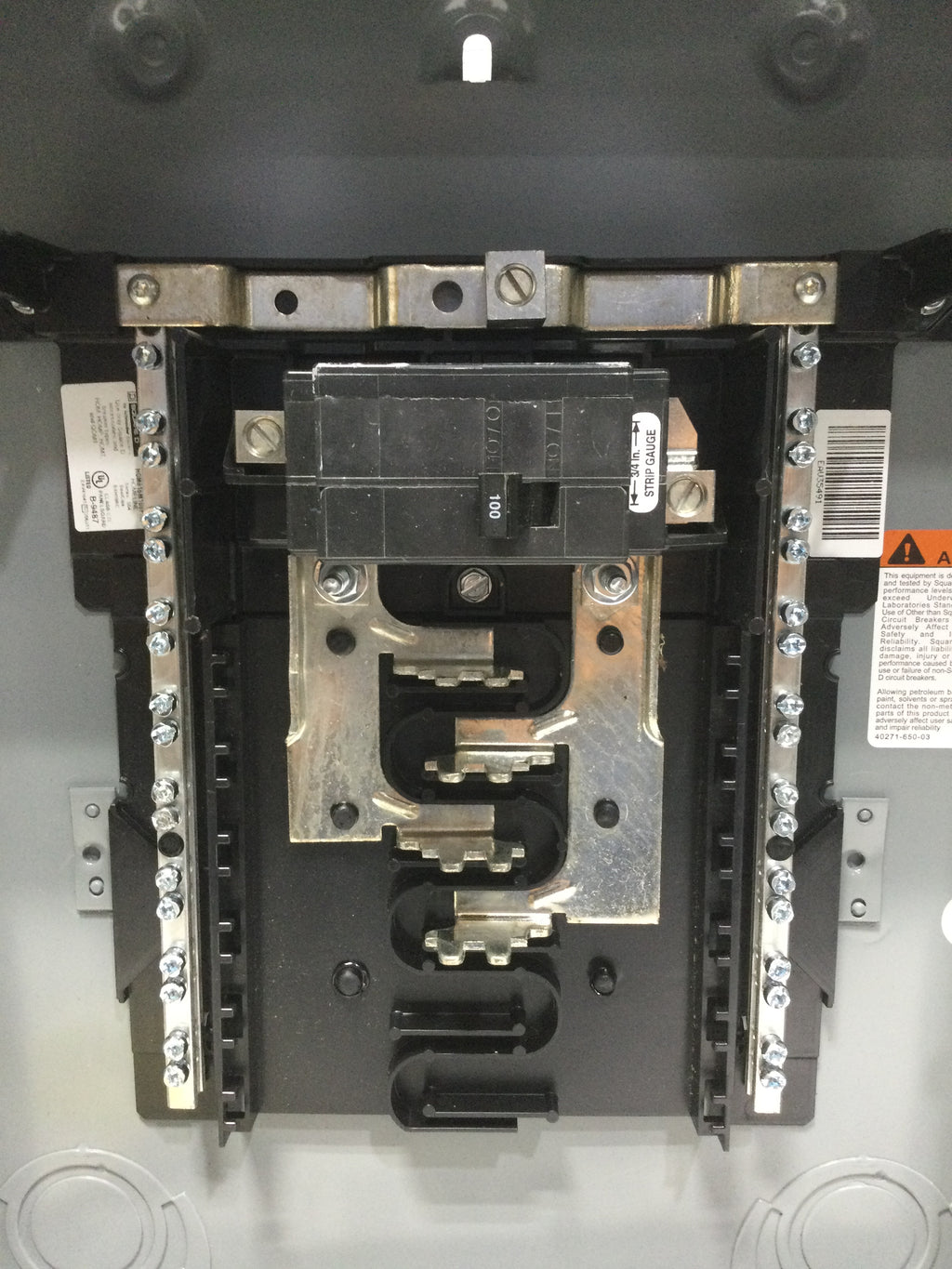

This load center features a two-pole plug-on neutral main supply circuit breaker rated at 100A 120/240 VAC single phase. It provides 8 spaces within a NEMA 3R rainproof enclosure and accepts a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum It’s a reliable choice for efficient power distribution and circuit protection.
