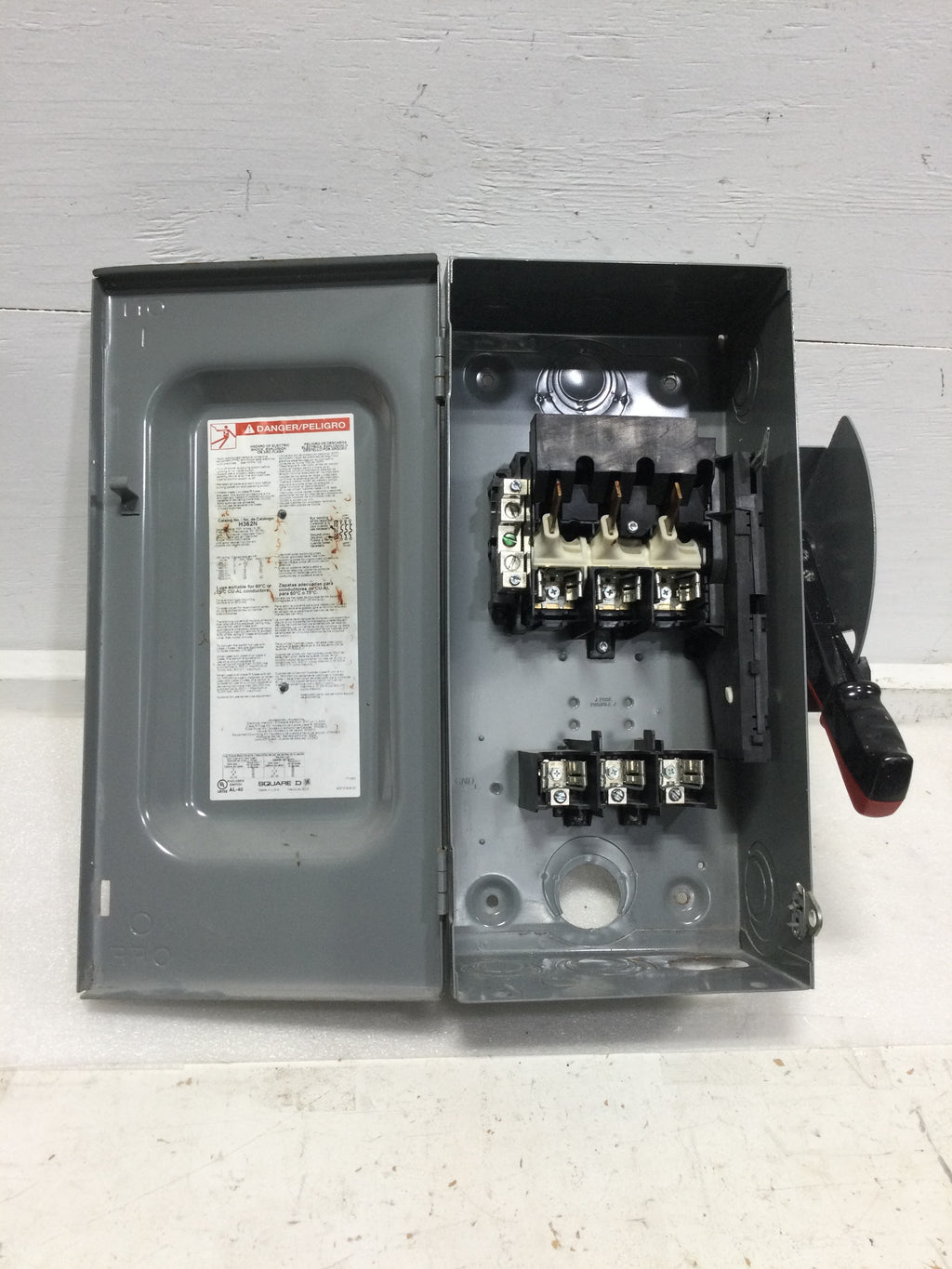

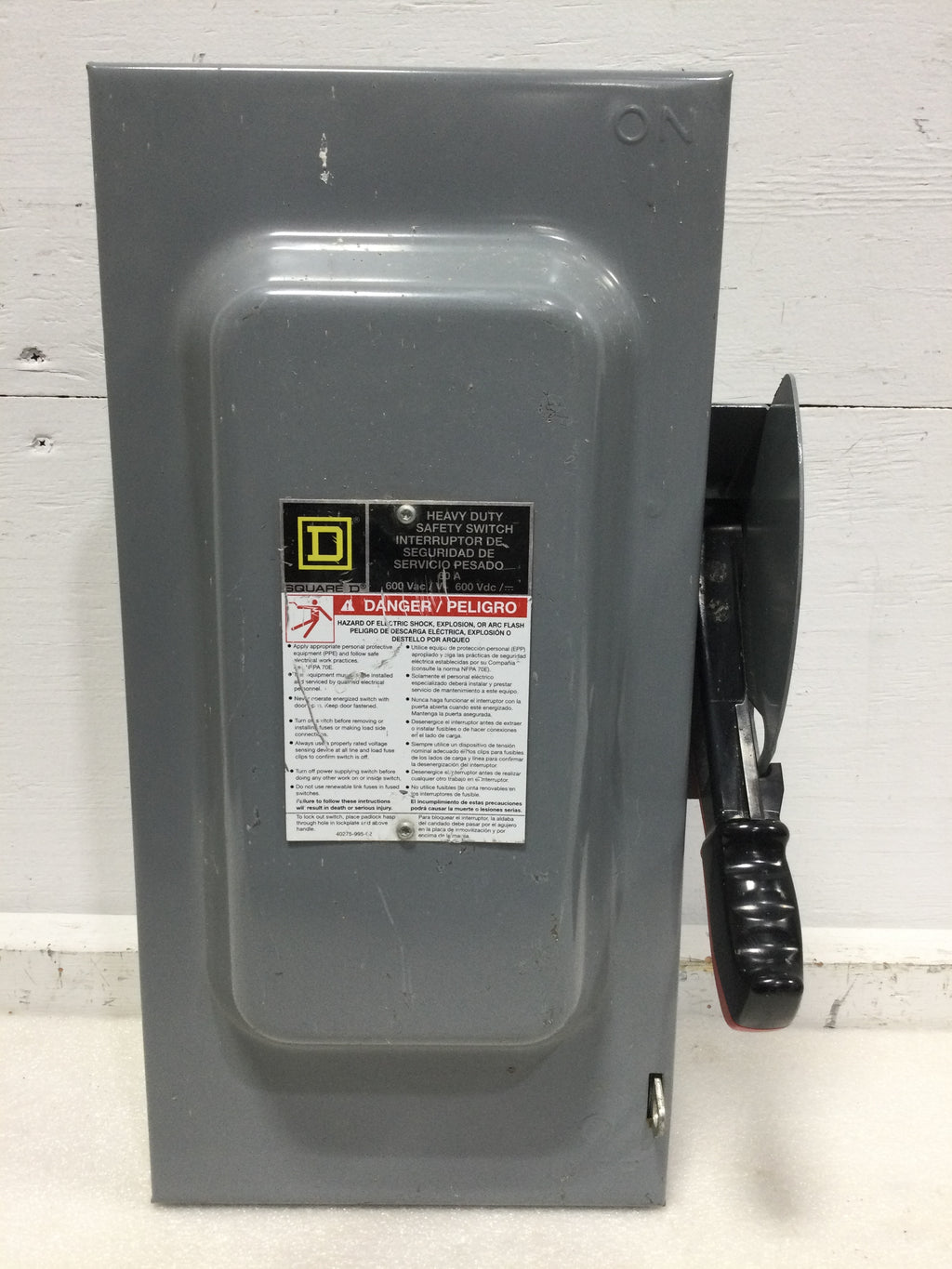

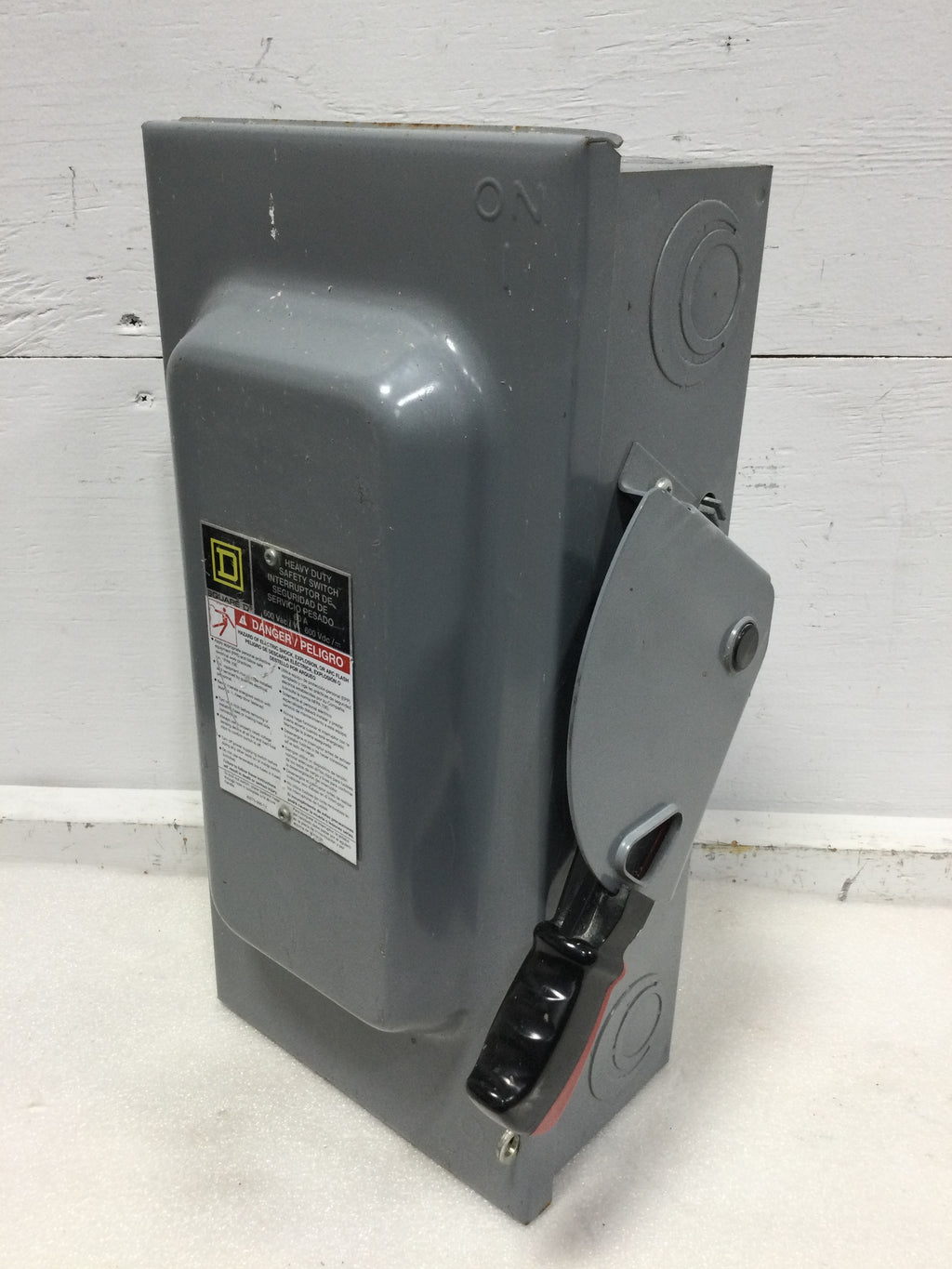

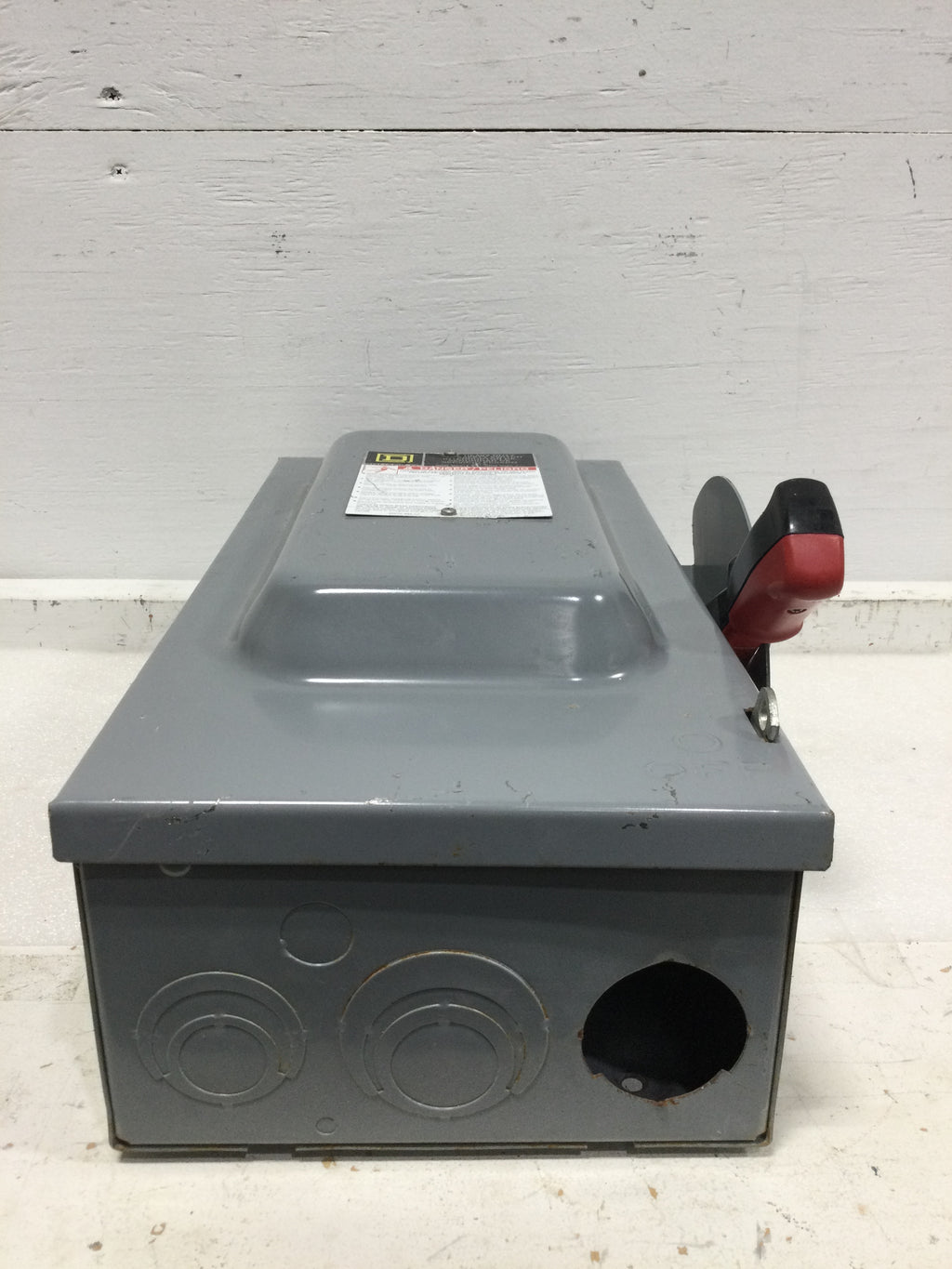

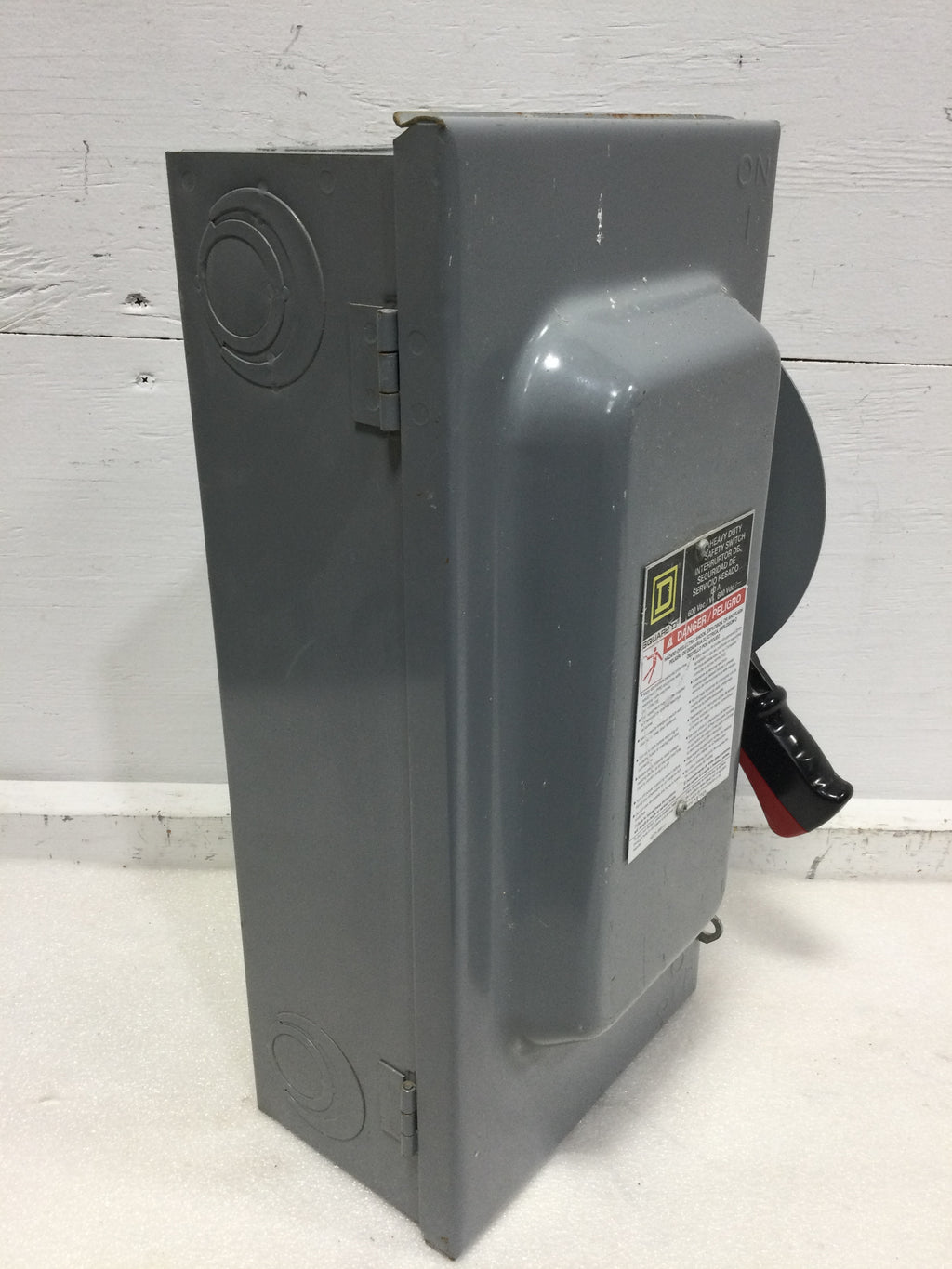

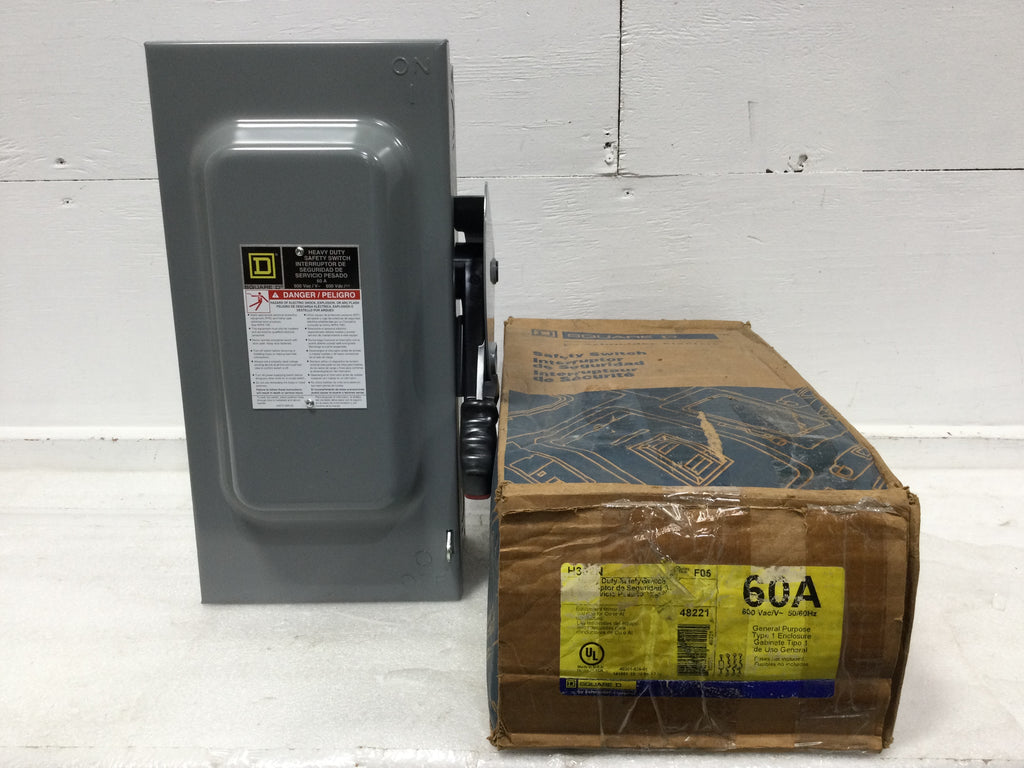

Square D H362N 3 Pole Fused 60A 600VAC Type Nema1 Safety Switch

Square D H362N 3 Pole Fused 60A 600VAC Type Nema1 Safety Switch

The Square D™ H362N is a heavy-duty safety switch designed to withstand challenging conditions. Here are the key specifications:

• Rating: It is a fusible safety switch with a rated current of 60A.
• Voltage: Operational voltage ratings are 600VAC/DC.
• Enclosure: The enclosure is made of steel and includes a neutral (factory installed).
• Short Circuit Current Rating: It has a short circuit current rating of
  • 10kA to 200kA.

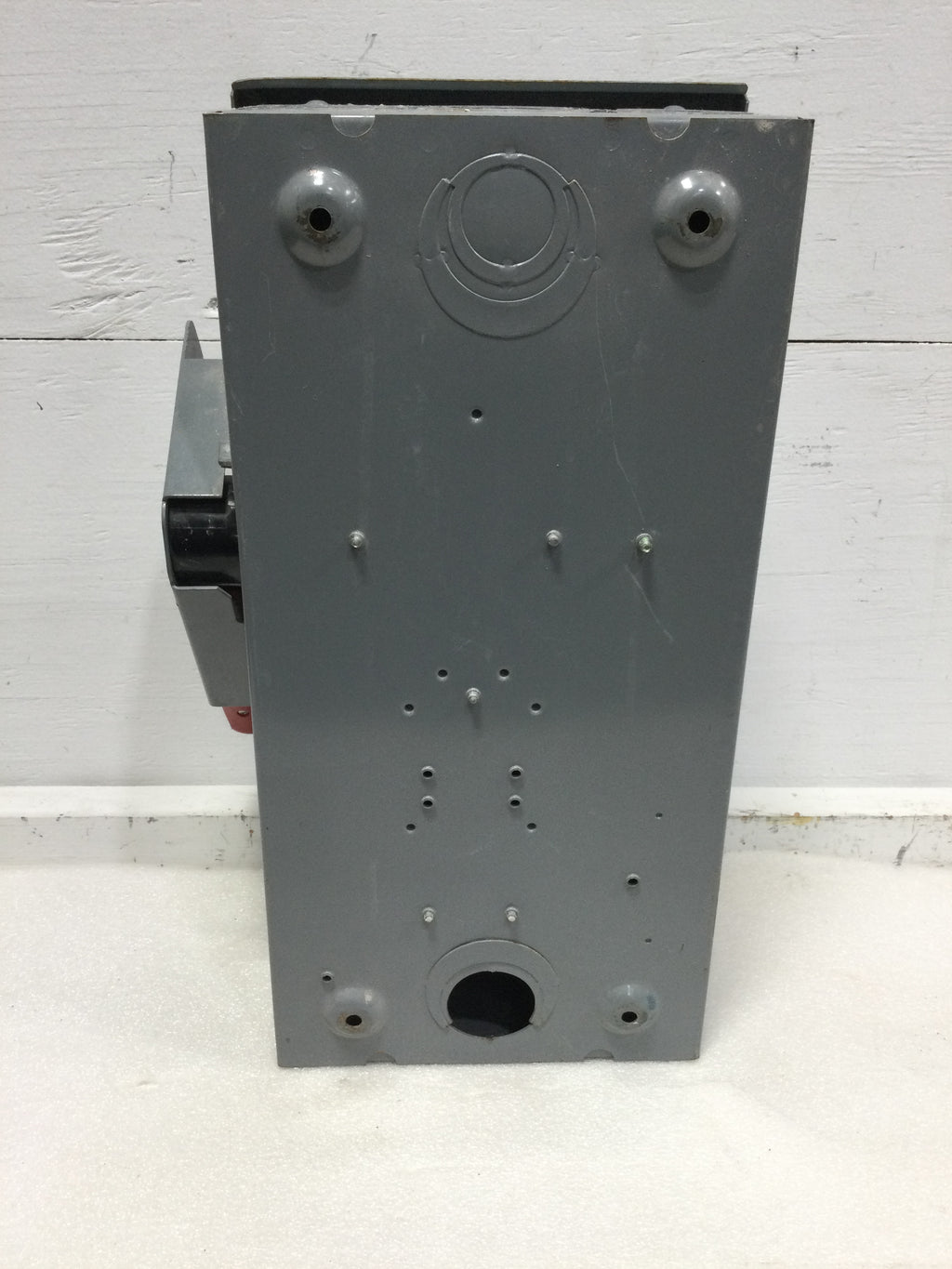

  • Mounting: Surface-mounted.

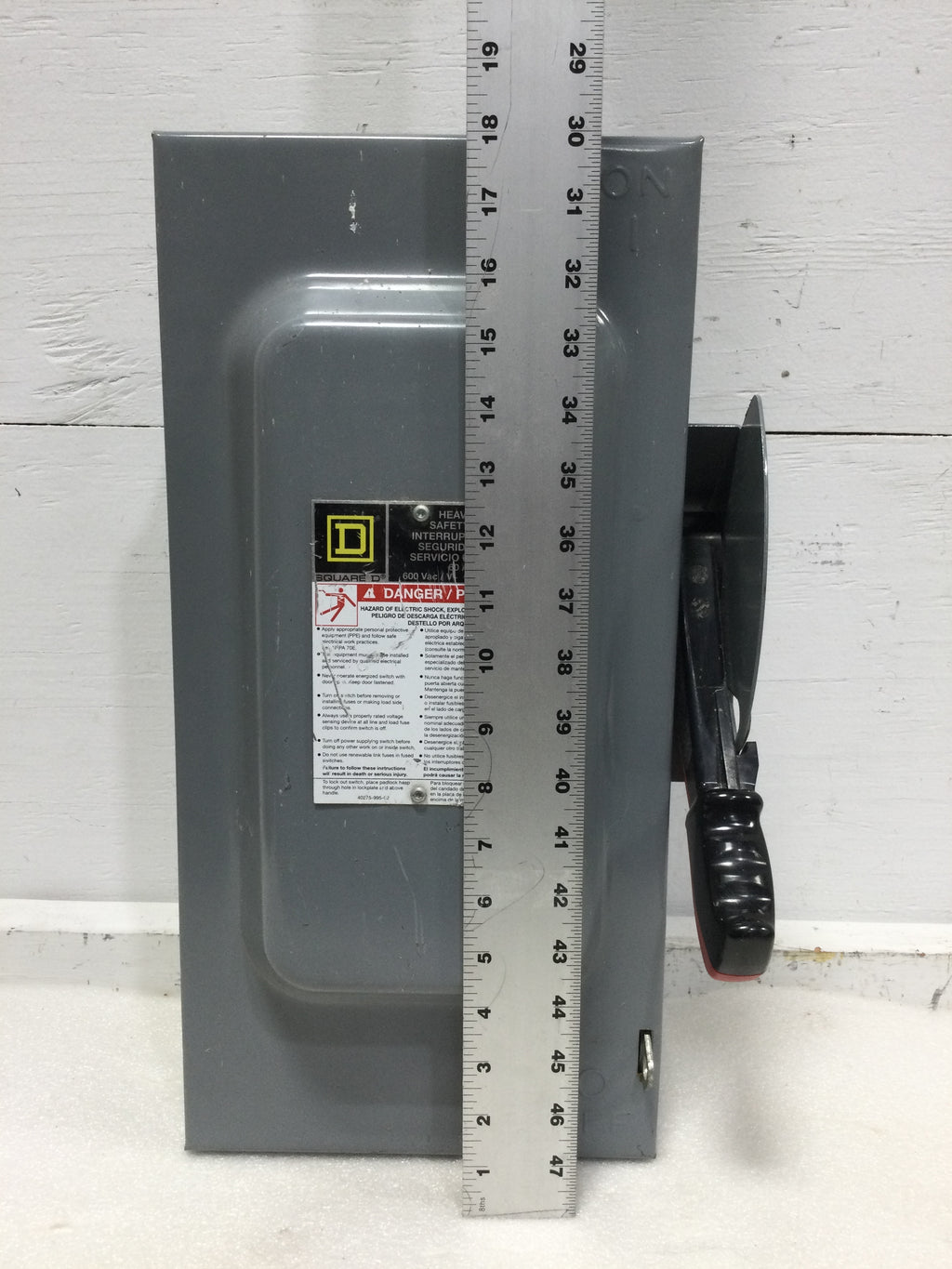

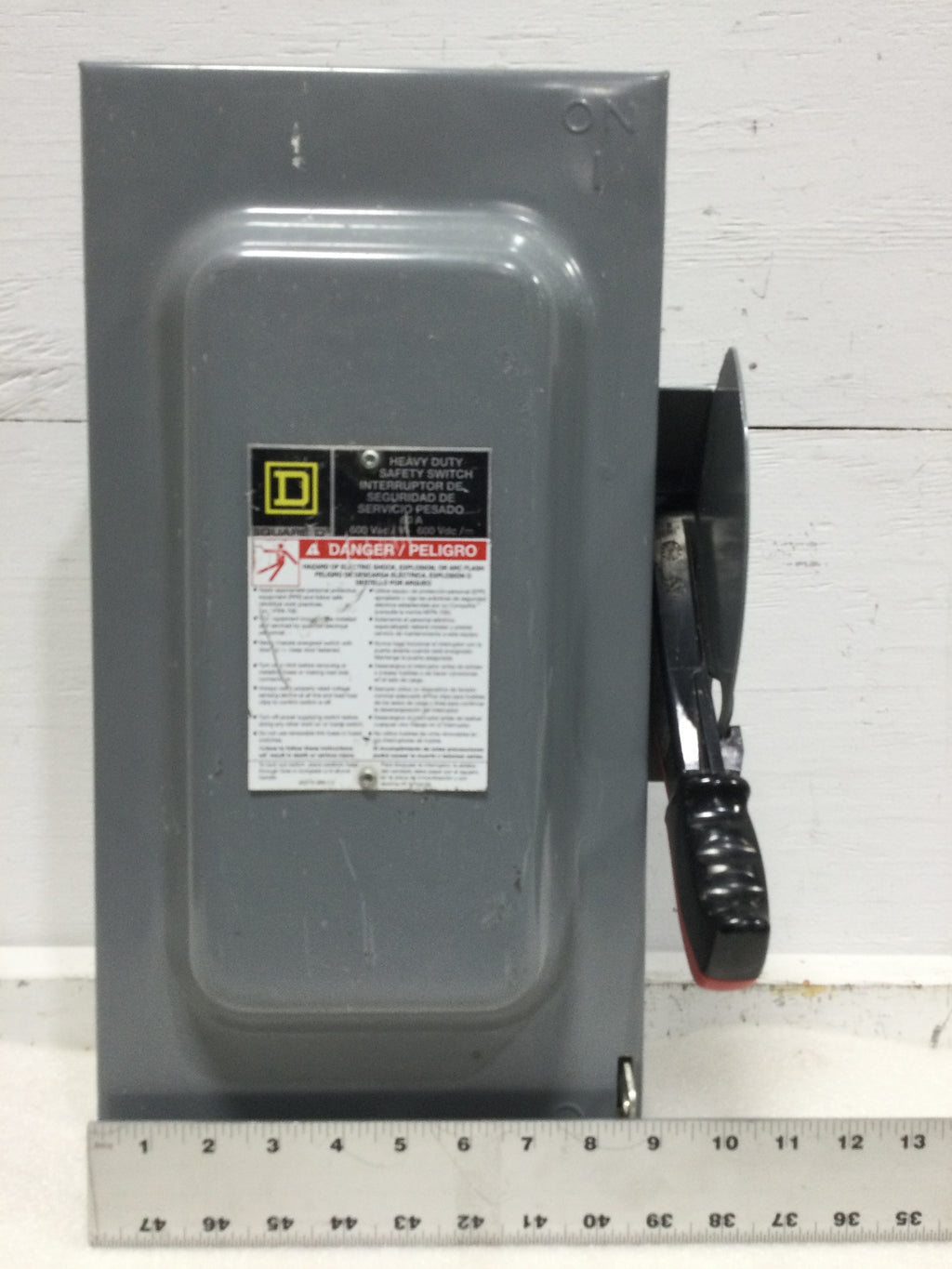

  • Dimensions:
    • Depth: 5.25 inches
    • Width: 8.5 inches
    • Height: 17.5 inches
  • Motor Power:
    • 15 hp at 480V AC (3-phase standard)
    • 30 hp at 480V AC (3-phase maximum)
    • 50 hp at 600V AC (3-phase maximum)
    • 30 hp at 600V DC
  • Fuse Types: Accepts H, J, K, L, R fuse types.
  • Duty Rating: Heavy-duty.
  • Protection: UL listed with a NEMA 1 rating of protection.
  • Mechanical Endurance: Provides significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require.
  • Operating Mechanism: Features a quick-make, quick-break mechanism.
  • Indicator Handle: Color-coded for easy identification.

  This safety switch is ideal for various applications, including indoor general purposes.
