Description

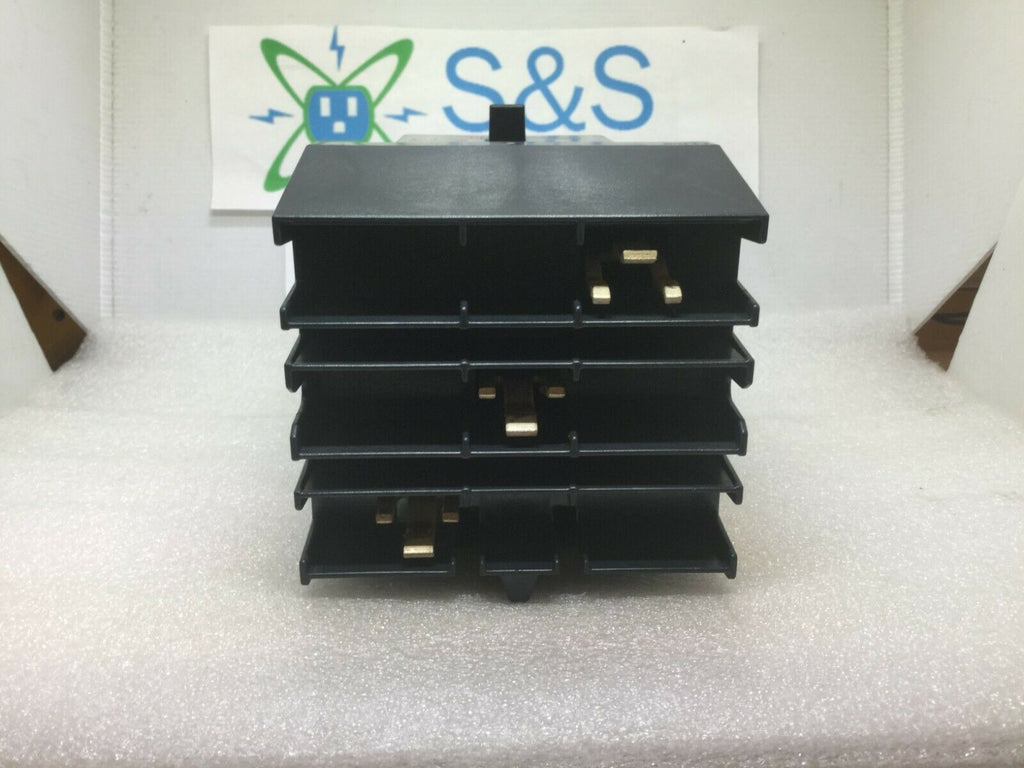

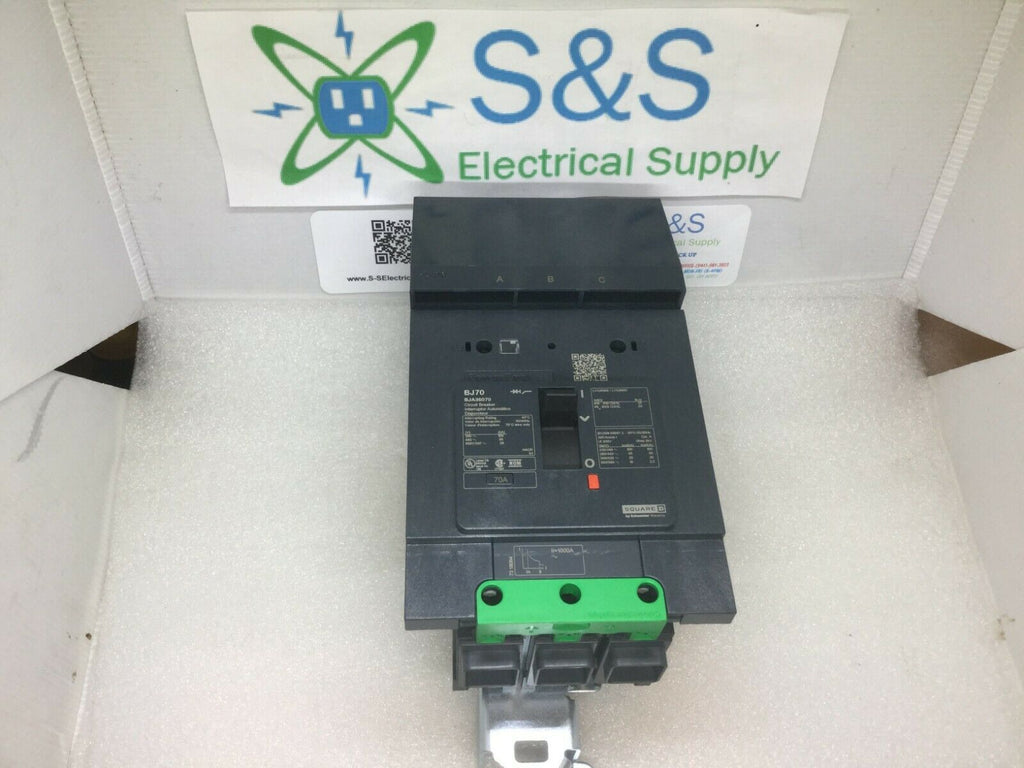

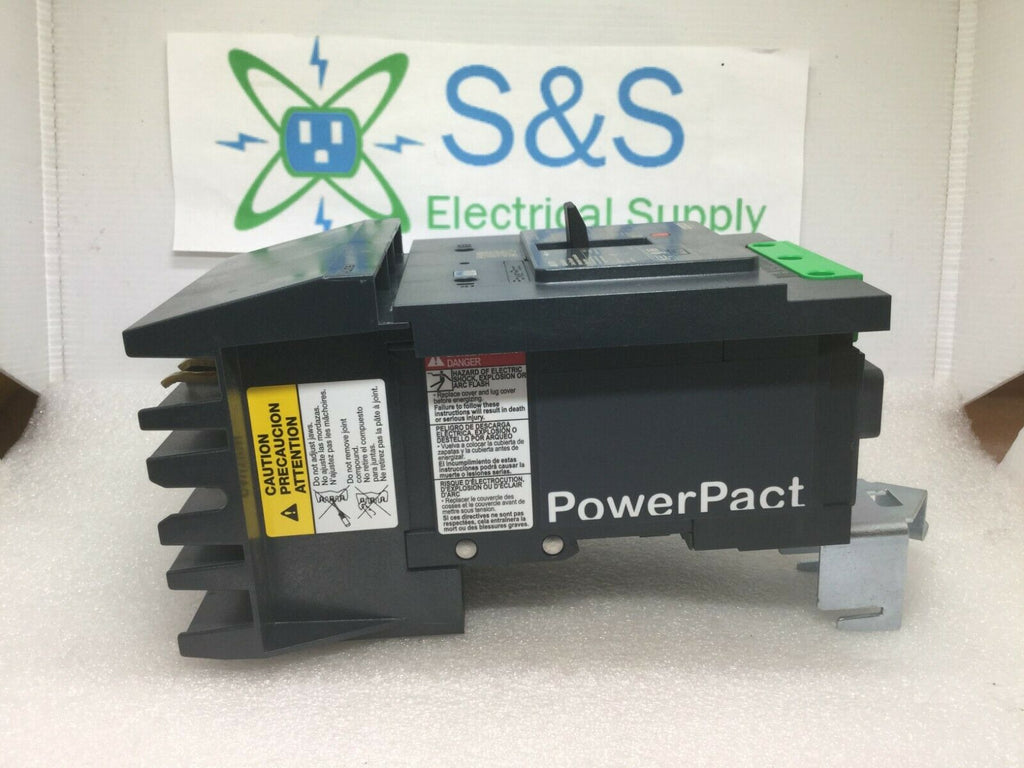

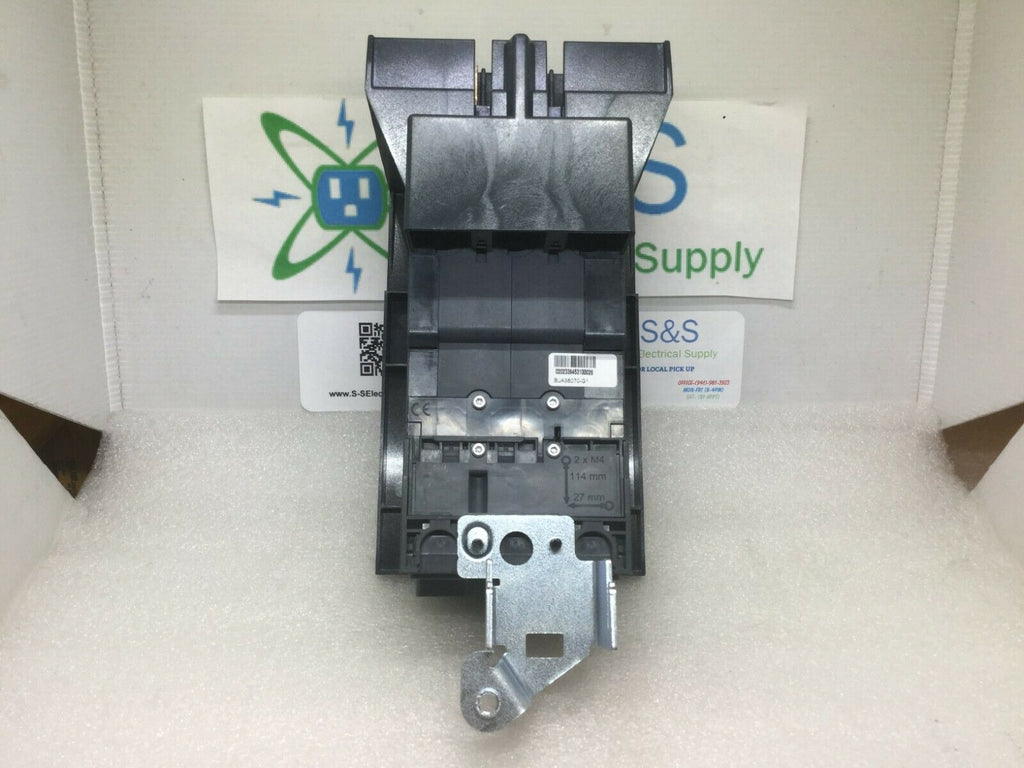

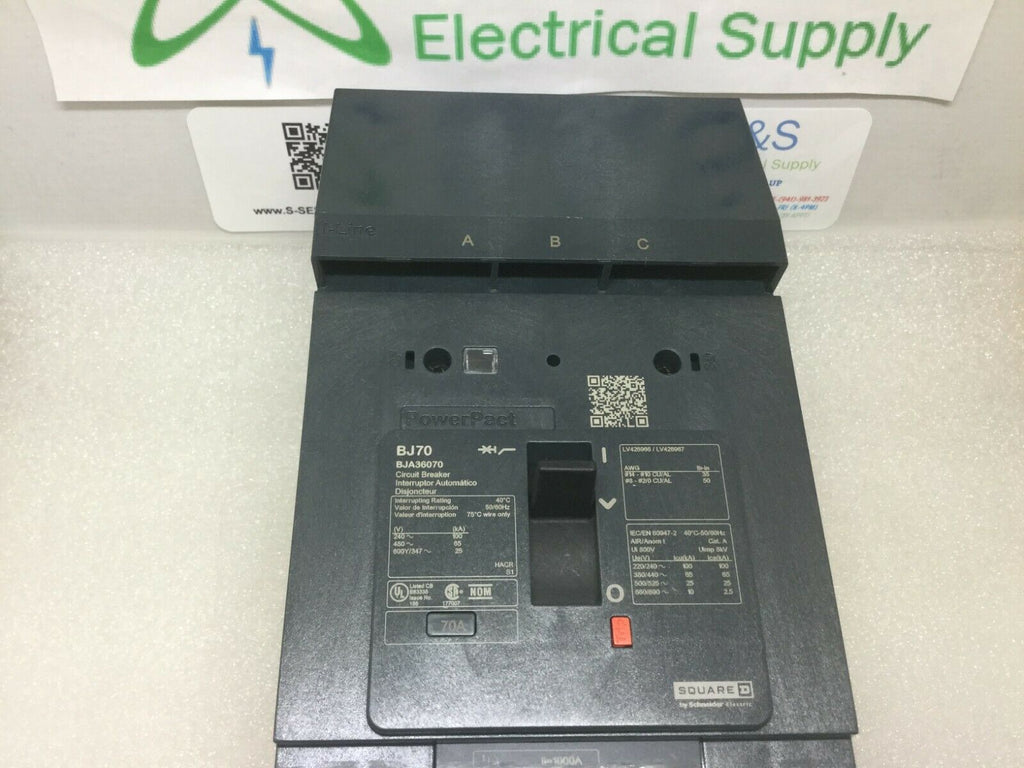

This Square D BJA36070 breaker has 3 poles, 70 amps, and 600 volts maximum AC voltage. It is thermal magnetic and has a current limiting feature, making it suitable for reverse fed applications. It also has a UL, CSA, and CE approval and is both RoHS and REACH compliant.
PRODUCT DETAILS:
- Manufacturer:
- Square D
- Amperage:
- 70
- Voltage:
- 600
- Voltage Type:
- AC
- Poles:
- 3
- Frame Type:
- BJA
- UPC:
- 606481185894
PRODUCT DESCRIPTION:
I-Line Style Plug-In
3 Phase
Long Time and Instantaneous Trip Functions
Thermal Magnetic
Powerpact
Current Limiting
Suitable for Reverse Fed Applications
Non-Interchangeable Trip
ABC Phase Connection
Thermal Magnetic Type; 3.19 Inch Width X 3.5 Inch Depth X 5.39 Inch Height Size; 347 Volt Max. AC Voltage Rating; 250 Volt Max. DC Voltage Rating; UL, CSA, CE Approval; 600 Star/347 Volt AC 50/60 Hertz, 250 Volt DC Voltage Rating; 25 Kiloamp at 600 Star/347 Volt, 50 Kiloamp at 250 Volt DC Interrupting Rating; 70 Amp Current Rating; 3 Pole(S); I-Line Connection Line Lug Load Terminal Type; B Frame Type; POWERPACT[TM] Brand; Rohs/Reach Compliant; Trip Setting 800 Amp (Hold), 1200 Amp (Trip); Mounting Type I-Line; Control Type Toggle; Terminal Wire Size 14 to 2/0 AWG (Copper/Aluminum); Continuous Current Rating 80 Percent; Phase Connection Type ABC; Operation Ambient Air Temperature Rating -13 to 158 Deg F; Application Distribution; Applicable Standard Eac, NOM, IEC, CCC, NEMA AB1, En/Iec 60947-2/60947-5-1, Nmx J-266, Gb 14048.2; BJ Model
